Summary of Contents for Satel Integra INT-KSG2R

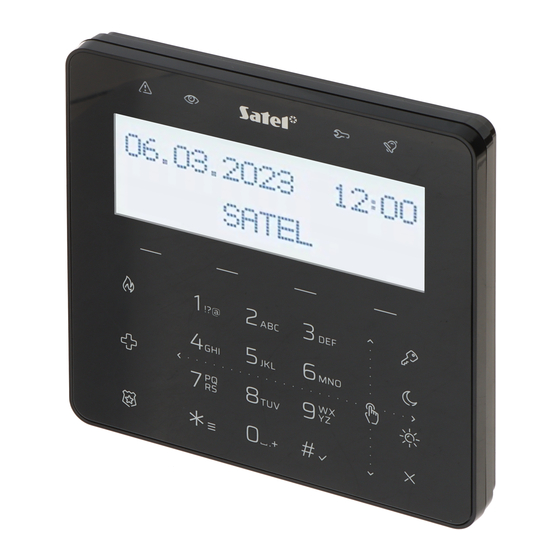

- Page 1 Keypad with touch keys INT-KSG2R Firmware version 2.02 USER MANUAL – INTEGRA int-ksg2r_oi_en 02/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. Hereby, SATEL sp. z o.o. declares that the radio equipment type INT-KSG2R is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.satel.pl/ce...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ........................2 2. LED indicators ........................2 3. Display ..........................3 4. Keys ..........................4 5. Using the touch keys ......................5 6. Macro commands ......................7 7. Keypad lock ........................8... -
Page 4: Introduction
SATEL 1. Introduction Thank you for choosing this product by SATEL. Familiarize yourself with this manual before you start using the keypad. This manual describes the keypad components and their features. For description on how to use the keypad for control panel operation, please refer to the user manual of the control panel to which the keypad is connected. -
Page 5: Display
SATEL INT-KSG2R Information about the armed status may be hidden after a time period defined by the installer. The trouble information is hidden after arming. The installer defines if the trouble information is hidden after just one of the partitions is armed in any mode or after all partitions are armed in full mode. -
Page 6: Keys
INT-KSG2R SATEL Screensaver mode When the display operates in the standby mode, the screensaver can be started: automatically (after 60 seconds of inactivity), manually (touch The installer defines the items to be displayed in the screensaver mode. This can be: ... -
Page 7: Using The Touch Keys
SATEL INT-KSG2R Functions of keys touch and hold for 3 seconds to trigger the medical alarm touch and hold for 3 seconds to trigger the panic alarm enter the code and touch to start the function selected by the installer (ask the installer which function it is) touch and hold for 3 seconds to arm the system in mode: ”full”... - Page 8 INT-KSG2R SATEL Touch and hold Touch the key and hold for 3 seconds. Swipe up Touch the keys area and slide your finger up to: scroll up the list, move the cursor up or left (depending on the function), ...
-
Page 9: Macro Commands
SATEL INT-KSG2R Swipe right Touch the keys area and slide your finger right to: enter the submenu, start a function, move the cursor right, enter the graphic mode. Swipe left Touch the keys area and slide your finger left to: ... -
Page 10: Keypad Lock
INT-KSG2R SATEL Discuss with the installer which macro commands may best help you in your daily use of the alarm system. The installer can configure up to 4 groups of macro commands. 16 macro commands can be assigned to each group. The keypad has 4 keys used to run macro commands. - Page 11 SATEL INT-KSG2R Notes .......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
