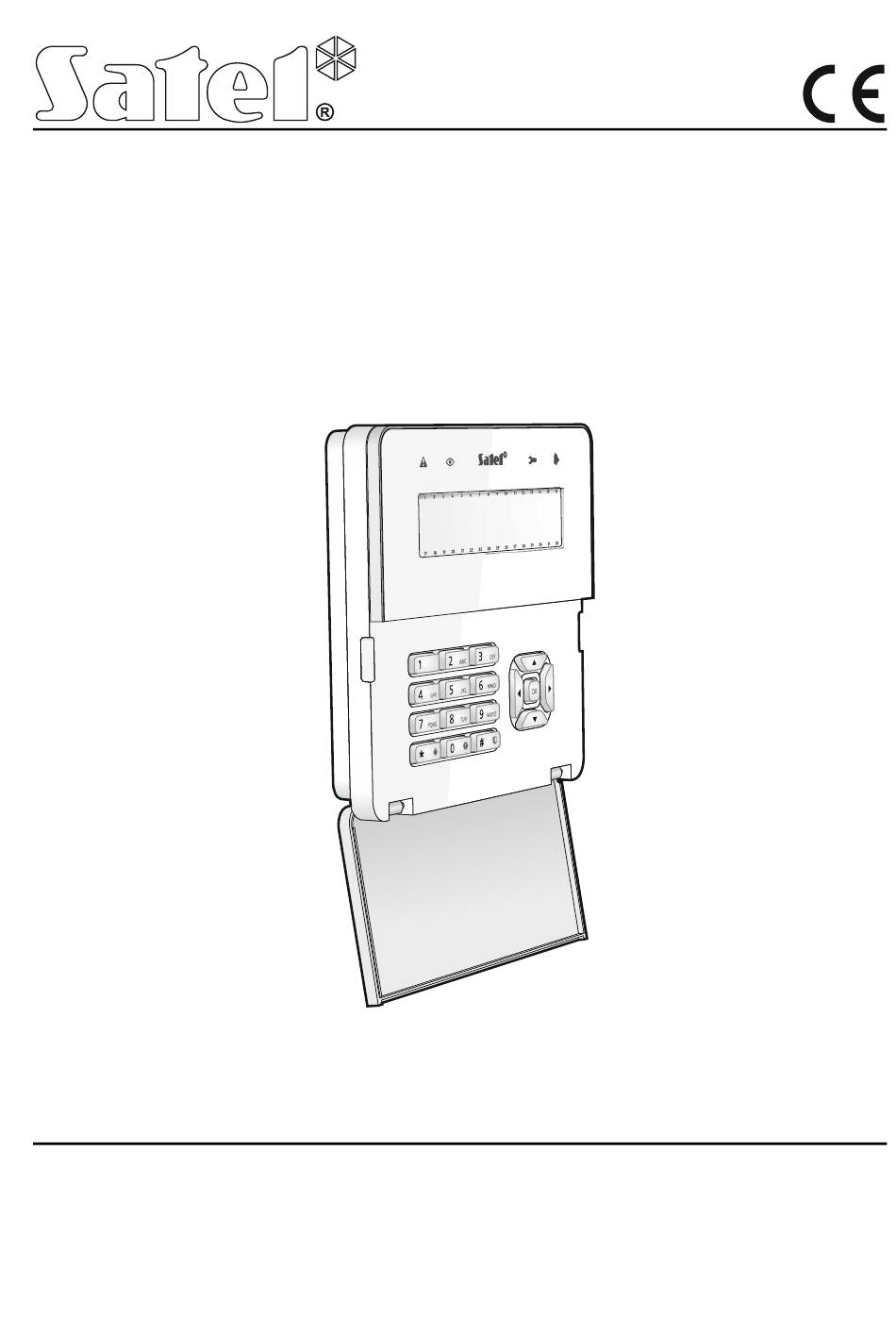

int-kwrl_en 05/18

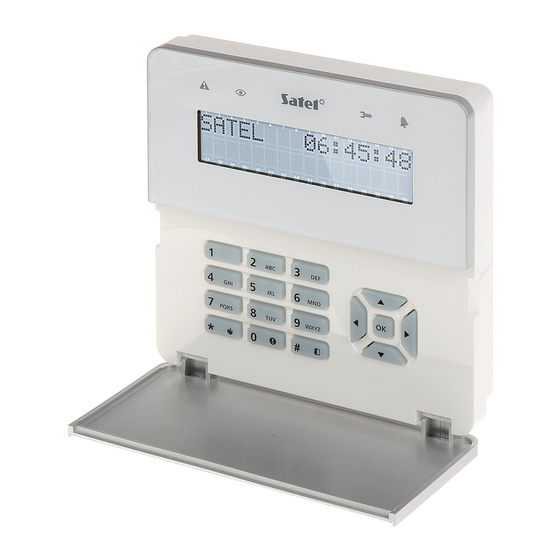

Wireless keypad
INT-KWRL
Firmware version 2.15
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the INT-KWRL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel INT-KWRL

Summary of Contents for Satel INT-KWRL

  • Page 1 05/18 Wireless keypad INT-KWRL Firmware version 2.15 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The name plate of the device is located on the enclosure base. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
  • Page 3 ACU-270 controller with firmware version 5.03 (or newer) connected to the INTEGRA / INTEGRA Plus control panel. The ACU-120 / ACU-270 controller which is to support the INT-KWRL keypad must be connected to the expander bus (controller terminals CKE and DTE) and the keypad bus (controller terminals CKM and DTM) of the alarm control panel.
  • Page 4 INT-KWRL SATEL 1. Features  Two-way encrypted radio communication in the 868 MHz frequency band.  Display 2 x 16 characters with backlight.  LEDs indicating the state of system.  12 keys, bearing designations according to telephone standard and intended for entering data.

  • Page 5: Installation

    SATEL INT-KWRL The battery life depends on how the keypad is used. The more frequently the active mode is entered, the quicker the batteries will be depleted. 3. Installation There is a danger of battery explosion when using a different battery than recommended by the manufacturer, or handling the battery improperly.
  • Page 6 DLOADX program installed, or an LCD keypad. The controller allows for registering of up to 4 INT-KWRL keypads. If no wired keypad is connected to the control panel, you can only add the first wireless keypad using the DLOADX program (to establish communication between...
  • Page 7 3.1.1 DLOADX program You can add wireless keypad in the “Structure” window, “Hardware” tab, after clicking on the name of ABAX system controller on the list of devices, and then on the “INT-KWRL” tab (see Fig. 4 p. 7). 1. Click on the “Read” button to read the data related to wireless keypads from the controller (these data are not read after clicking on the button in the main menu).
  • Page 8 LCD keypad. 4.1 Settings stored in ABAX system controller These settings you can configure:  DLOADX program: “Structure” window “Hardware” tab “Expansion modules” branch [controller name] “INT-KWRL” tab (see Fig. 4),  LCD keypad: S S H E...
  • Page 9 SATEL INT-KWRL Fig. 4. DLOADX program: keypad settings stored in the ABAX system controller. 4.2 Settings stored in the control panel These settings you can configure:  DLOADX program: “Structure” window “Hardware” tab “Expansion modules” branch [keypad name] (see Fig. 5), ...
  • Page 10 INT-KWRL SATEL Fig. 5. DLOADX program: keypad settings stored in the control panel – “Keypad” tab. Show alarms of partitions [Alarms] – the keypad can inform on burglary alarms in selected partitions. Show fire alarms of partitions [Fire alarms] – the keypad can inform on fire alarms in selected partitions.
  • Page 11 SATEL INT-KWRL Zone disabling CHIME [Chime bps. zone] – zone, which, if violated, will disable the CHIME feature for specified time. The zone 256 cannot disable the CHIME feature. Bypass time [Chime bps. time] – time during which the CHIME signal will be disabled after violation of the zone which disables the signaling (time is counted from the zone restore).
  • Page 12 INT-KWRL SATEL Additional options Silent PANIC alarm [Silent panic] – if this option is enabled, the panic alarm triggered from the keypad will be a silent one (without loud signal). Sign. alarms [Alarm signal.] – if this option is enabled, the keypad will signal the alarms audibly.
  • Page 13 SATEL INT-KWRL Volume/filter Fig. 6. DLOADX program: keypad settings stored in the control panel – “Volume/filter” tab. Volume – volume level of the beeps generated during keypad operation (key pressing, confirmation of performed operation, etc.). Volume – chime – volume level of the beeps generated after zone violation (CHIME).
  • Page 14 INT-KWRL INT-KWRL SATEL SATEL 8 – chime on/off [Chime changing] – if this option is enabled, the user can switch on/off the CHIME signal in the keypad by pressing and holding for 3 seconds the key. Fig. 7. DLOADX program: keypad settings stored in the control panel – “State inspections”...
  • Page 15 SATEL INT-KWRL Fig. 8. DLOADX program: keypad settings stored in the control panel – “User functions definition” tab. Proximity cards Card function Card read [Card close] – you can select the function executed after presenting the card. Card holddown [Card close long] – you can select the function executed after holding the card.

  • Page 16: Operation

    In the active mode, the wireless keypad works much in the same way as the wired keypad. For the way of using the keypad, please refer to the control panel user and programming manuals. The manuals are available on the www.satel.eu website. 6. Specifications Operating frequency band..............
