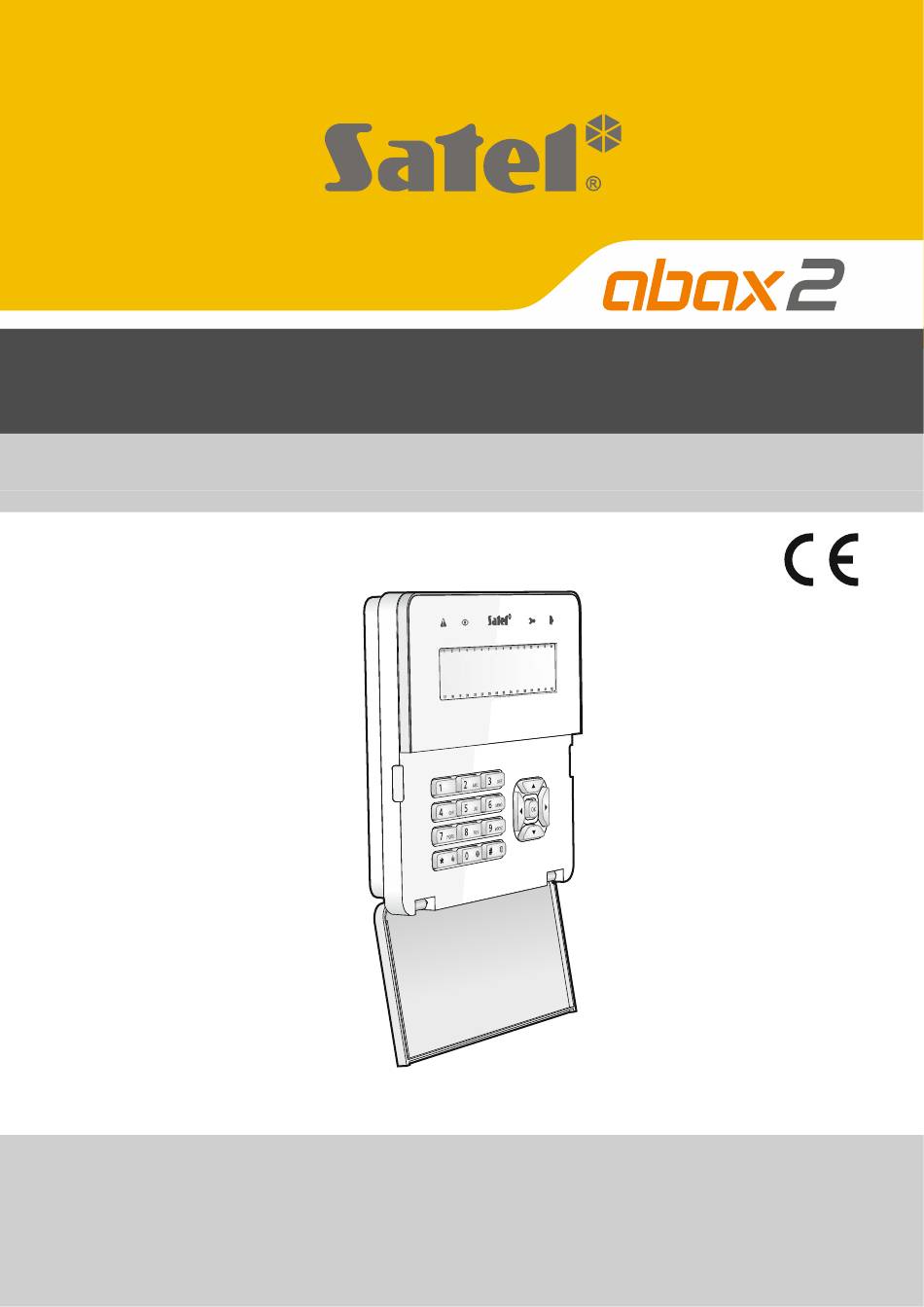

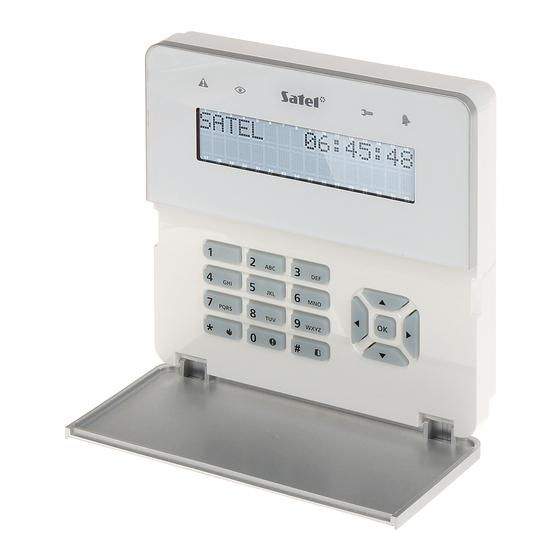

  • Page 1 INT-KWRL2 Wireless keypad Firmware version 3.00 int-kwrl2_en 04/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
  • Page 2 The name plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 The INT-KWRL2 wireless keypad enables operation and programming of the INTEGRA and INTEGRA Plus control panels with firmware version 1.19 (or newer). The device is designed for work within the ABAX 2 / ABAX two-way wireless system. This manual applies to the keypad with firmware version 3.00 (or newer), which is supported by:...
  • Page 4 INT-KWRL2 SATEL 1. Features  Display 2 x 16 characters with backlight.  LEDs indicating the state of system.  12 keys, bearing designations according to telephone standard and intended for entering data.  4 additional keys for menu navigation.

  • Page 5: Installation

    SATEL INT-KWRL2 Support for proximity cards The built-in proximity card reader enables the system to be operated by using proximity cards (any 125 kHz passive transponder in the form of a card, tag, etc.). Where the alarm system is not to be operated by proximity cards, the reader can be disabled (to prolong the battery life).
  • Page 6 INT-KWRL2 SATEL Fig. 2. Opening the enclosure. Fig. 3. Keypad enclosure inside with batteries installed. 6. Open the keypad enclosure (Fig. 2). 7. Place the enclosure base against the wall and mark location of the mounting holes. 8. Drill the holes in the wall for wall plugs (anchors).
  • Page 7 DLOADX program installed, or an LCD keypad. The controller allows for registering of up to 4 INT-KWRL2 keypads. If no wired keypad is connected to the control panel, you can only add the first wireless keypad using the DLOADX program (to establish communication between the program and the control panel, you must start the service mode “from pins”...
  • Page 8 INT-KWRL2 SATEL 1. Having started the function, enter the serial number of the added keypad. 2. Press 3. When the “Open device tamper” message is displayed, press any key on the keypad. 4. Information on the added keypad will be displayed (if nothing happens, it can mean that you have entered an invalid serial number –...
  • Page 9 SATEL INT-KWRL2  LCD keypad: “Service mode” “Structure” “Hardware” “Expanders” “Settings” [controller name] “Settings” [wireless keypad name]. 4.1.1 Description of parameters and options Fig. 4. DLOADX program: keypad settings stored in the ABAX 2 / ABAX controller. Given in the square brackets are the names of parameters and options presented on the keypad display.
  • Page 10 INT-KWRL2 SATEL 4.2 Settings stored in the control panel These settings you can configure:  DLOADX program: “Structure” window “Hardware” tab “Expansion modules” branch [keypad name] (see Fig. 5),  LCD keypad: “Service mode” “Structure” “Hardware” “LCD keypads” “Settings” [keypad name].
  • Page 11 SATEL INT-KWRL2 Keypad Name – individual name of the keypad (up to 16 characters). Partitions managed by keypad [Partitions] – partitions which can be armed/disarmed or alarm in which may be cancelled from the keypad. These functions are available to the users having appropriate rights and access to these partitions.
  • Page 12 INT-KWRL2 SATEL Alarm messages Partitions [Part.al.msg.] – if this option is enabled, messages on partition alarms are displayed (they contain the name of partition). Zones [Zone al.msg.] – if this option is enabled, messages on alarms from zones are displayed (they contain the name of zone). The zone alarm messages have the priority.
  • Page 13 SATEL INT-KWRL2 Quick control [Control (8#)] – if this option is enabled, the “Outs control” user function can be started by pressing in turn the keys (without the need to enter the user code). Tamper signaled in part. [Tamper in part.] – partition where alarm will be triggered in the event of keypad tamper, triggering the alarm from keypad etc.
  • Page 14 INT-KWRL2 SATEL 5 – alarm events memory [Alarms log] – if this option is enabled, the user can press and hold down the key for 3 seconds to view the alarms log (based on the event log). 6 – trouble memory [Troubles log] – if this option is enabled, the user can press and hold down the key for 3 seconds to view the troubles log (based on the event log).
  • Page 15 SATEL INT-KWRL2 Fig. 8. DLOADX program: keypad settings stored in the control panel – “User functions definition” tab. Proximity cards Card function Card read [Card close] – you can select the function executed after presenting the card. Card holddown [Card close long] – you can select the function executed after holding the card.

  • Page 16: Operation

    When in the wake-up mode, the wireless keypad works much in the same way as the wired keypad. For how to use the keypad, please refer to the control panel programming and user manuals. The manuals are available on the www.satel.eu website. 6. Specifications Operating frequency band..............
