BCM91250A
F B
USES AND ATTERY
Figure 8 shows the positions of fuses and the battery alpha-numerically. Compare
callouts with a description of each component in
Board ID
F1
F3
F4
F5*
BT1
* = fuse located on back side of the board
Page 16

Fuses and Battery

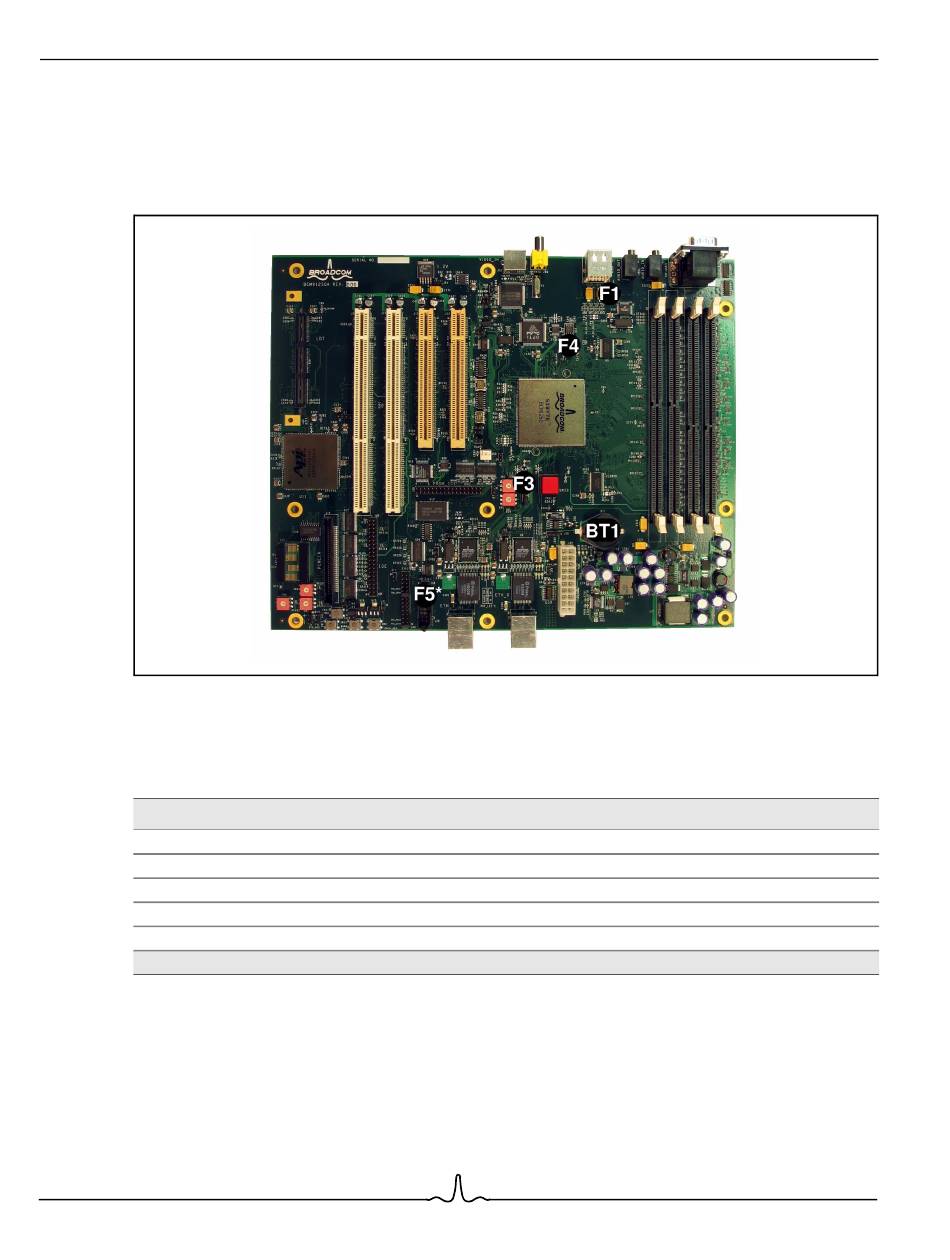

Figure 8: Fuses and Battery Callouts

Table 5: Fuses and Battery Descriptions

Function
USB 5V current limit, 1.1A
BCM1250 3.3V current limit, 1A
BCM1250 2.5V current limit, 5A
EJTAG 3.3V current limit, 500mA
RTC battery
B roadc om C or por ati on
Table 5.
User Manual
05/18/04
Figure 8's alpha-numeric
Document 91250A-UM100-R
