Desire Series by ETC
D40XTI
User Manual
v1.4
Rev A
Read entire User Manual before using equipment.
C o p y r i g h t © 2 0 1 3 E l e c t r o n i c T h e a t r e C o n t r o l s , I n c .
A l l R i g h t s r es e r v e d .
P r o d u c t i n f o r m a t i o n a n d s p e c i fi c a t i o n s s u b j e c t to c h a n g e .
P a r t N u m b e r : 7410M1250-1.4.0 R e v A
R e l e a s e d : 2 0 13 - 0 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ETC Desire D40XTI
Summary of Contents for ETC Desire D40XTI

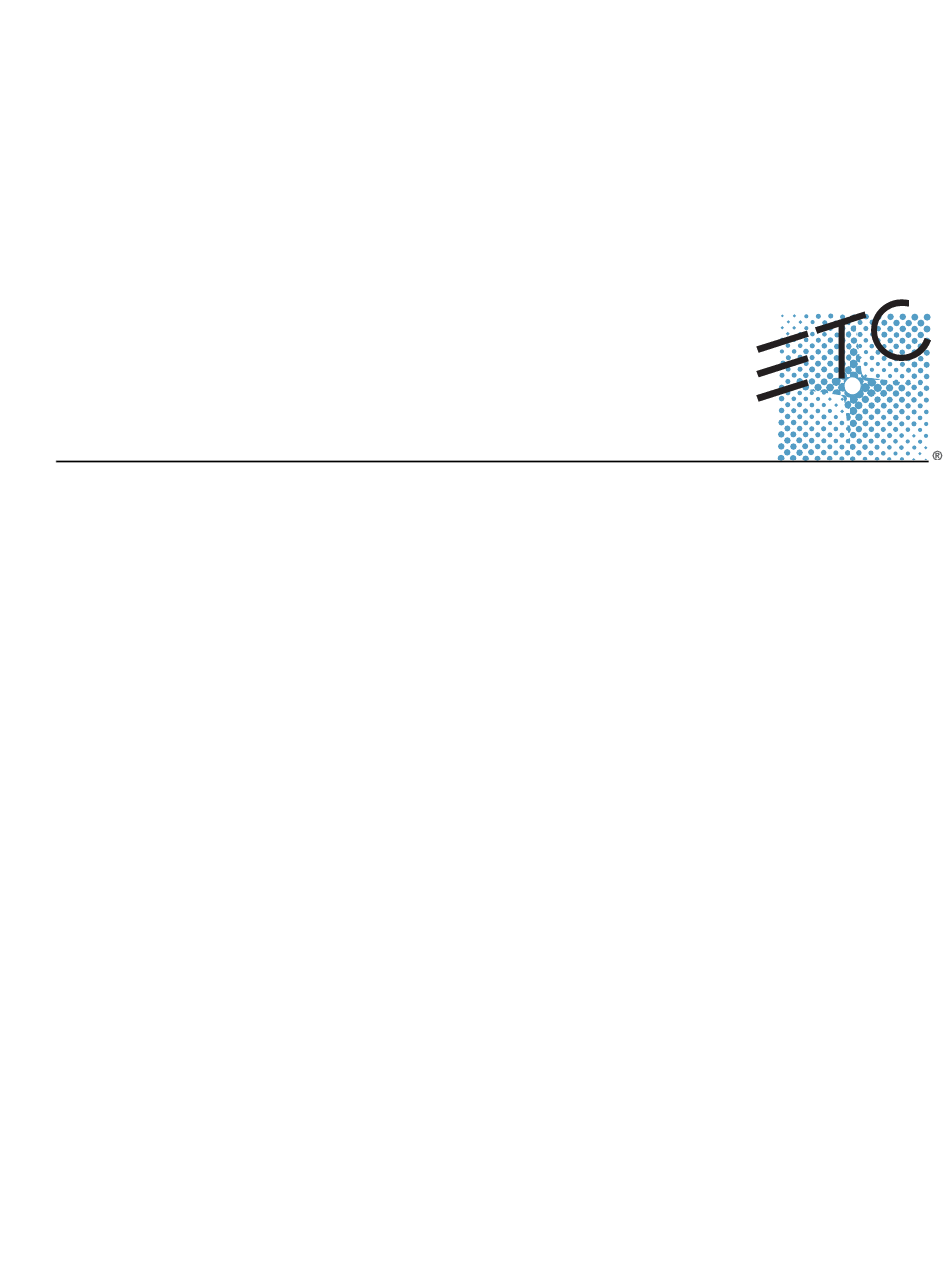

- Page 1 Desire Series by ETC D40XTI User Manual v1.4 Rev A Read entire User Manual before using equipment. C o p y r i g h t © 2 0 1 3 E l e c t r o n i c T h e a t r e C o n t r o l s , I n c .
- Page 2 E T C p e r m i ts t h e r e p r o d u c t i o n o f m a t e r i a l s i n t h i s m a n u a l o n l y f o r n o n - c o m me r c i a l p u r p o s e s . A l l o t h e r r i g ht s a r e r e s e r v e d b y E T C .
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s Introduction ......1 Quick Setups . - Page 4 Operation ......25 Overview ..........26 Gadget .
-
Page 5: Introduction

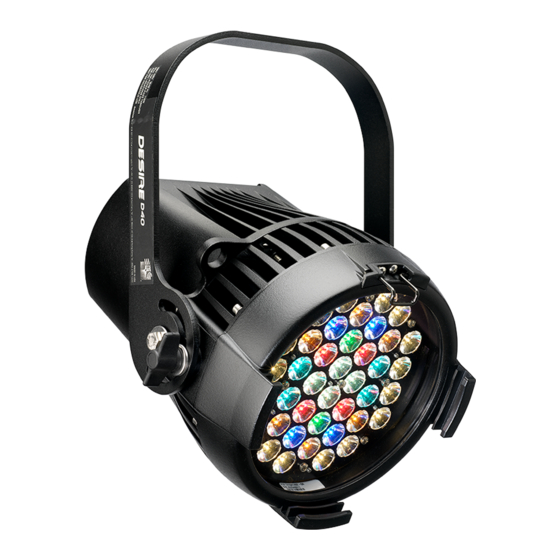

Introduction Congratulations on your purchase of a Desire D40XTI Series by ETC product. The Desire D40XTI Series is designed for permanent installations indoors or outdoors, with an IP66 rating, rugged die-cast enclosure, and noiseless fan-free operation. Up to 32 D40XTI fixtures can be linked together on one data chain. The fixtures are configured using an RDM configuration tool on a PC or an RDM console. -
Page 6: Studio Daylight, Studio Tungsten
S t u d i o D a y l i g h t , S t u d i o T u n g s t e n Some of the options include: • Multiple dimming curve options. • Presets and sequences for standalone operation. -
Page 7: Models
Models Each member of the Desire Series product line is unique and optimized for a specific lighting task. All fixtures feature narrow optics for the longest throws. Vivid • Full 7-color x7 LED array • Optimized for high-output deep pastels and strong saturated colors—an all-around workhorse for vibrant color washes Lustr+ •... -
Page 8: Compliance
Compliance The Desire D40XTI Series fixture complies with and has been tested to the following regulatory standards: • ETL Listed to UL 1598 USA / CSA C22.2 No. 250.0-08 Canada • CE EN55015:2006 + A1:2007 / EN55022:2006 + A1:2007 Class B / EN61000-3-2:2006... -
Page 9: Safety
W A R N I N G : Note the following safety warnings before use: • Do not mount the Desire D40XTI Series fixture on or near a flammable surface. • Mount and support the fixture only by the primary suspension holes in the yoke or mounting brackets. -
Page 10: Contacts
ETC web site at www.etcconnect.com. For technical questions about Desire series fixtures, contact ETC Technical Services directly at one of the offices listed below. Emergency service is available from all ETC offices outside of normal business hours. -
Page 11: Quick Start
Quick Start This section will help you to quickly use the Desire D40XTI Series fixture. For complete, detailed information and step-by-step instructions, see Operation, page I n s t a l l Step 1: Hang or mount the fixture using the provided hardware and approved hardware accessories. -
Page 12: Quick Setups
Q u i c k S e t u p s Various pre-programmed combinations of operational settings are available to quickly get you started. These settings are specifically created for different situations and are easily accessible with an RDM configuration tool or RDM lighting control device. Q u i c k S e t u p s ( V i v i d , L u s t r + , F i r e a n d I c e , S t u d i o H D ) Quick Setup Description... -
Page 13: Installation And Dmx Profiles
C h a p t e r 1 Installation and DMX Profiles This chapter contains the following sections: • Specifications........10 •... -
Page 14: Specifications
Specifications Physical • Rugged die-cast aluminum construction • Stainless steel mounting yoke • Advanced thermal management systems for long LED • Available in black (standard), white (optional), silver, or life custom colors (contact factory) • Easy-to-remove trim ring for accessories •... -
Page 15: Dimensions And Clearances
Control • DMX512-A compliant • Optional strobe channel • DMX in via 6 foot cord • Master/slave mode • RDM functionality for address and setting changes and • 15-bit virtual dimming engine for smooth, high-quality playing presets theatrical fades • Console-free presets and sequences via RDM device •... -
Page 16: Installation Clearances
C o o l i n g a n d D u t y C y c l e The Desire D40XTI Series fixture is convection cooled and can operate all channels at full power continuously in ambient temperatures up to 40°C (104°F). -
Page 17: Typical Power Consumption
T y p i c a l P o w e r C o n s u m p t i o n Vivid 100V 120V 240V Idle Power / Current 10.5W / 0.135A 11W / 0.098A 12.7W / 0.078A 100% Boost Power / Current 102W / 1.12A 98W / 0.82A... -
Page 18: Color Rendering Index And Color Quality Scale Ratings
C o l o r R e n d e r i n g I n d e x a n d C o l o r Q u a l i t y S c a l e R a t i n g s Desire fixtures are evaluated for Color Rendering Index (CRI) and Color Quality Scale (CQS) performance using measured output spectrum and optimized mix solutions for a best spectral match to black body sources at 3200K and 5600K. -
Page 19: Installation
I n s t a l l a t i o n o n a P i p e The Desire D40XTI Series fixtures can be hung from a pipe using a C-clamp. The C-clamp attaches the fixture to the mounting pipe and allows you to adjust the position of the fixture once it is mounted. - Page 20 S a f e t y C a b l e The safety cable (or other approved safety device) should be attached to the fixture housing and wrapped around the hanging structure (pipe). An appropriate attachment loop is provided on the protruding tab of the fixture housing. Take care to leave as little slack as possible in the safety cable to avoid the cable catching the yoke of the fixture.
-
Page 21: Accessory Installation
I n s t a l l a t i o n o n a P o l e A Single fixture or Twin fixture pole mount is used to attach the Desire D40XTI Series fixture to a pole. The Single fixture pole mount fits nominal 2-3/8 inch poles and the twin pole mount fits nominal 4 inch poles. -
Page 22: Installation On A Wall
Refer to D40XTI Installation Instructions for detailed information about installation. Data The Desire D40XTI Series fixture operates on a DMX control signal or as a standalone fixture. The fixture is supplied with cable that includes DMX input and thru. DMX cables should be acceptable for DMX data transmission (not microphone cable) and should follow the standard pinout. -
Page 23: Indicator Lights
DMX/RDM line must be set to OFF. Indi cator Lights The indicator lights on the back of Desire D40XTI Series fixture show the status of power input (blue), DMX input (green) and fixture errors (red). When the DMX/RDM signal is lost, the green indicator flashes. -
Page 24: Dmx Profile
DMX Profile A d d r e s s i n g Addresses must be set between 1 and 510. Each Desire fixture must be considered a separate DMX device for the purpose of DMX line-loading calculations. DMX line-loading practice dictates that no more than 32 devices can be daisy-chained together. - Page 25 Color Mixes The following table shows the color mixes for each fixture type. Color Fire Lustr+ Vivid Studio HD Warm white Red-orange — White Red-orange Cool white Amber — Amber Amber Green Green Green Green Amber — Cyan Cyan Cyan Green-cyan —...
- Page 26 N O T E : The RGB profile is optimized for maximum brightness at all settings. Sometimes small changes in RGB values may produce unexpected jumps in brightness. Shifts in brightness may be perceived during color cross fades in cues and presets. Studio The fixture produces only white-type light, which is adjustable from 2700 to 6500K.
- Page 27 P l u s 7 Plus 7 adds precision color-control channels to the HSI, HSIC, RGB, and Studio profiles. For example, HSI with Plus 7 enabled becomes a 14-channel profile. Placing channel 7 at a value over 51% activates the 14-channel profile within the fixture. The desired color and intensity is achieved by using the HSI or RGB channels as a starting point.
-
Page 28: Dmx Footprints And Channel Mapping
DMX Footpri nts and Channel Mapping V i v i d , L u s t r + , F i r e , I c e , S t u d i o H D Channel HSIC Studio Direct Intensity Color 1 Hue fine... -
Page 29: Operation
C h a p t e r 2 Operation This chapter contains the following sections: • Overview ......... .26 •... -
Page 30: Overview
Overview Up to 32 D40XTI Series fixtures can be daisy-chained on a DMX/RDM network. Each fixture can have an unique DMX address and each address can be configured separately. Also, more that one fixture can have the same address, allowing you to configure them identically. -
Page 31: Gadget
Gadget provides DMX control level output, configuration, and monitoring for RDM devices including fixtures, dimmers, and more. You can also upgrade software for most DMX-based ETC products using UpdaterAtor or Net3 Concert software. Prior to connecting Gadget, start the RDM configuration tool and apply power to the fixtures. -
Page 32: Dmx/Rdm Gateway
DMX/RDM Gateway A DMX/RDM gateway, such as an ETC Gateway, can be used to connect a PC to the DMX/RDM network so that you can configure the fixtures on the network. The Gateway can be connected directly to a PC with an Ethernet cable. For information about the Gateway, refer to the appropriate documentation. -
Page 33: Configuration
Configuration Use an RDM configuration tool to configure the Desire D40XTI Series fixtures. After you configure the fixtures and disconnect Gadget or a DMX/RDM gateway, you may control the fixtures with a RDM lighting control device. For detailed information about LED Config software, refer to the LED Configuration Software Programming Guide. -
Page 34: Led Settings
The following procedure is performed on your RDM lighting control device. Step 1: Select a starting color point for the fixture output using the standard control channels for RGB, HSI, etc. Step 2: Set the first additional channel to a value between 51 and 100% to activate Plus Seven. - Page 35 Boost Boost provides the brightest possible output, with least guarantee of consistency. This is best for applications with low duty cycles, loose brightness requirements, or where ambient temperature is low. N O T E : In all Output settings, if the fixture gets too warm and internal components approach unsafe operating temperatures, the total power to the LED array is gradually reduced and proportionate brightness levels between the various colors of LEDs are maintained as much as possible in order to preserve the overall color mix;...
- Page 36 Linear Linear has no curve. Brightness levels correlate exactly with the value of the dimming control signal. Moderate lag in response for good dimming smoothness. Linear allows quick jumps in brightness. It is best for studio lighting and applications with static scenes or looks. Quick Quick uses the standard dimming curve but with no lag or smoothing.
-
Page 37: Status Indicators
S t a t u s I n d i c a t o r s Status Indicators, which are on the back of the fixture, are on by default. Select Off to turn the Status Indicators off. Figure-2.4 Status Indicators on the back of the fixture. The status indicators are three, small, colored LEDs on the back of the fixture that indicate the status of: •... -
Page 38: Presets And Sequences
Presets and Sequences Use Presets and Sequences to run a preset color mix or a sequence of presets in a stand-alone operation. when no external control signal is connected to the fixture. Presets and sequences override Quick Setups and the Send DMX configuration. When a Preset or Sequence is stopped, the fixture or fixtures return to the previous configuration. - Page 39 V i v i d , L u s t r + , F i r e a n d I c e , a n d S t u d i o H D P r e s e t s The Desire Series Vivid, Lustr+, Fire and Ice, and Studio HD fixtures comes with 24 default configurations.
-
Page 40: Sequences
S e q u e n c e s A Sequence is a timed series of Presets. Up to 12 different Sequences may be altered for Preset selections, cross fade rate, and link time. Only one Preset within a sequence can be active at a time. -
Page 41: Rdm Commands
Appendix A RDM Commands The following table lists the RDM commands applicable to the D40XTI Series fixtures. Parameter Feature Queued RDM Parameter ID Enumerations Values Status E120_STATUS_MESSAGES — — Messages Supported See RDM E120_SUPPORTED_PARAMETERS — Parameters E1.20-2006 Parameter See RDM E120_PARAMETER_DESCRIPTION —... - Page 42 Parameter Feature Queued RDM Parameter ID Enumerations Values “Standard, LED Curve ETC_LED_CURVE “0, 1, 2, 3" Incandescent, Linear, Quick” “Standard, LED Curve ETC_LED_CURVE_DESCRIPTION “0, 1, 2, 3" Incandescent, Description Linear, Quick” “Disabled, Strobe ETC_LED_STROBE “0, 1" Enabled” “Regulated, Output Mode ETC_LED_OUTPUT_MODE “0, 1, 2"...
- Page 43 0 = 0.0 32767 = 1931 (x,y) E120_ETC_LED_CURRENT_XY 0 to 32767 coordinate Get current PWM duty E120_ETC_LED_CURRENT_PWM 0 to 32767 — cycle Get LED CIE See ETC Manf Tristimulus E120_ETC_LED_TRISTIMULUS — RDM doc values Get LED See ETC Manf E120_ETC_LED_INFORMATION — information RDM doc...
- Page 44 Web: www.etcconnect.com Copyright © 2013 ETC. All Rights Reserved. Product information and specifications subject to change. 7410M1250-1.4.0 Rev A Released 2013-04 ETC intends this document to be provided in its entirety. ...
