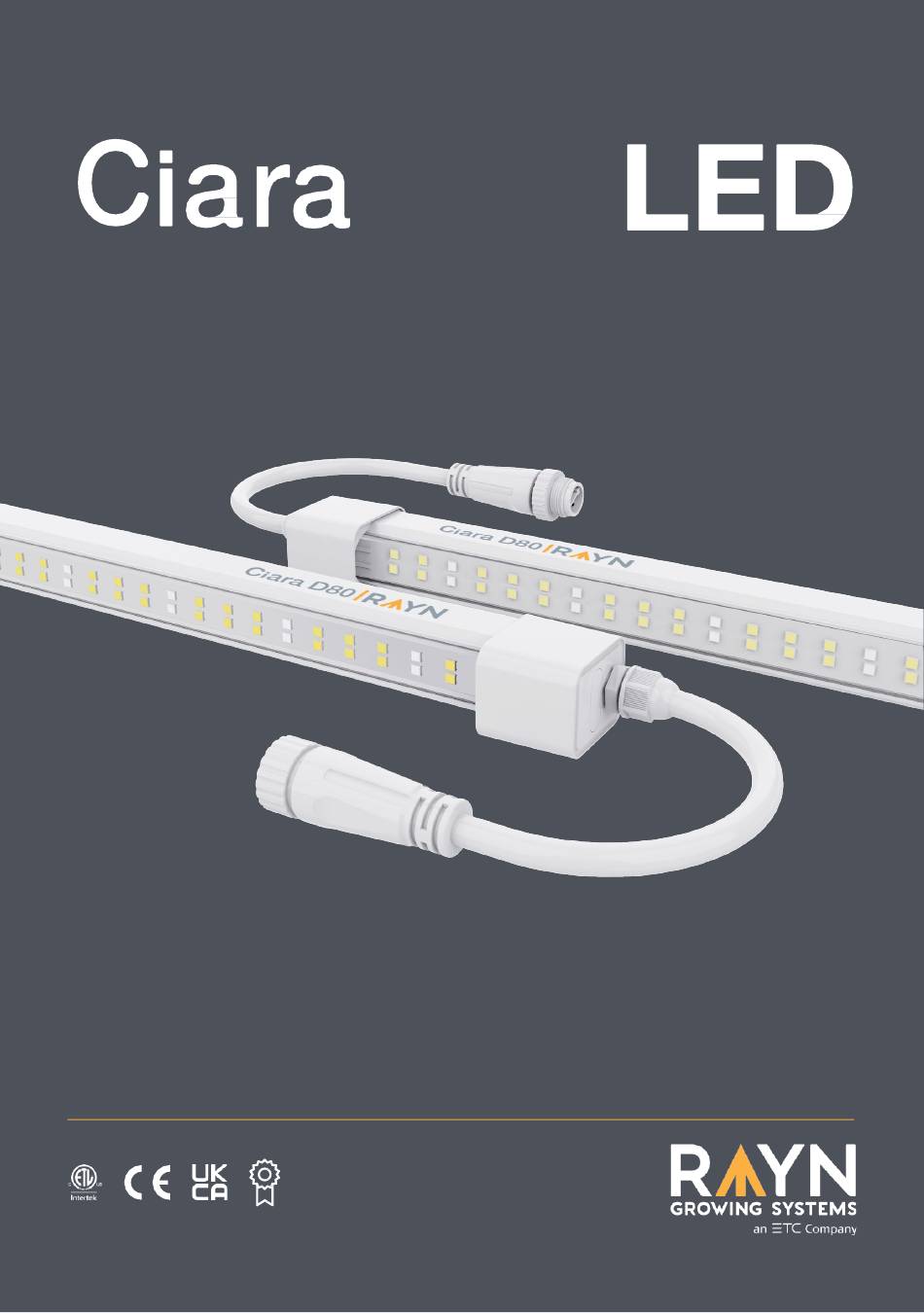

- Page 1 36 W Commercial Grow Lights User Manual Simplified grow lighting. 5-Year Limited Warranty Part Number: 7441M2100 Rev B Released: 2025-01...
-
Page 2: Safety Information
1. SAFETY INFORMATION The Ciara D80 is not user serviceable. Contact your RAYN Growing Systems provider for assistance. CAUTION: Please read the following information carefully before installing and using. 1. Check and comply with your local law and restrictions for additional safety requirements of installation and operation. -
Page 3: Key Features
2. KEY FEATURES - Two LED light fixtures (strips) included - Daisy-chain up to 36 LED strips at 277 VAC (consult your electrician for circuit limitations) - IP66 water-resistant and dustproof housing and connectors - Hanging clips and plastic tie slots for easy installation - 5-year LIMITED warranty 3. - Page 4 FR Boost µmol/s/nm Spectrum Efficacy Input Voltage Fixture Dimensions Weight Propagation 72 μmol/s 2.0 μmol/J 120 V, 208 V, 240 V, 277 V 112x2.9x3.7 cm 1.0 kg (44.1x1.2x1.5 in) (2.1 lb) Cultivation 82.8 μmol/s 2.3 μmol/J FR Boost 87.07 μmol/s 2.5 μmol/J NOTES: Spectrum is not field-adjustable.
- Page 5 4.3 DIMENSIONS 112 cm (44.1 in) 25 cm (10 in) 5. INSTALLATION Please read the following information before starting to install. Installation of this horticultural LED light fixture shall be performed by a qualified person with experience. To mount the light fixture properly, start by identifying an appropriate support structure to mount the fixture.
- Page 6 5.1 UNISTRUT MOUNTING Warning! Check the Unistrut and make sure it can support the entire weight of all light fixtures on it. Mounting with Clips Fasten the fixture in this direction.
- Page 7 Mounting with Plastic Ties Pass the plastic ties through the hole on the end. 5.2 FIXTURE CONNECTION (1) Set the first light fixture at a proper position following the steps in 5.1. Ensure the male port of the light fixture is directed outside to connect to the power cord later. (2) Optionally use the RAYN GroDim accessory (available separately) to dim up to 36 Ciara D80 fixtures in a daisy-chain.
- Page 8 (3) Connect the second light fixture to the first by plugging the male port into the female port of the first fixture. Ensure the connection is tight. Alternatively, use a fixture extension cord (model LNGE80, sold separately) to connect between the fixtures if needed.
-
Page 9: Other Information
6. OTHER INFORMATION Maintenance - Disconnect power and allow the fixture to cool down completely before cleaning. - Check the fixture regularly for dust or dirt buildup. Clean with a damp soft cloth if needed. Contamination may cause overheating and decreased performance. - DO NOT use any chemical detergents to clean. - Page 10 Ciara RAYN Growing Systems | 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 | +1 844 907 RAYN © 2025 RAYN Growing Systems | All Rights Reserved | Support support.etcconnect.com/RAYN Trademark and patent info: rayngrowingsystems.com/ip | Third-party license agreement info: etcconnect.com/licenses All product information and specifications subject to change.
