G E N E R A L I N F O R M A T I O N

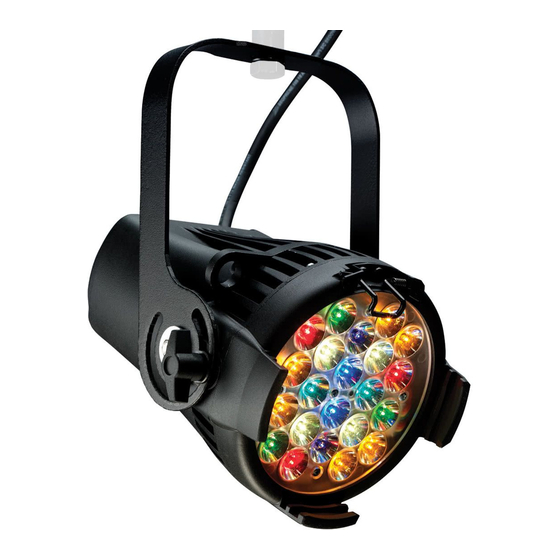

ETC's Selador Desire D22 luminaire puts the x7 Color System
a compact, round washlight. Highly efficient primary lenses and
careful color choices make the D22 fixture ideal for stage, studio,
architecture and anywhere vibrant color and high intensity are
requirements. The Selador ® x7 Color System produces the widest
range of spectrally-balanced saturated and tinted color choices
available, while the static-white options provide an impressive
punch. D22's rugged die-cast enclosure, noiseless fan-free operation,
multiple lens options, convenient size and advanced user interface
make it an ideal addition to the Desire family of LED luminaires.
D22 LED ARRAY
D22 fixtures are available with any one of the following arrays (not
interchangeable) to best suit the intended application.
• D22 Lustr+ : Optimized array with six colors plus, high-
™
intensity white LEDs to create an ideal wash fixture for full-
range color
• D22 Studio Daylight: Contains twenty-two 5600K LEDs for
high-intensity, non-variable cool-white output
• D22 Studio Tungsten: Contains twenty-two 3000K LEDs for
high-intensity, non-variable warm-white output
• D22 Studio HD: Combines warm white and cool white LEDs
for variable-color-temperature mixing. Added to this are
carefully chosen colors from the Selador x7 Color System to
fill in the white LED spectral gaps, providing the richest
variable-white light possible in an LED fixture.
D22 MOUNTING CONFIGURATIONS
D22 fixtures are available in three different mounting options to fit
any installation:
• D22 Portable: Standard yoke-mount hardware; power lead
with Edison connector and DMX in/thru connectors
• D22 Install Canopy: Standard yoke-mount and canopy
hardware; power lead with bare ends; and a permanent,
single DMX in/thru cable
• D22 Track-Yoke: Track adapter and a single, permanent cable
for both power and DMX in
O R D E R I N G I N F O R M A T I O N
into Selador D22
™
MODEL
SELD22L
SELD22D
SELD22T
SELD22H
Note: D22 luminaires ship with hanging yoke. See page 2 for connector options.
C-clamps are not included.
1 of 8
Desire
DESCRIPTION
D22 Lustr+ wash fixture
D22 Studio Daylight wash fixture
D22 Studio Tungsten wash fixture
D22 Studio HD wash fixture
D22
Series
®
