ETC Quick Guide

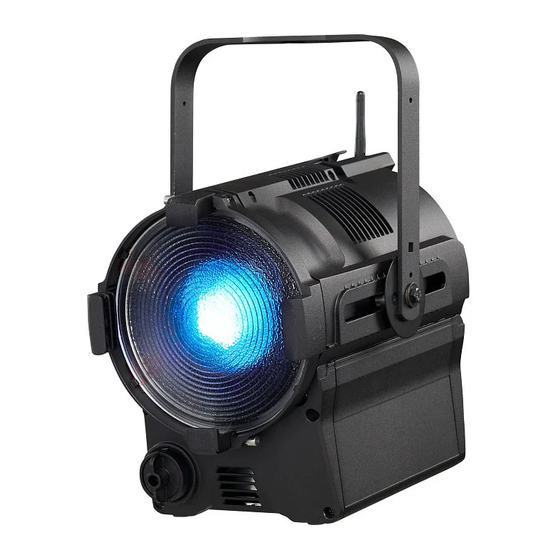

Desire Fresnel

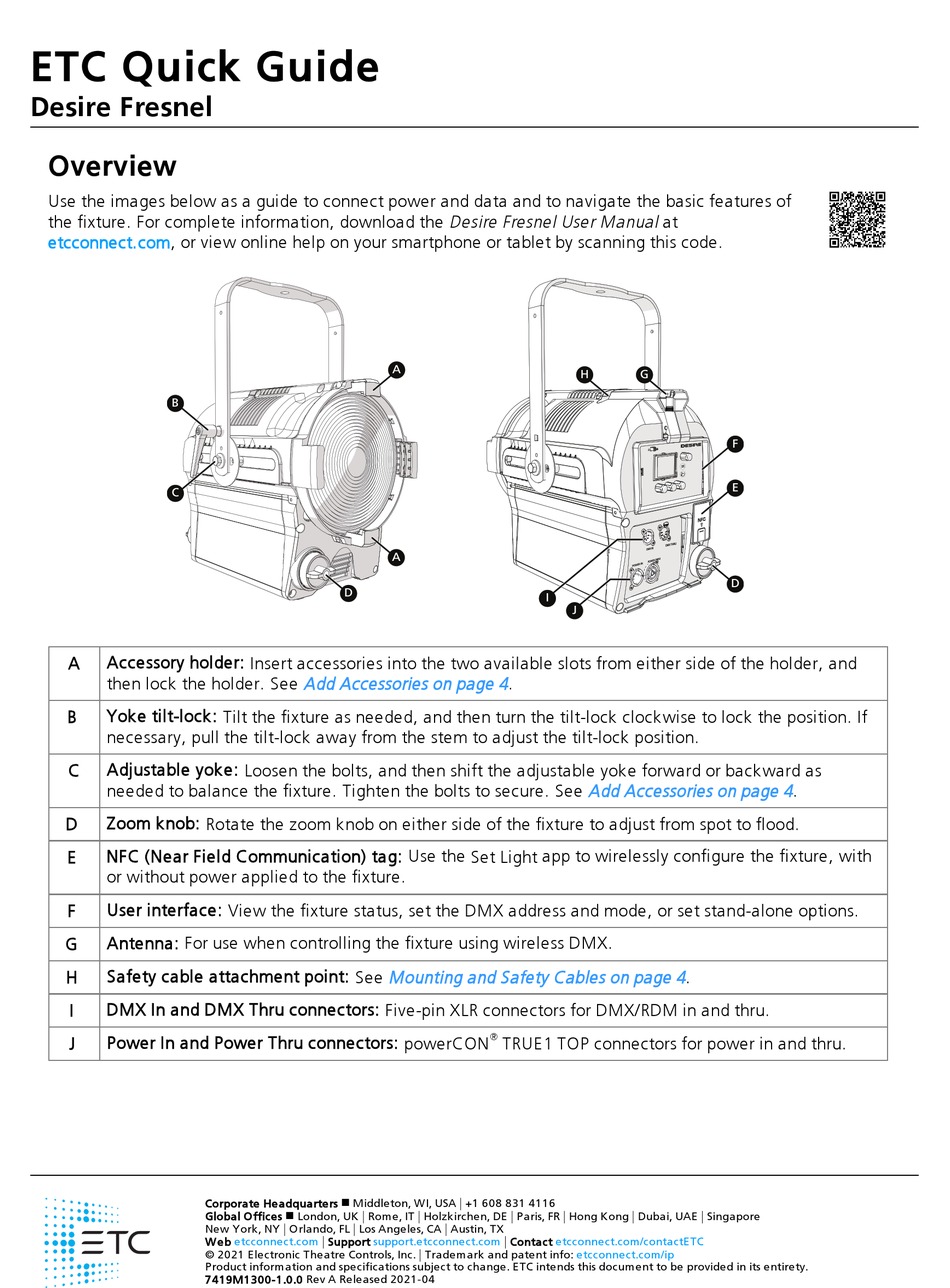

Overview

Use the images below as a guide to connect power and data and to navigate the basic features of
the fixture. For complete information, download the Desire Fresnel User Manual at
etcconnect.com, or view online help on your smartphone or tablet by scanning this code.
B
C
Accessory holder: Insert accessories into the two available slots from either side of the holder, and
A
then lock the holder. See
Yoke tilt-lock: Tilt the fixture as needed, and then turn the tilt-lock clockwise to lock the position. If
B
necessary, pull the tilt-lock away from the stem to adjust the tilt-lock position.
Adjustable yoke: Loosen the bolts, and then shift the adjustable yoke forward or backward as
C
needed to balance the fixture. Tighten the bolts to secure. See
Zoom knob: Rotate the zoom knob on either side of the fixture to adjust from spot to flood.
D
NFC (Near Field Communication) tag: Use the Set Light app to wirelessly configure the fixture, with
E
or without power applied to the fixture.
User Interface: View the fixture status, set the DMX address and mode, or set stand-alone options.
F
Antenna: For use when controlling the fixture using wireless DMX.
G
Safety cable attachment point: See
H
DMX In and DMX Thru connectors: Five-pin XLR connectors for DMX/RDM in and thru.
I
Power In and Power Thru connectors: powerCON
J
Corporate Headquarters
Global Offices
New York, NY
Web
© 2021 Electronic Theatre Controls, Inc.
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7419M1300-1.0.0 Rev A Released 2021-04
A
A
D
Add Accessories on page 4
n
Middleton, WI, USA
n
|
London, UK
Rome, IT
|
|
Orlando, FL
Los Angeles, CA
etcconnect.com
|
Support
support.etcconnect.com
H
I
J
.
Add Accessories on page 4
®
TRUE1 TOP connectors for power in and thru.
|
+1 608 831 4116
|
|
|
Holzkirchen, DE
Paris, FR
Hong Kong
|
Austin, TX
|
Contact
etcconnect.com/contactETC
|
Trademark and patent info:
etcconnect.com/ip
G
F
E
D
.
.
|
|
Dubai, UAE
Singapore

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Desire Fresnel and is the answer not in the manual?

Questions and answers

Summary of Contents for ETC Desire Fresnel

  • Page 1 Los Angeles, CA Austin, TX etcconnect.com Support support.etcconnect.com Contact etcconnect.com/contactETC © 2021 Electronic Theatre Controls, Inc. Trademark and patent info: etcconnect.com/ip Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7419M1300-1.0.0 Rev A Released 2021-04...
  • Page 2 ETC Quick Guide Desire Fresnel User Interface Address Mode 3 Ch RGB DMX Loss HLL 2 Min 1/3 Red Display: The colors of options on the display correspond to the colors of the encoders below the display ( E ) and the Intensity encoder to the right of the display ( B ).
  • Page 3 AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La source lumineuse de ce projecteur n'est pas remplaçable par l'utilisateur et ne doit être remplacée seulement par un technicien qualifié. Contactez le service client ETC pour obtenir de l’assistance. WARNING: Note the following safety warnings before use: Use the fixture in dry locations only, where humidity does not exceed 90 •...
  • Page 4 ETC Quick Guide Desire Fresnel The luminaire must be installed at least 0.1 m (4.0 in) Le luminaire doit être installé à au moins 0,1 m (4,0 po) de away from all lighted objects. tout objet éclairé. Risk of electric shock Risque de décharge éléctrique This product should not be discarded as unsorted waste Ce produit ne doit pas être jeté...
  • Page 5 ETC Quick Guide Desire Fresnel Focus the Fixture 1. Apply power to the fixture, and wait until the fixture has booted up (the ETC splash screen displays during boot up). 2. Press any encoder to "wake" the display. 3. What screen is currently displayed? DMX: Press any encoder to leave the view-only screen, and then press the Intensity...
  • Page 6 Press the Intensity encoder to toggle between the current intensity and 0%. If the fixture is connected to other Desire Fresnel fixtures that are in the same stand-alone mode, the connected fixtures will play the same preset or effect.
  • Page 7 ETC Quick Guide Desire Fresnel Select a Color Temperature 1. Press the Function button ( ), use the Intensity encoder to navigate to Studio Mode, and then press the Intensity encoder to select it. Turn to adjust intensity, press to toggle between current intensity and 0, or press and turn to adjust by 1/4 stop.
  • Page 8 ETC Quick Guide Desire Fresnel Select a Color 1. Press the Function button ( ), use the Intensity encoder to navigate to Color Mode, and then press the Intensity encoder to select it. 2. Turn the encoders to change the corresponding values. For example, turn the Intensity encoder to change the intensity value, or turn the green encoder to change the hue value.
