Jung BTS01 Instruction Manual

Condensation sensor
Condensation sensor
Art. No. : BTS01
Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
These instructions are an integral part of the product, and must remain with the end
customer.

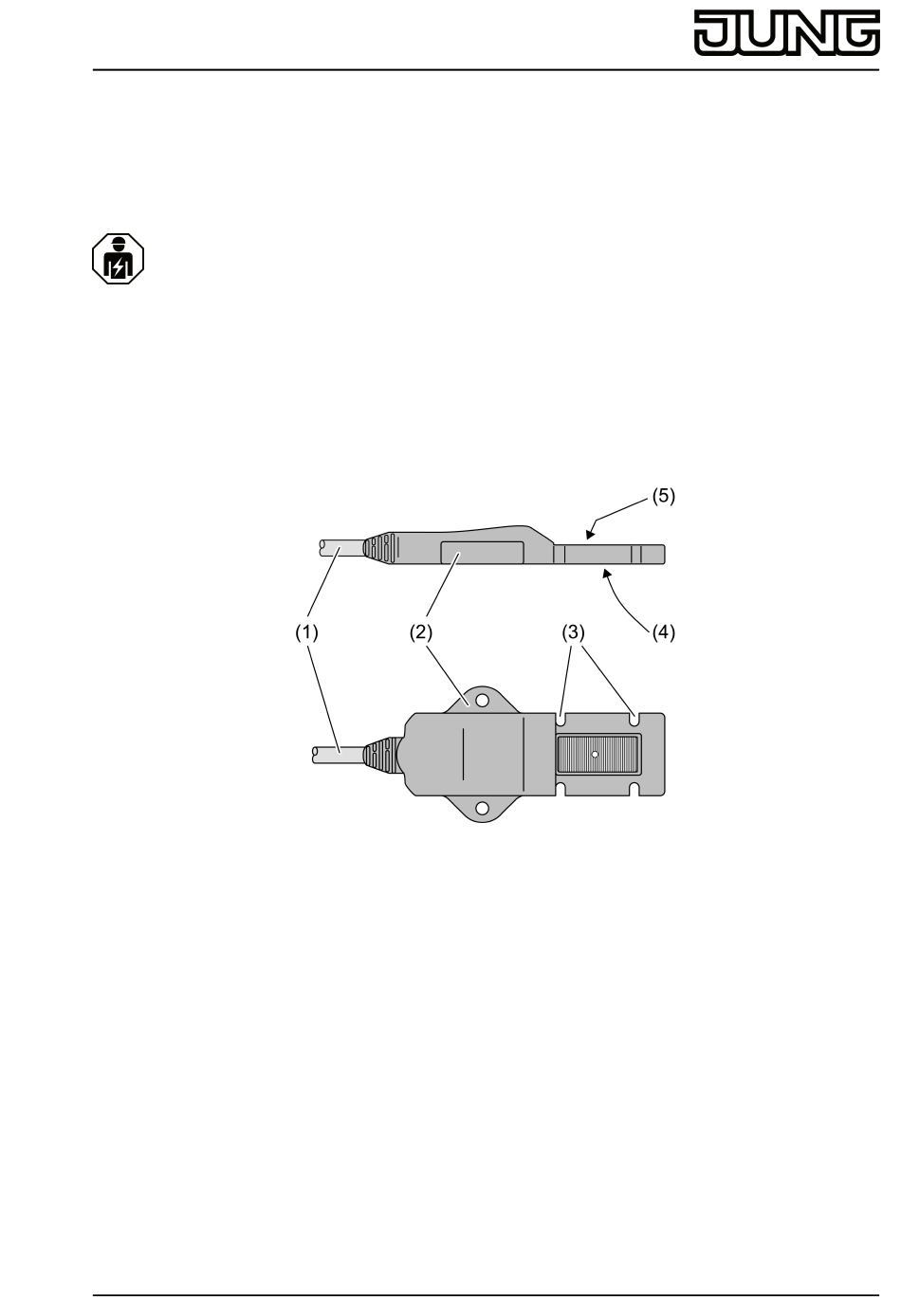

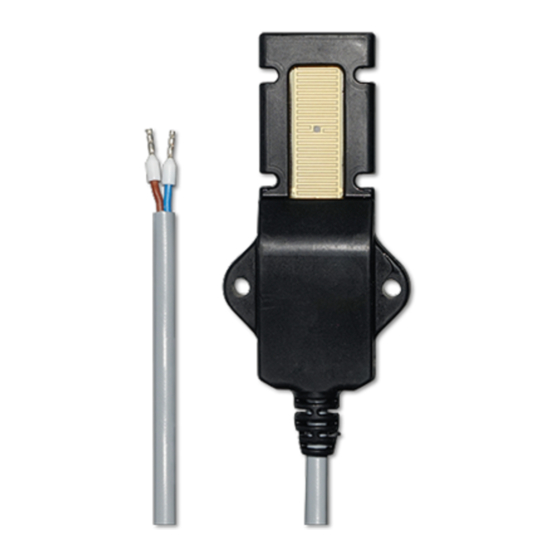

2 Device components

(1) Connecting cable
(2) Fixing strap
(3) Recession for fitting on ductwork with cable ties
(4) Recession for a thermally conducting pad
(5) Sensor surface

3 Function

Intended use
- Detection of water condensation on coolant lines in residential or functional buildings
- Connection to KNX pushbutton interfaces or similar binary inputs
- Fitting on the coolant line
Condensation sensor function
The device monitors the electrical conductivity between the conductive coatings on the sensor
surface. If it is dampened with water, the device detects the change and signals it.
82595903
j0082595903
Figure 1
1/3 25.10.2016
