Stand: Nov-08

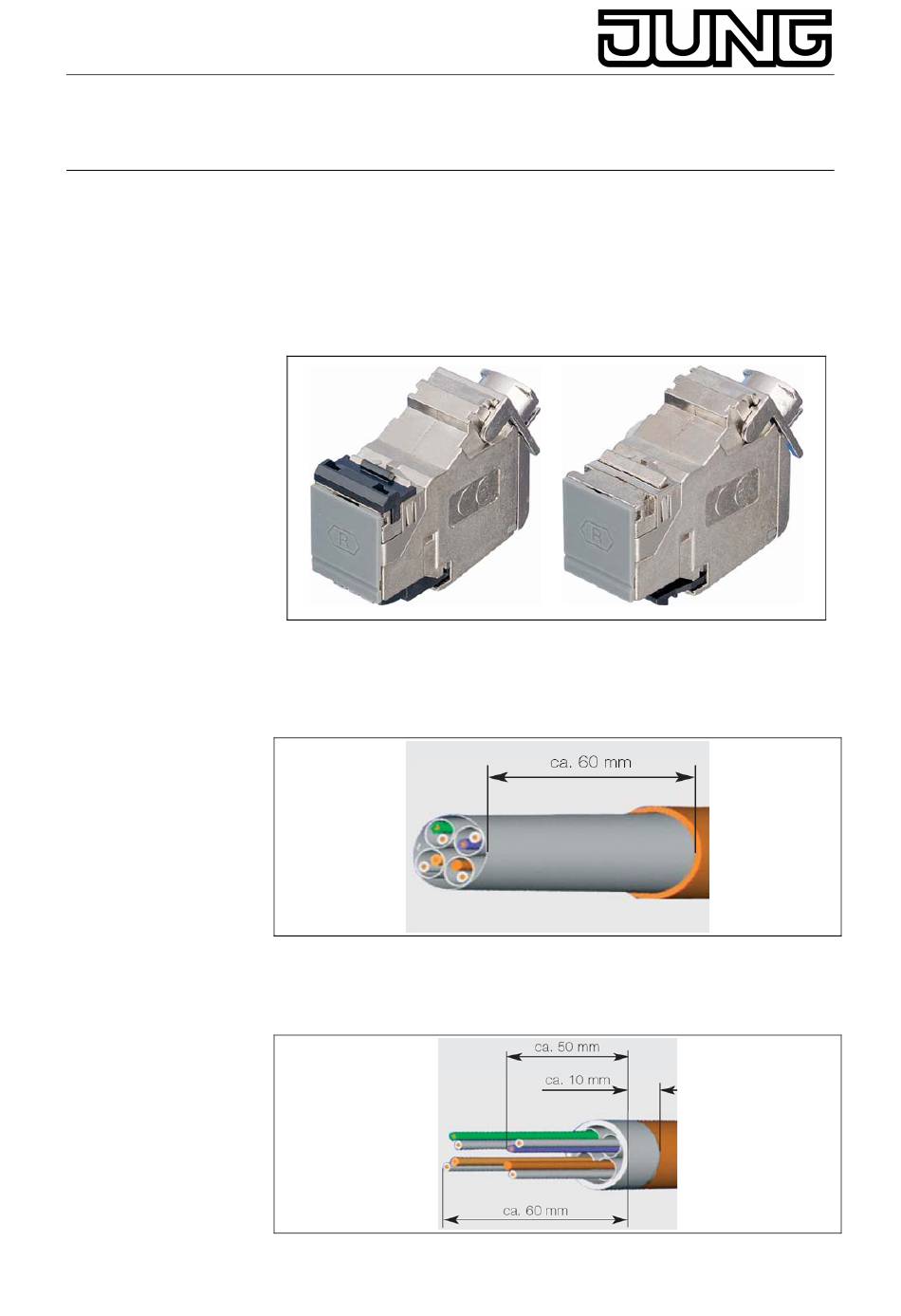

Operating Instructions
Universal modular jack socket cat. 6a,
type A
Universal modular jack socket cat. 6a,
type B
1. Mounting of the Module
1.1. Strip cable approx. 60 mm
1.2. Shorten the braid to approx. 10 mm and pull it back over the cable
jacket Shorten two wire pairs ( i. e. brown and blue) approx. 10 mm
more than the other two wire pairs for easier insertion

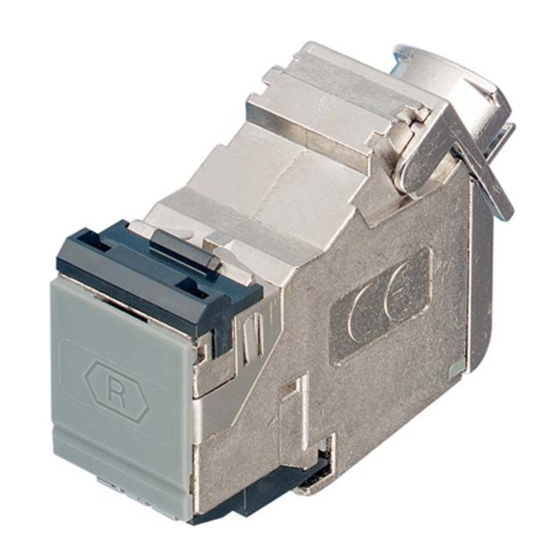

Universal modular jack socket
Ref.-no.: UMA-CAT6A
UMB-CAT6A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung UMA-CAT6A
Summary of Contents for Jung UMA-CAT6A
- Page 1 Universal modular jack socket Ref.-no.: UMA-CAT6A UMB-CAT6A Operating Instructions Universal modular jack socket cat. 6a, type A Universal modular jack socket cat. 6a, type B 1. Mounting of the Module 1.1. Strip cable approx. 60 mm 1.2. Shorten the braid to approx. 10 mm and pull it back over the cable jacket Shorten two wire pairs ( i.
- Page 2 Universal modular jack socket Ref.-no.: UMA-CAT6A UMB-CAT6A 1.3. First, lead the longer wires ( i. e. green and orange) perpendicular through the wire distributor (I.) Swivel the cable towards the spine (II.) and 1.4. Insert the cable, so that the spine (circle) lays under the cable jacket! 1.5.
- Page 3 Universal modular jack socket Ref.-no.: UMA-CAT6A UMB-CAT6A 1.6. Insert the wire distributor to the Stopp (I.) and push it down slightly (II.) 1.7. After positioning the wire distributor, insert the mounting wedge from the back and push it in 1.8. Swivel the strain relief bar to the cable jacket/-screening and press down 1.9.
- Page 4 Universal modular jack socket Ref.-no.: UMA-CAT6A UMB-CAT6A 1.10. For disassembly - Loosen cable tie - Swivel the strain relief bar to the top - Pull out mounting wedge - Use a screw driver to lift up the wire distributor and take it out...
- Page 5 Universal modular jack socket Ref.-no.: UMA-CAT6A UMB-CAT6A 2. Use of Mounting Adapter 2.1. Remove dust cover (if required) 2.2. Break dummy cover out of adapter 2.3. Hook the connected module with snap-fit (A) on top behind the cut- out edge (B) and latch it by pushing the module down (C)
- Page 6 Our products are under guarantee within the scope of the statutory provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +(49) 23 55 .
