Jung 2074 TSM Product Manual

Jung 2074 TSM Product Manual

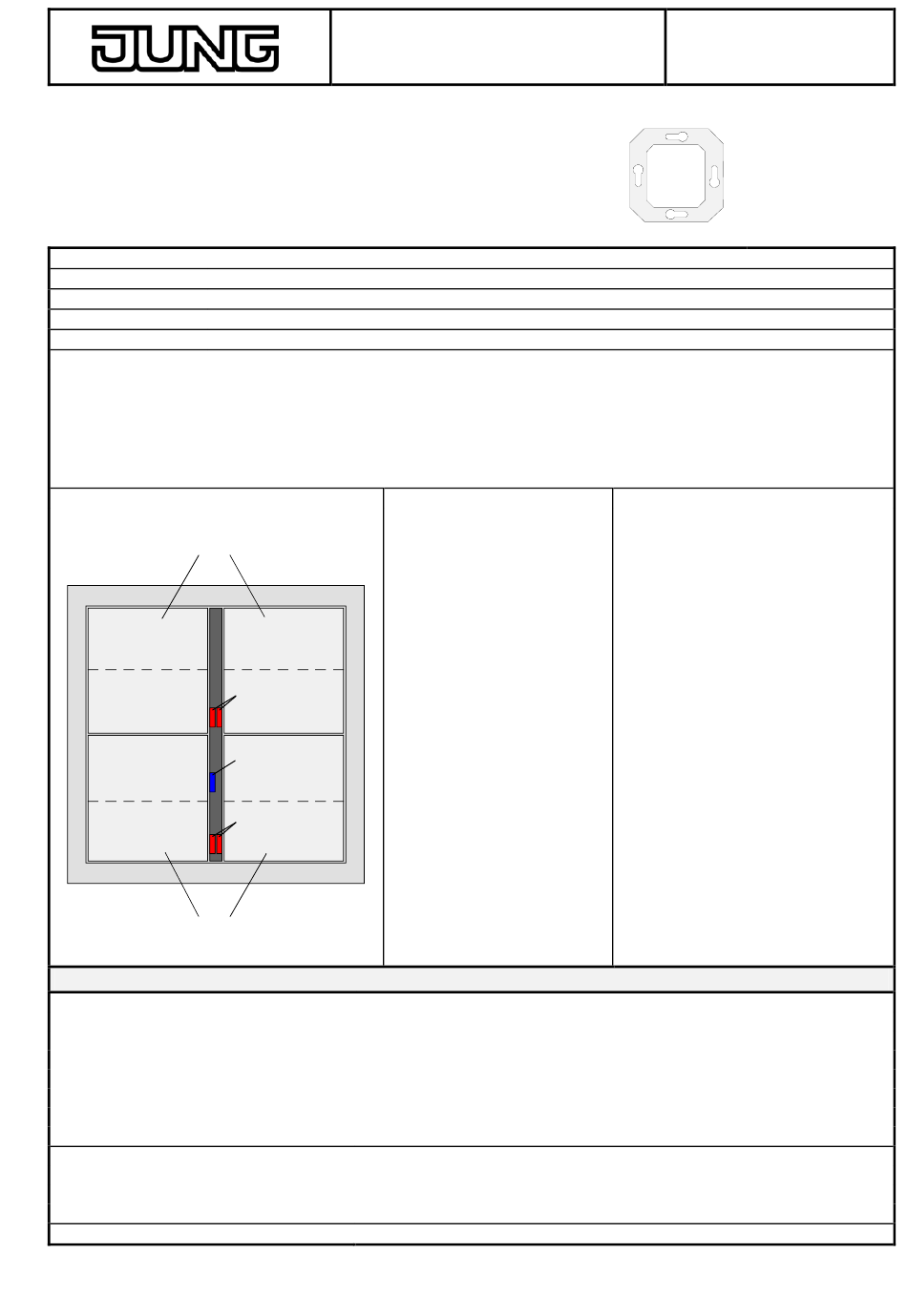

4-gang standard push button sensor
Hide thumbs Also See for 2074 TSM:

Advertisement

Quick Links

4-gang
standard push button sensor 'TSM'
Product name
4-gang standard push button sensor 'TSM'
Design:
flush-mounted (UP)
Article. no.
2074 TSM
ETS search path:
Push button / Push button 4-gang / 4-gang standard push button sensor 'TSM'
Issue:
21.09.2005
Functional description:
The 4-gang standard push button sensor 'TSM' is plugged onto a flush-mounted bus coupling unit (BCU)
(cf. connection diagram). After a press on the key, the push button sensor will transmit software-dependent
telegrams to the KNX / EIB. These may be telegrams for switching, pushbutton operation, dimming or for shutter
control. It is also possible to program value-transmitting functions such as dimming value transmitter or light-
scene extension units A blue operation LED can serve as orientation lighting.

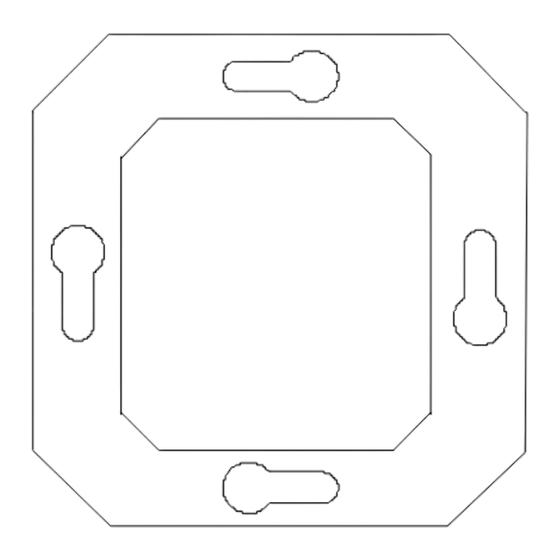

Layout:
A
1
2
5
6
A
Technical Data
Type of protection:
Safety class:
Mark of approval:
Ambient temperature:
Storage / transport temperature:
Mounting position:
Minimum distances:
Type of fastening:
KNX / EIB supply
Voltage:
Power consumption:
Connection:
External supply
product documentation
Dimensions:
Width:
Height: 70 mm
3
Depth: 7 mm (without PEI)
B
4
7
C
B
8
IP 20
III
KNX / EIB
-5 °C ... +45 °C
-25 °C ... +70 °C (storage above +45 °C reduces the lifetime)
any
none
plugging onto flush-mounted (BCU 1)
21 – 32 V DC (SELV) via flush-mounted BCU
typically 150 mW
2 x 5-pole pin contact strip
---
KNX/EIB
Controls:
70 mm
A: 4 rockers (keys 1 to 8: key-press
(without frame)
(without frame)
B: 4 status LEDs (red), one per
C: 1 operation LED (blue)
Page: 1 of 15
Sensor
on upper and lower half of
respective rocker)
The device is operated with the
corresponding push button
sensor module covers. The
covers must be ordered
separately:
4 x FD..904 TSA..
Covers with article nos.
FD..90x TSA NA.. can be
labelled. For labelling,
commercial-grade foils can be
printed with the JUNG inscription
software and inserted into the
keys.
rocker
Hardware description
