Summary of Contents for Jung TK AS AL 114
-

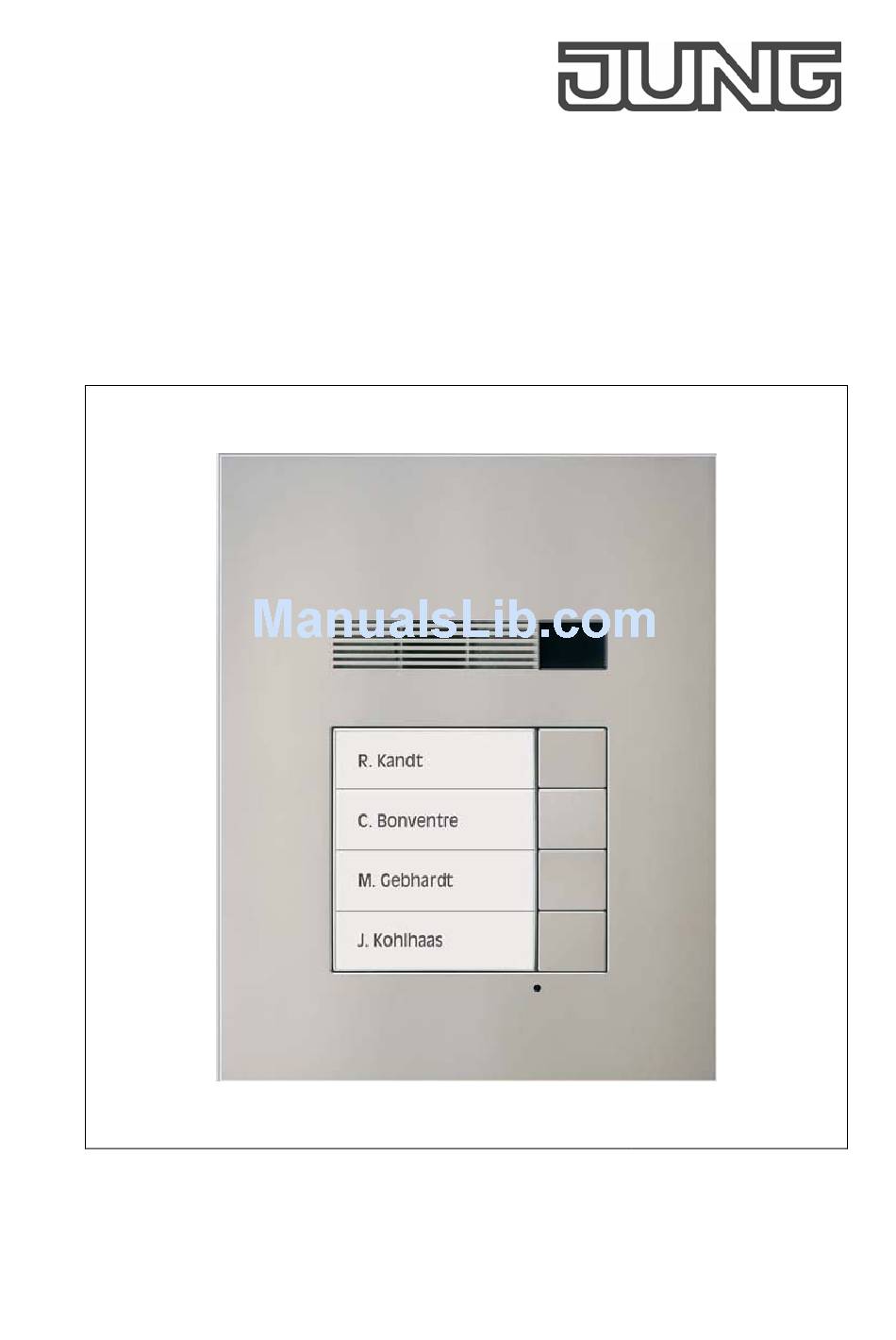

Page 1: Product Information
Product Information DCM Outdoor station 1 to 4-gang 2 to 8-gang TK AS AL 114 WW TK AS AL 128 WW TK AS AL 114 TK AS AL 128 TK AS ES 114 TK AS ES 128 ALBRECHT JUNG GMBH & CO. KG Phone +49.2355.806-0... -
Page 2: Table Of Contents
Table of content Safety instructions........................2 Application / Brief description....................4 Application........................4 Brief description........................4 Device overview........................5 Wiring and installation......................6 Wiring example.........................6 Connecting diagram ......................7 Possible connection for a door release relay..............7 Installation ........................8 Commissioning ........................11 Acoustic and optical signals, pressing buttons ...............11 Setting the button layout ....................12 Bell button programming....................14 Basic principle ........................14... - Page 3 Assembly, installation, and commissioning must only be carried out by a qualified electrician! For work on systems with 230 V AC mains current the safety requirements of DIN VDE 0100 must be observed. When installing DCM BUS systems the general safety rules for telecommunication sys- tems in accordance with VDE 0800 must be observed: •...
-
Page 4: Application / Brief Description
• brightness threshold adjustable • programming possible without access to flats • connection: 3-wire-technique • electret capacitor microphone • audio and video stations can be combined in the same installation • inscription fields can be labelled with the JUNG labelling tool (www.jung-label.de) -
Page 5: Device Overview
Device overview Faceplate Loudspeaker Light sensor Screw Inscription plate illumination Plug-in position for Mounting hole bell button Cover switch Terminal description Terminals Pluggable EEPROM- Cable entry board Screw Microphone hole Bell button Fig: TK AS AL 114, without inscription plate... -
Page 6: Wiring And Installation
Wiring and installation Wiring example 2-wire technique Please observe cable length and loop resistance. Indoor station Floor bell button Indoor station Floor bell button Outdoor station Power supply & control unit Door release relay and illumination... -
Page 7: Connecting Diagram
3-wire technique Please observe cable length and loop resistance. Indoor station Floor bell button Indoor station Floor bell button Outdoor station Power supply & control unit Door release relay and illumination Connecting diagram Possible connection for a door release relay Please use door release relay TK TR 24 EB. -
Page 8: Installation
Installation Flush mounted housing • Fasten the 4 delivered short hexagon screws (1) with a hexagon key. • Shut the unused cable entry holes with the delivered dummy plug. • Put the wires through the selected cable entry hole (2). •... - Page 9 Install faceplate • Put the wires through the cable entry of the faceplate. • Fasten the device with the delivered screws (1) and (2) into the installation frame. • Put the bell button covers onto the plug-in position as required. Observe the top and bottom edge of the cover.
- Page 10 Inscription field • Put the labelled inscription foil (2) into the inscription field (1). inscription field inscription foil gasket • Close the opening with the gasket (3). Pay attention of the gasket position. Closing the device • Put the nameplate with the upper edge into the housing and snap the bottom edge into place.
-
Page 11: Commissioning
Opening the device • Slide the opening tool into the slit under the nameplate until it engages. • Pull the opening tool out of the device together with the nameplate. Opening tool Commissioning • Install all of the devices of the system completely. •... -
Page 12: Setting The Button Layout
Setting the button layout The button layout can be configured using the DIP switch. To set the button layout, DIP switch 8 must be in the OFF position. If the button layout is not set for 1-gang and 2-gang buttons, there will be mal- functions during operation. - Page 13 Button layout: Setting the DIP switches Each DIP switch corresponds to one of the three or seven gaps between two plug-in positions. If a button covers an gap, the switch must be set to If configured completely with 4-gang buttons, all DIP switches must be in the OFF position.
-
Page 14: Bell Button Programming
Bell button programming Basic principle • All of the devices on the DCM BUS have a unique serial number. • When a bell button is programmed, the serial number of an indoor station is assigned and saved in the EEPROM of the outdoor station. 1 or 2 indoor stations (serial num- bers) can be assigned and triggered with each bell button. - Page 15 By means of floor button (indoor station is not accessible) Press floor button briefly two times Press button briefly ... a positive acknowledge tone in succession, a ring tone is sounds at the outdoor station and a sounded each time ring tone sounds at the indoor station Repeat steps until all bell buttons have been programmed Finishing...
-
Page 16: Programming A Second Indoor Station To A Bell Button (Parallel Call)
Programming a second indoor station to a bell button (parallel call) The parallel call triggers 2 indoor station from one bell button of the outdoor station. The floor button only triggers the hard-wired indoor station. To give the bell button and floor button the same functionality, the parallel function must be used. -
Page 17: Deleting The Programming
Finishing press briefly LED lights up Outdoor station in idle mode Programming mode of the system is switched off 1) If instead a programming block tone is audible, the outdoor station has been given a programming block. The programming block can only be cancelled using the commissioning tool. Deleting the programming Before a bell button can be programmed, an existing programming has to be deleted. -
Page 18: Parameters
Parameters Factory Can be set with Can be set with Settable parameters pre-setting the commissioning DIP switch tool OS address not blocked Communication time 60 s Door release time Acknowledge tone type Standard Acknowledge tone volume medium Voice volume medium Programming block on/off Light switching function via the door release function of the indoor stations on/off... -
Page 19: Setting Parameters With Dip Switches
Setting parameters with DIP switches 1. Select parameter Set DIP switches 1, 2 and 3, that the parameter to be changed has been selected. 1 2 3 (see Fehler! Ungültiger Eigenverweis auf Textmarke.). 2. Set value Set switches 4, 5 and 6 in accordance with the 4 5 6 desired value. - Page 20 DIP switch table for parameter setting Parameter OFF OFF OFF Total volume MIC/LSP (Vol) ON OFF OFF Acknowledge volume (AVo) OFF ON OFF Door release time (DRt) ON OFF Communication time (Cot) OFF OFF ON Automatic light switching threshold (ALT) ON OFF ON Nameplate illumination threshold (NIT) OFF ON...
-
Page 21: Labelling The Nameplate
Labelling the nameplate Use the JUNG labeling tool to label the nameplates of your outdoor stations. You will find it at the following Internet address: www.jung-label.de. 1. In the "Template" field, select the ref.-number of your outdoor station, e.g. TK AS AL 114 A WW. Arrange the template to suit your requirements. -
Page 22: Explanation Of Terms And Definitions
Explanation of terms and definitions AS address Every outdoor station is assigned with an outdoor station address. The address enables the differentiation between the various installed outdoor station. Selective communication or door release of e.g. main- or side entrance can be realised. Ready for operation Incoming door call - You can hear a ring tone and the LED at the communication button flashes. -
Page 23: General Notes On The Wiring In Dcm Audio Systems
Talking mode A communication between indoor and outdoor station will be acti- vated by means of pushing the communication button. Die LED of the communication button is illuminated. The LED of the communication button is flashing, when another in- door station is already communicating with the outdoor station. After elapsed talking time, activating the door release or pushing the communication button again, the device turns back into idle mode. -
Page 24: Cleaning
Table: Loop resistance Wire length in m Cross section 0.6 mm 0.8 mm Loop resistance in Ω 1.22 0.69 2.45 1.38 3.67 2.07 4.90 2.76 6.12 3.44 7.35 4.13 8.57 4.82 9.80 5.51 11.02 6.20 12.24 6.89 18.37 10.33 24.49 13.78 17.22 20.66... -
Page 25: Technical Data
We accept the guarantee in accordance with the corresponding legal provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Technique (DCM) Service-Line: 0 23 55 . 80 65 52 Service-Centre Kupferstr.
