Blinds Management
25 507 13
Stand: Feb-08 3
Operating instructions

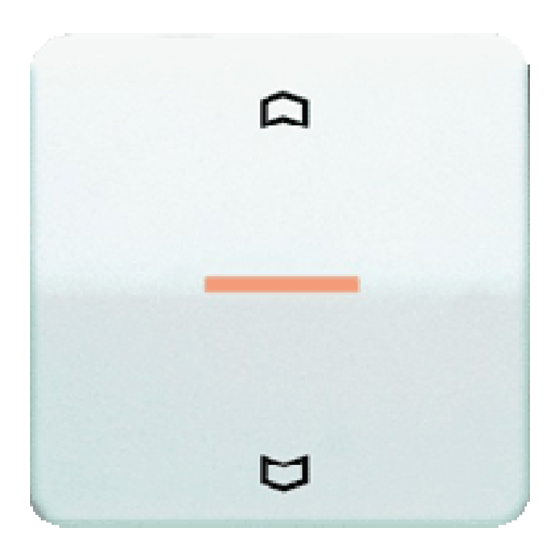

Standard attachment
Standard attachment with sensor input
1. Safety warnings
Attention: Electrical equipment must be installed and fitted by
qualified electricians only. Failure to observe the warnings may
cause damage to the device and result in fire or other hazards. To
prevent electric shocks, disconnect the mains supply (by cutting
out the circuit breaker) before working on the device or on the load.
The blind/shutter management system JM has been developed for
the control of window blinds and window shutters. Do not switch
other loads. Using the device for other applications such as the
control of roller-shutter doors may involve hazards. These hazards
must be excluded by the user by taking appropriate safety
measures (e.g. light barriers). Observe also the safety warnings set
out in the operating instructions of the respective motor control
insert used.
2. Function
The standard attachment is a component of the blind/ shutter
management system JM and can only be used in conjunction with the
motor control insert. A press on the
while a press on the
of the blind/shutter can be individually programmed between 0.5 seconds
and 2 minutes (preset value = 2 minutes). The attachment is additionally
equipped with an anti-lockout function to prevent any inadvertent
automatic lowering of the blind/shutter
Standard attachment with sensor input
Ref.-no.: ..5232,..5232 S
button raises the blind/shutter
button lowers the blind/shutter. The moving time
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 5232 Series
Summary of Contents for Jung 5232 Series

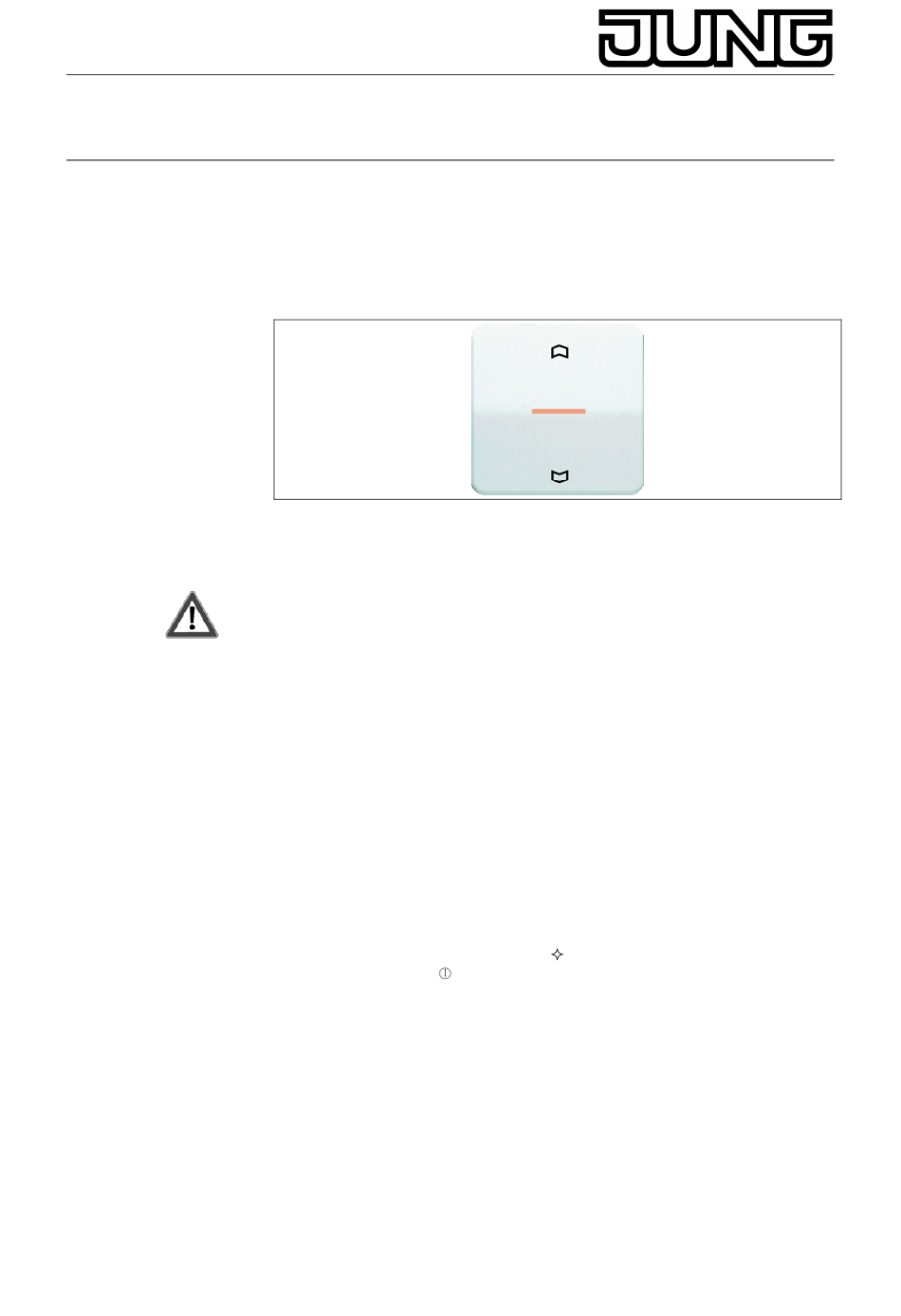

- Page 1 Blinds Management Standard attachment with sensor input Ref.-no.: ..5232,..5232 S Operating instructions Standard attachment Standard attachment with sensor input 1. Safety warnings Attention: Electrical equipment must be installed and fitted by qualified electricians only. Failure to observe the warnings may cause damage to the device and result in fire or other hazards.
- Page 2 Blinds Management Standard attachment with sensor input Ref.-no.: ..5232,..5232 S 3. Operation Brief press on the button (less than 1 second): A pulse corresponding in length to the duration of the press is generated. This function is used for the adjustment of the slats of blinds/shutters or for stopping the blind/shutter in the continuous run mode.
- Page 3 Blinds Management Standard attachment with sensor input Ref.-no.: ..5232,..5232 S The connecting terminals of the insert must be at the bottom. Description, fitting and connection of the insert: see separate instructions. Plug the standard attachment (2) together with frame (3) onto the insert (1). The electrical contact is established via connectors (4) and (5).
- Page 4 Blinds Management Standard attachment with sensor input Ref.-no.: ..5232,..5232 S Important: When the lock-out protection is active, the signal from the glass breakage sensor is disregarded. Glass breakage sensors must not be used in combination with the wind sensor. The wind protection function via the extension input (shutter moving up) is disabled after a glass breakage.
- Page 5 We accept the guarantee in accordance with the corresponding legal provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +(49) 23 55 .
