Jung 65 WIS Manual

Montageanleitung

Winkel-Buchsenstecker

Art.-Nr.: 65 WIS

Safety instructions

The products may be assembled and installed exclusively by suitably qualifi ed and trained specia-

lists duly observing all applicable safety regulations.

Multi-Contact (MC) does not accept any liability in the event of failure to observe these warnings.

Use only the components and tools specifi ed by MC. In case of self-assembly, do not deviate from

the preparation and assembly instructions as stated herein, otherwise MC cannot

give any guarantee as to safety or conformity with the technical data. Do not modify the product in

any way.

Protection from electric shock must be assured, all components must always be voltage-free during

Assembly and disassembly.

The plug connections must not be disconnected under load. Plugging and unplugging when live is

permitted.

Check the parts before use. For reasons of security, damaged parts have to be replaced.

Table of Contents

Do you have a question about the 65 WIS and is the answer not in the manual?

Page 1 Montageanleitung Winkel-Buchsenstecker Art.-Nr.: 65 WIS Safety instructions The products may be assembled and installed exclusively by suitably qualifi ed and trained specia- lists duly observing all applicable safety regulations. Multi-Contact (MC) does not accept any liability in the event of failure to observe these warnings.

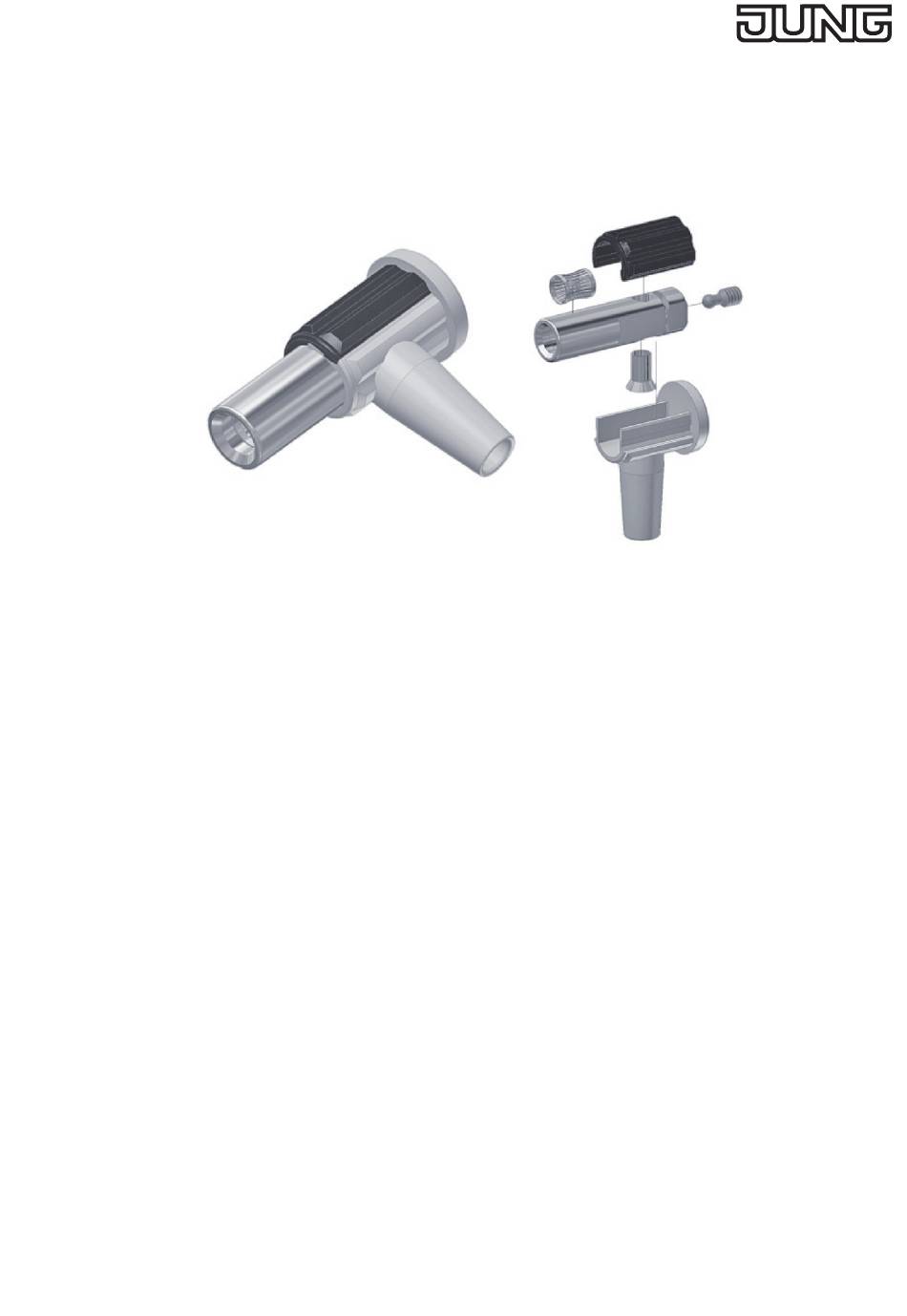

Page 2 Tools required (ill. 1) Open spanner (8mm) Hexagonal wrench (HOP2) (ill. 2) Insulation stripping pincers Overview (ill. 3 und 4) 1 Socket, pre-assembled by the manufacturer, consisting of: - Buchsenkörper (1a) - Kontaktlamelle (1b) - Madenschraube (1c) - Aderendhülse (1d) 2 Upper part of insulator (green) 3 Lower part of insulator (yellow) 4 Stranded wire (not supplied)
Page 3 Assembly (ill. 5) Thread wire 4 through lower part of insulator 3 and strip wire insulation (approx. 8mm). (ill. 6) Insert wire 4 in socket 1. (ill. 7) Tighten grubscrew (1c), screw must completely disappear into socket 1. (Hexagonal wrench HOP2, tightening torque 0.7 ... 1.0Nm (“hand-tight”))
Page 4 1. Then press the upper and lower insulator parts (2 and 3) together until they are felt to engage in each other. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04 kundencenter@jung.de...
