Jung KNX WS 10 D Operating Instructions

KNX
825 060 03
Stand: Okt-07

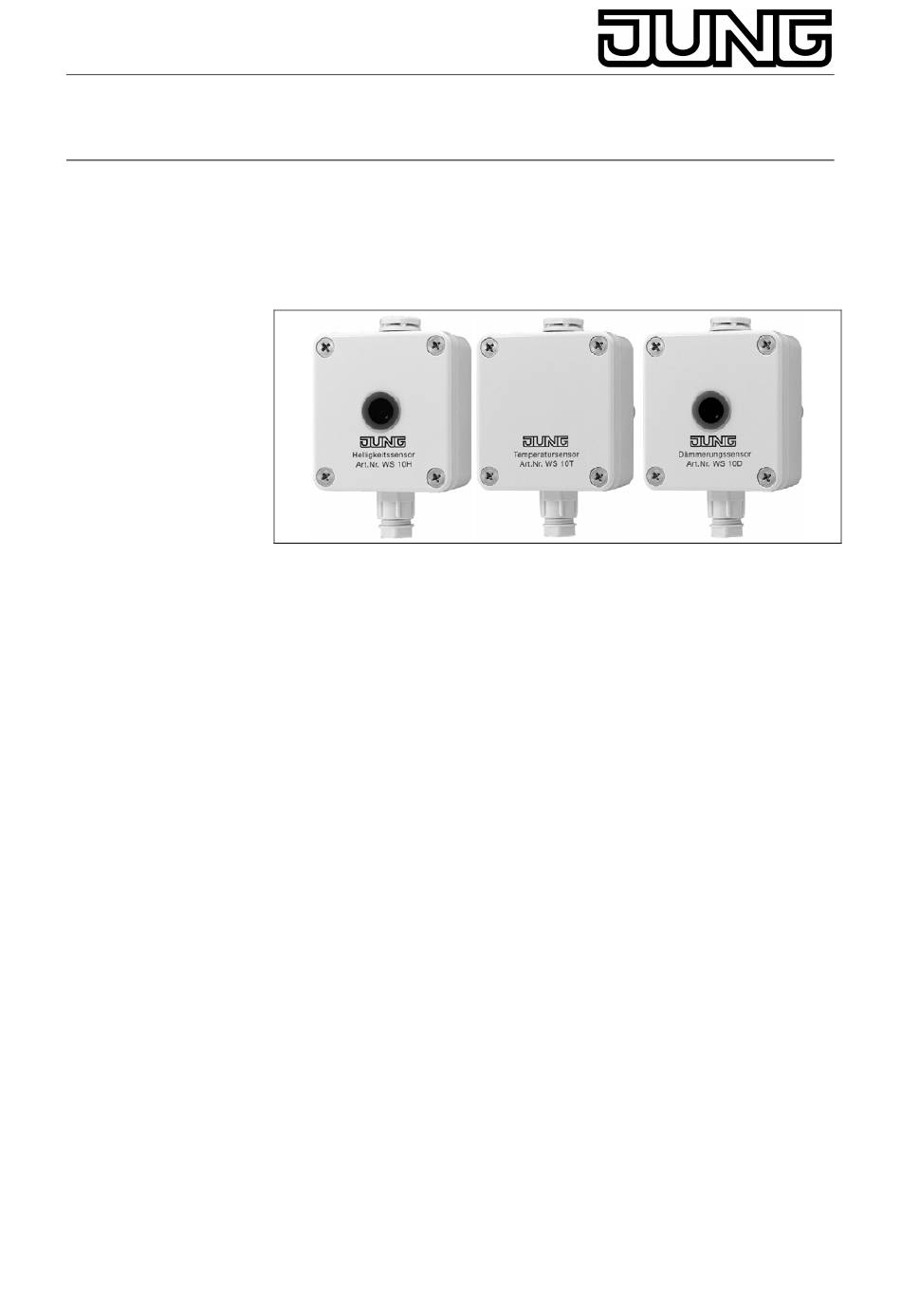

Operating Instructions
Brightness Sensor, Temperature Sensor

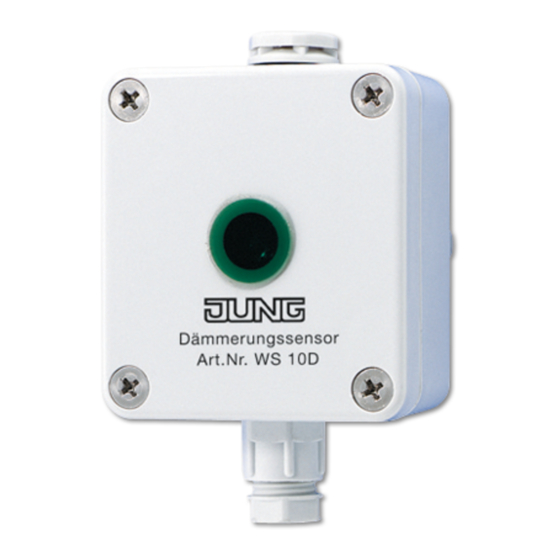

Twilight sensor

1. Function ............................................................................................. 1

2. Safety instructions ............................................................................ 1

3. Connection......................................................................................... 1

4. Fitting instructions............................................................................ 2
5. Technical Data ................................................................................... 2
6. Acceptance of guarantee.................................................................. 3
1. Function
The climatic data of interest are collected by three different transducers,
ie. the brightness sensor, the twilight sensor (Fig. ) and the temperature
sensor (Fig. ) and converted into analogue voltage signals (0 – 10 V).
The evaluation of these signals requires additional electronics (e.g.
instabus weather station) which offers the capability of transmitting
measured value or instruction telegrams to the EIB instabus depending
on the analogue signals received. To prevent the formation of moisture
inside the housings, the sensors are equipped with pressure-
compensating elements (weatherproofing membrane).
2. Safety instructions
Attention: Electrical equipment must be installed and fitted by
qualified electricians only.
Subject to change without notice.
3. Connection
The connecting cables passes through the screwed conduit entry no. 7 to
the connecting terminals.
Art.-no.: WS 10 D, WS 10 T, WS 10 H
Sensoren
