Operating instructions

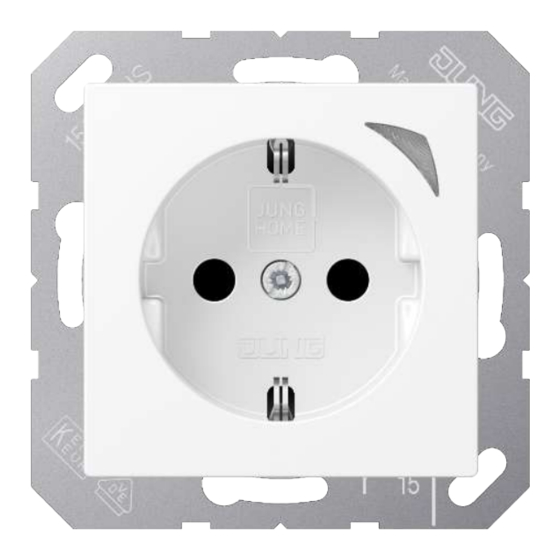

JUNG HOME SCHUKO socket
Art. no. BT..1521S..
JUNG HOME SCHUKO socket Energy
Art. no. BT..1521SE..
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
kundencenter@jung.de
28.02.2023
32405903 J0082405903
www.jung.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung SCHUKO BT 1521S Series
Summary of Contents for Jung SCHUKO BT 1521S Series

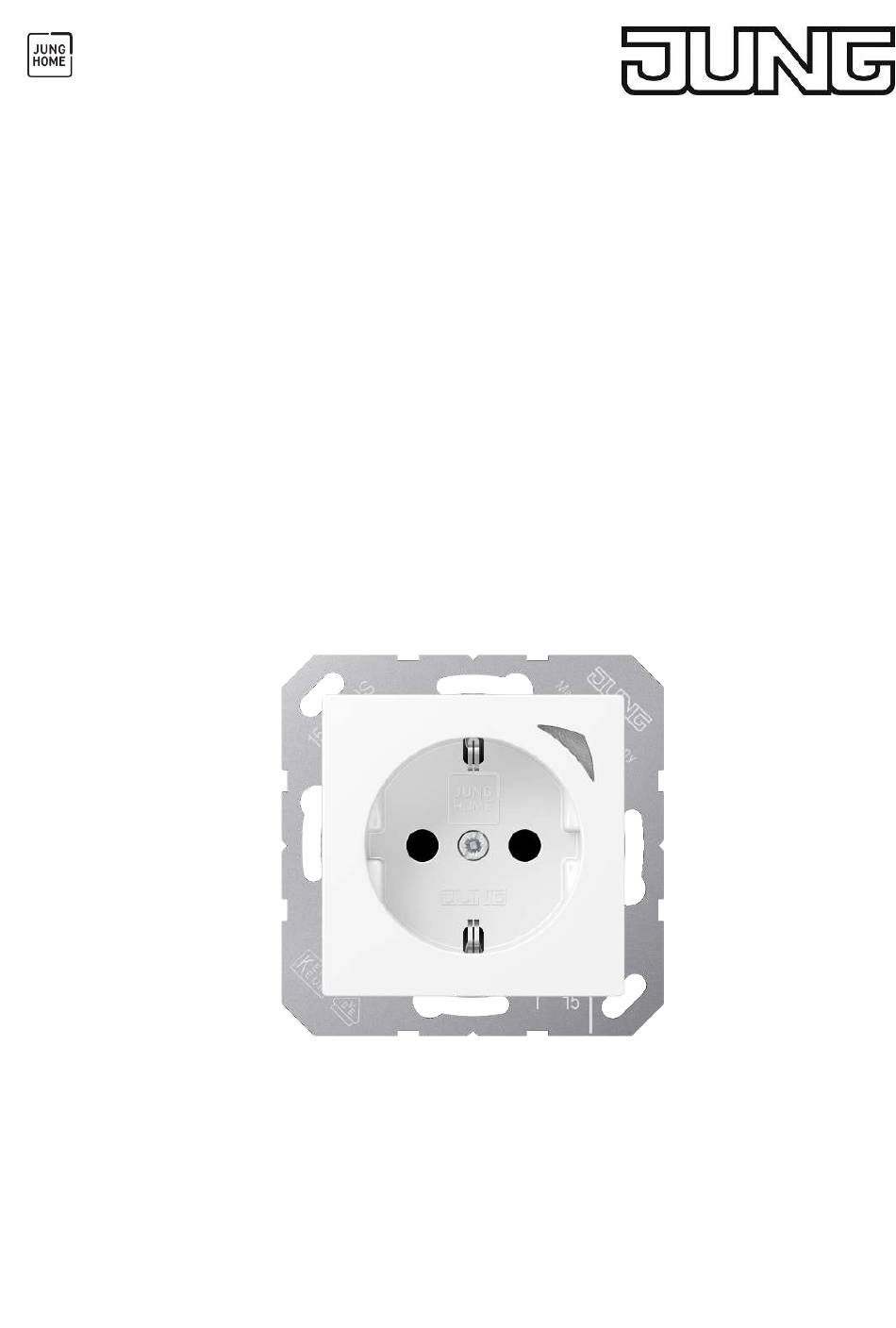

- Page 1 Operating instructions JUNG HOME SCHUKO socket Art. no. BT..1521S.. JUNG HOME SCHUKO socket Energy Art. no. BT..1521SE.. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 28.02.2023 32405903 J0082405903...
-
Page 2: Table Of Contents
JUNG HOME SCHUKO socket Table of Contents Safety instructions ...................... 3 Device components...................... 4 Intended use ........................ 4 Product characteristics ...................... 5 Operation .......................... 6 Mounting and electrical connection ................... 6 Commissioning via app ..................... 7 Resetting the device to the factory setting ................ 9 Technical data ......................... 10 10 List of functions and parameters .................. 11... -
Page 3: Safety Instructions
Before carrying out work on the device or load, switch off all associated circuit break- ers. This manual is an integral part of the product, and must remain with the end cus- tomer. You can find more information on JUNG HOME at www.jung.de/JUNGHOME 32405903 3 / 18 28.02.2023... -
Page 4: Device Components
Intended use – Manual or automatic switching of lighting and common household devices – Power (W) and energy measurement (kWh) of connected devices, only JUNG HOME SCHUKO socket Energy – Wireless connection to devices from the JUNG HOME system –... -
Page 5: Product Characteristics
If the device was not previously added to a Bluetooth Mesh network (project) via the JUNG HOME app, it switches for 2 minutes to coupling mode after the mains voltage returns and the status LED flashes slowly at a regular interval in blue. -
Page 6: Operation
– If JUNG HOME devices are installed on both sides of a solid wall, they should be positioned as close as possible to each other on the opposite sides of the wall. -
Page 7: Commissioning Via App
Use Frame 28 mm structure height if you have an existing appliance box with insufficient depth (see accessories) Commissioning via app Prerequisite: The JUNG HOME device does not yet belong to a Bluetooth Mesh net- work. Otherwise reset the device to the default setting. 32405903 7 / 18 28.02.2023... - Page 8 If a Bluetooth Mesh network (project) does not yet exist, a new project must first be created for the first JUNG HOME device in the JUNG HOME app. If a Bluetooth Mesh network already exists, the project file for this network must be opened in order to pair the new device.
-
Page 9: Resetting The Device To The Factory Setting
If the device has already been added to a project with the JUNG HOME app, it can be deleted from the app with the "delete device" function and simultan- eously reset to the default setting. -
Page 10: Technical Data
The status LED flashes in red more slowly for approx. five seconds. The device has been reset to the default setting. After resetting the device to the default setting, it must be removed from the JUNG HOME app provided it has not already been deleted from the app. Technical data Rated voltage AC 220 ... -
Page 11: List Of Functions And Parameters
List of functions and parameters The JUNG HOME app can be used to configure all functions of the JUNG HOME device and its behaviour in the Bluetooth Mesh project for the respective individual purposes. - Page 12 JUNG HOME SCHUKO socket Ǎ button settings Parameters Setting options, default Explanation setting Behaviour of Colour selection LED colour and brightness** when load is the status LED switched on. Default setting: green when switched Behaviour of Colour selection LED colour and brightness** when load is the status LED switched off.
- Page 13 10:00 pm. Set location** Geographic location The astro timer in the JUNG HOME devices needs the geographic location of the project to calculate the sunrise or sun- set time. The astro timer is calculated once a week for the localised place.
- Page 14 Setting options, Explanations Default setting Switch-on 0.1 ..+ 3,680 W, The loads of the JUNG HOME devices threshold 1 s... 60 min selected in the app are switched on if the power value exceeds or falls below the Default setting: none value set for the set period.
- Page 15 JUNG HOME sensor cover during the run-on time or the operating cover is switched on again by operating an exten- sion or a linked JUNG HOME operating cover, the run-on time is restarted and the light remains on. The load can be switched off early during a running run-on time only if the "Manual...
- Page 16 Presentation Off, On The presentation function is used in com- function bination with a linked JUNG HOME pres- Default setting: Off ence detector. The presentation function can be switched on or off with the app or a linked JUNG HOME push-button.
-
Page 17: Troubleshooting
Replace the cover with a cover type that matches the insert. Load is switched off, device cannot be operated, status LED (4) repeatedly flashes red three times Cause: The overcurrent protection has tripped, only JUNG HOME SCHUKO socket Energy. Eliminate the cause. -
Page 18: Accessories
LS98..HBF.. Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type, art. no. BT..1521S.., BT..1521SE.. meets the directive 2014/53/EU. You can find the full art- icle number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
