Leakage sensor
Leakage sensor
Art. No. : LES01
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
These instructions are an integral part of the product, and must remain with the end
customer.

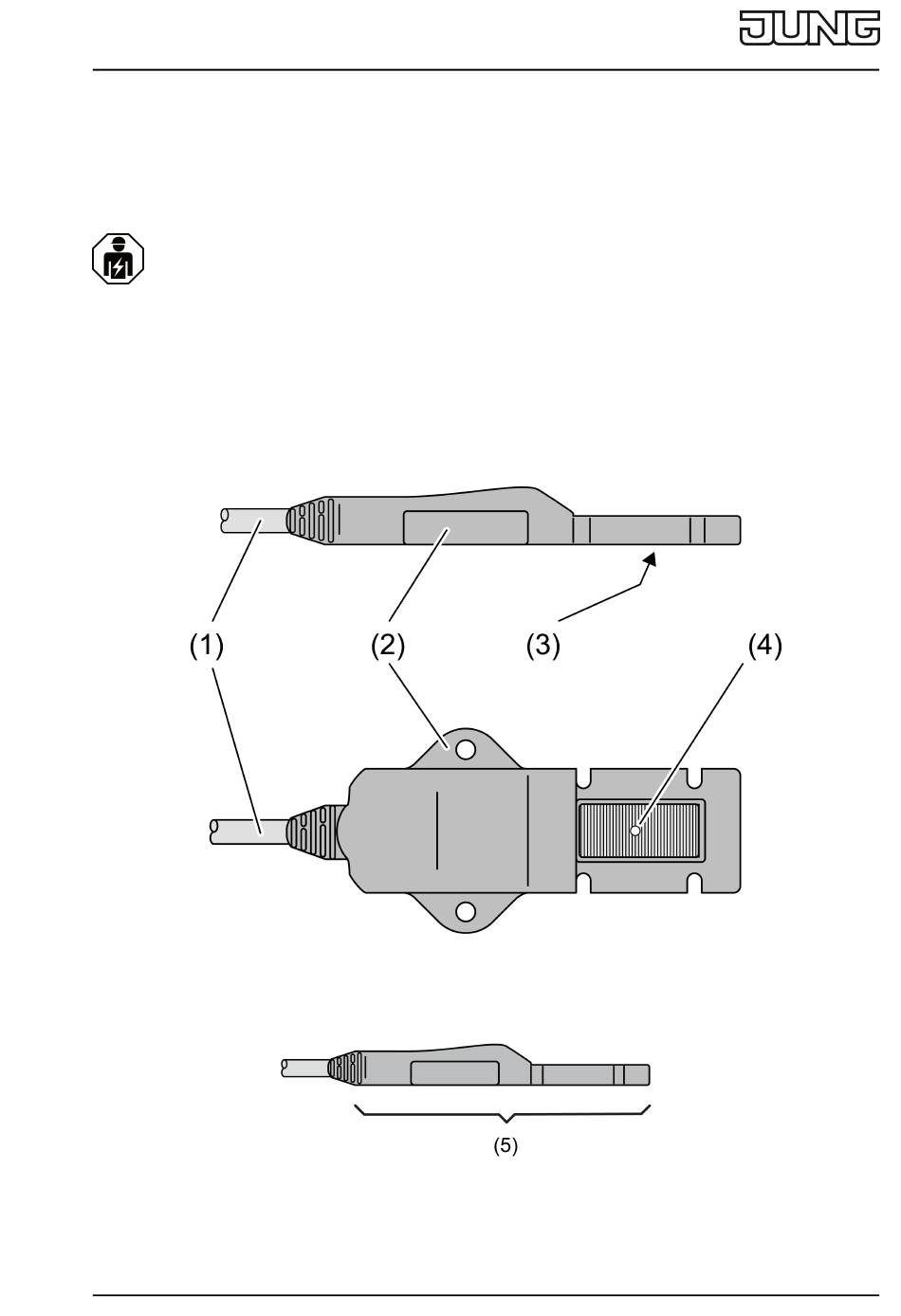

2 Device components
(1) Connecting cable
(2) Fixing strap
82595823
j0082595823
Figure 1
Figure 2
1/5
24.05.2018
Advertisement
Table of Contents
Related Manuals for Jung LES01
Summary of Contents for Jung LES01
-
Page 1: Safety Instructions
Leakage sensor Leakage sensor Art. No. : LES01 Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. During installation and cable routing, comply with the regulations and standards which apply for SELV circuits. - Page 2 Leakage sensor (3) Sensor surface (4) Ventilation opening (5) Supporting surface 3 Function Intended use Detection of water penetration and leaks Connection to KNX pushbutton interfaces or similar binary inputs Fitting to the surface to be monitored Function of the leakage sensor The device monitors the electrical conductivity between the conductive coatings on the sensor surface.
- Page 3 Leakage sensor 4 Information for electrically skilled persons 4.1 Fitting and electrical connection Fitting the leakage sensor Figure 3: Appropriate and inappropriate locations for fitting i Do not place the device on sloping surfaces, ridges or pedestals(figure 3). Look for an appropriate installation location at which escaping water can be detected early. Place the device directly on the surface that is to be monitored.
- Page 4 Leakage sensor Figure 4 Connecting the leakage sensor The device is directly connected to an evaluation unit, e.g., pushbutton interface, and supplied by it. The signaling takes place by short-circuiting the supply voltage. Figure 5 Connect the device to an evaluation unit (6) that supplies and monitors the device. Observe the polarity: Brown = + White = –...
-
Page 5: Technical Data
Degree of protection IP 67 5.2 Warranty The warranty follows about the specialty store in between the legal framework as provided for by law. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
