Jung RW 95 Operation Manual

Blinds Management
Rain sensor
Rain sensor
Art.-No.: RW 95
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Risk of injury from automatic movement of blinds/shutters.
Always disconnect before carrying out work on the devise or load.
Danger of electric shock. Insulate unused wires.
Risk of injury from hot surfaces. The integrated heater can cause the sensor surface to
reach high temperatures. Do not touch the sensor surface.
The sensor surface is delicate; protect it when handling the device. Clean the sensor
surface only with mild cleaning agents. Sensor surface can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

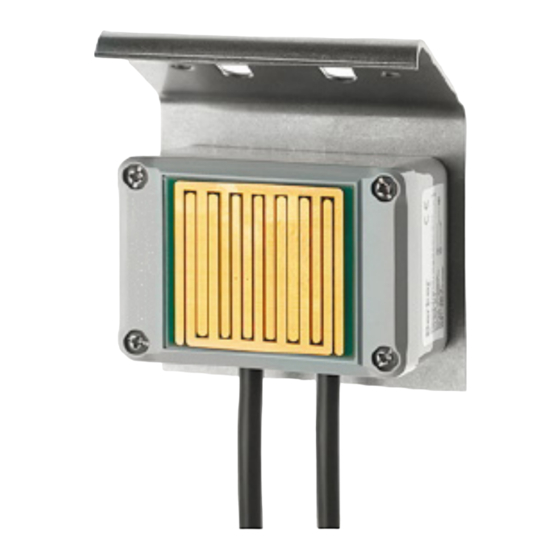

2 Device components
(1) Mounting bracket
(2) Sensor surface
(3) Power cable
(4) Control cable
3 Function
Intended use
- Sensor for detection and evaluation of precipitation
- In connection with blind/shutter controllers, enables, e.g. the retraction of awnings when it
begins to rain.
- Surface-mounted device for outdoor installation
82556713
J:0082556713
picture 1
1/3 20.07.2010
