Jung SCHUKO 1520-15 Series Operating Instructions

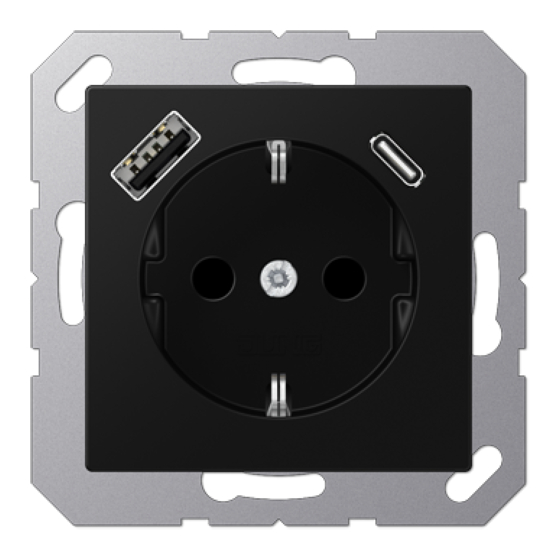

Sockets with USB charger
Sockets with USB charger
SCHUKO® and French/Belgian system
Ref.-no.: .. 1520-15 .., .. 1520 F-15 ..
.. 1520-18 .., .. 1520 F-18 ..
Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or load.
These instructions are an integral part of the product, and must remain with the end customer.

2 Structure of the device

(1) Insert
(2) Frame
(3) Cover

3 Function

Intended purpose
- Socket with battery charging station for mobile devices with USB connection
- Installation in flush box according to DIN 49073
- Installation depth: 48 mm
Product characteristics
- with enhanced contact protection (shutter)
- screwless terminals for wires up to 2.5 mm²
- USB connections:
1 × type A (with quick charge function) or
1 × type C (with quick charge function) or
1 × type A and 1 × type C
0024021900
2
1
2
1
Fig. 1: Structure of the device
1 / 2
3
3
GB
29.05.2020
