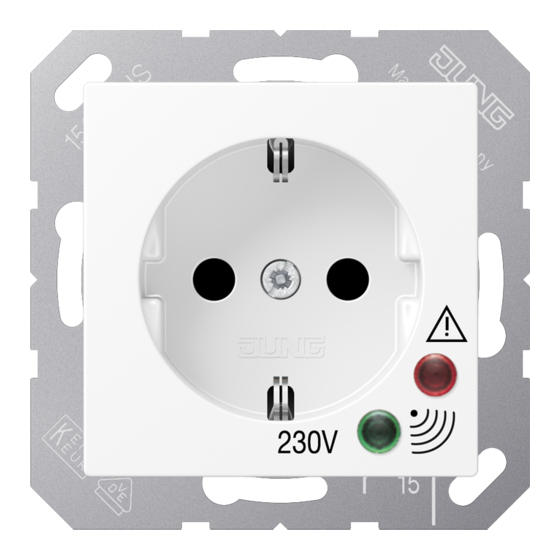

SCHUKO socket with surge voltage protection
SCHUKO socket with surge voltage protection
Art. No. : ..521 KINAUF..
SCHUKO socket with surge voltage protection
Art. No. : 821 UF W
Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
To protect against high-energy surges, install multistage selective protection. Otherwise
connected devices may be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

2 Device components

(1) Socket outlet
(2) Red light emitting diode = protection function not in operation
(3) Red light emitting diode = mains voltage present

3 Function

Intended use
-
Type 3 fine protection for protecting electrical and electronic devices against transient
power surges according to EN 61643-11
-
For use only in combination with Type 1 coarse protection and Type 2 medium protection
-
For use in TN, TT and IT systems
-
Stationary installation indoors in appliance box according to DIN 49073.
Product characteristics
-
The device protects electrical and electronic devices against transient power surges.
-
Failure of the protection function is indicated by an acoustic and visual signal.
32515853
J0082515853

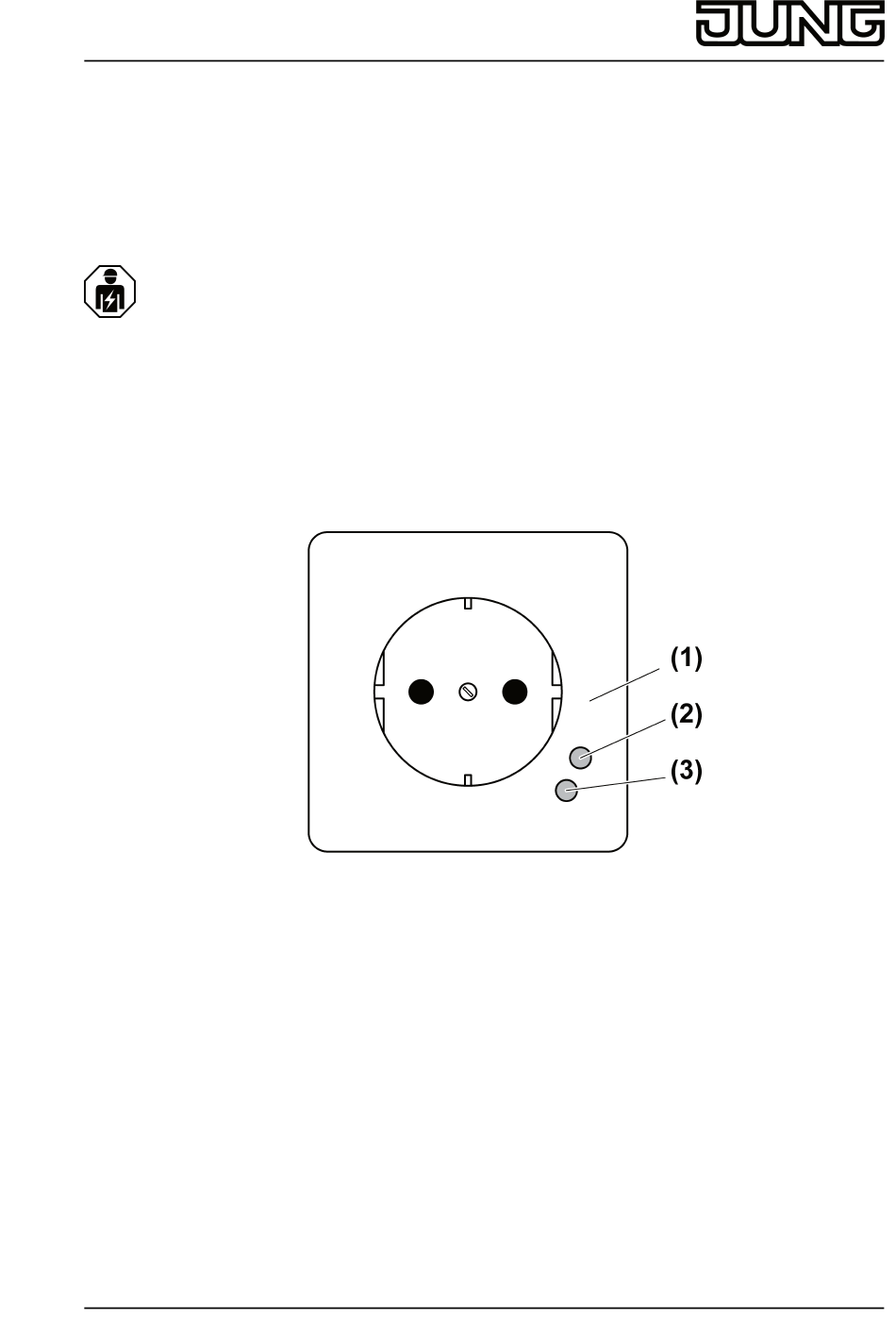

Figure 1: Device components
1/4
05.01.2016
