Installation

1. If possible, disconnect and move freestanding or
slide-in range from cabinet opening to provide
easier access to rear wall. Otherwise put a thick,
protective covering over countertop, cooktop or
range to protect from damage or dirt. Select a flat
surface for assembling the unit. Cover that surface
with a protective covering and place all canopy hood
parts and hardware in it.
2. Determine and mark the centerline on the wall
where the canopy hood will be installed.
3. Select a mounting height comfortable for the user
and mark on wall behind cooktop.

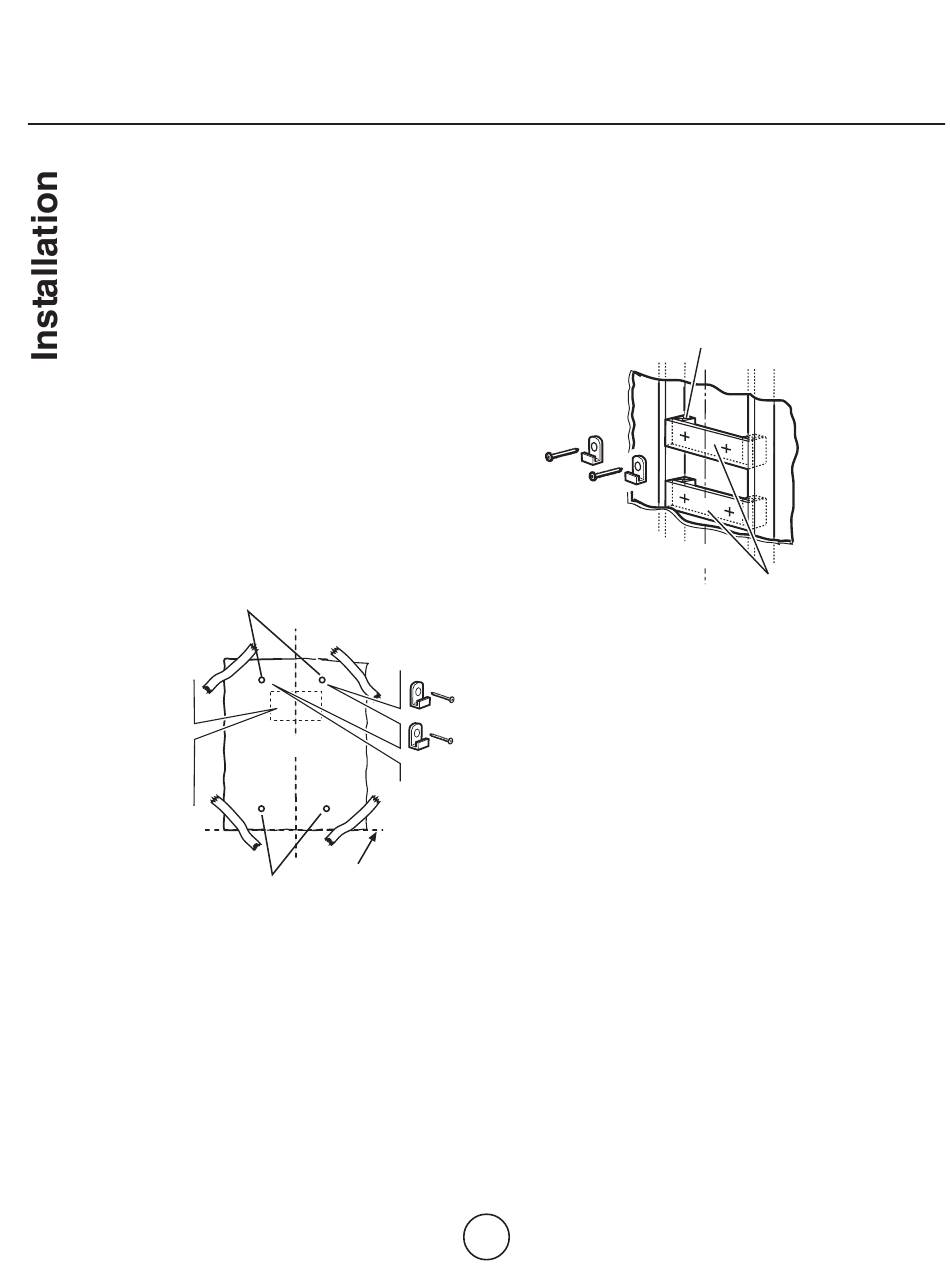

4. Tape template, matching center-line and hood
bottom as shown in Figure below.
5. Mark center of two top fastener location and two
lower fastener location.
Ducting Version towards the rear side ONLY
(Horizontal discharge):
Mark the cut out to be done for duct passage.
Remove the template.
top fasteners
locations
Duct
passage
(Ducting
Version
horizontal
discharge)
fasteners
locations
6. Mark wall with horizontal line 1" above highest and
1" below lowest fastener location.
7. Find studs behind drywall by tapping wall or using a
stud finder. Mark the center of the studs with a
vertical line to the right and left of the marked
fastener location.
centerline
C L
Hooks
mounting
height
reference
8. Note: all fastener locations must span the studs
otherwise proceed as follows:
Cutout drywall along marked lines. Install each
necessary between studs firmly flush with already
existing stud front. Make sure all mounting screws
will anchor to added studs. Replace drywall and
refinish.
Framing behind drywall
9. Determine and make all necessary cuts in the wall
for the vent system. Install the vent system before
the canopy hood. See „Venting methods" and
„Dimensions and clearance" paragraphs.
Note - for Ductless - recirculating - installations:
Vent system is not required.
12
C
L
Wood cross
support secured
to framing and
located behind
drywall
