Installation- Discharge Direction - Zephyr Elica Om Use, Care And Installation Manual

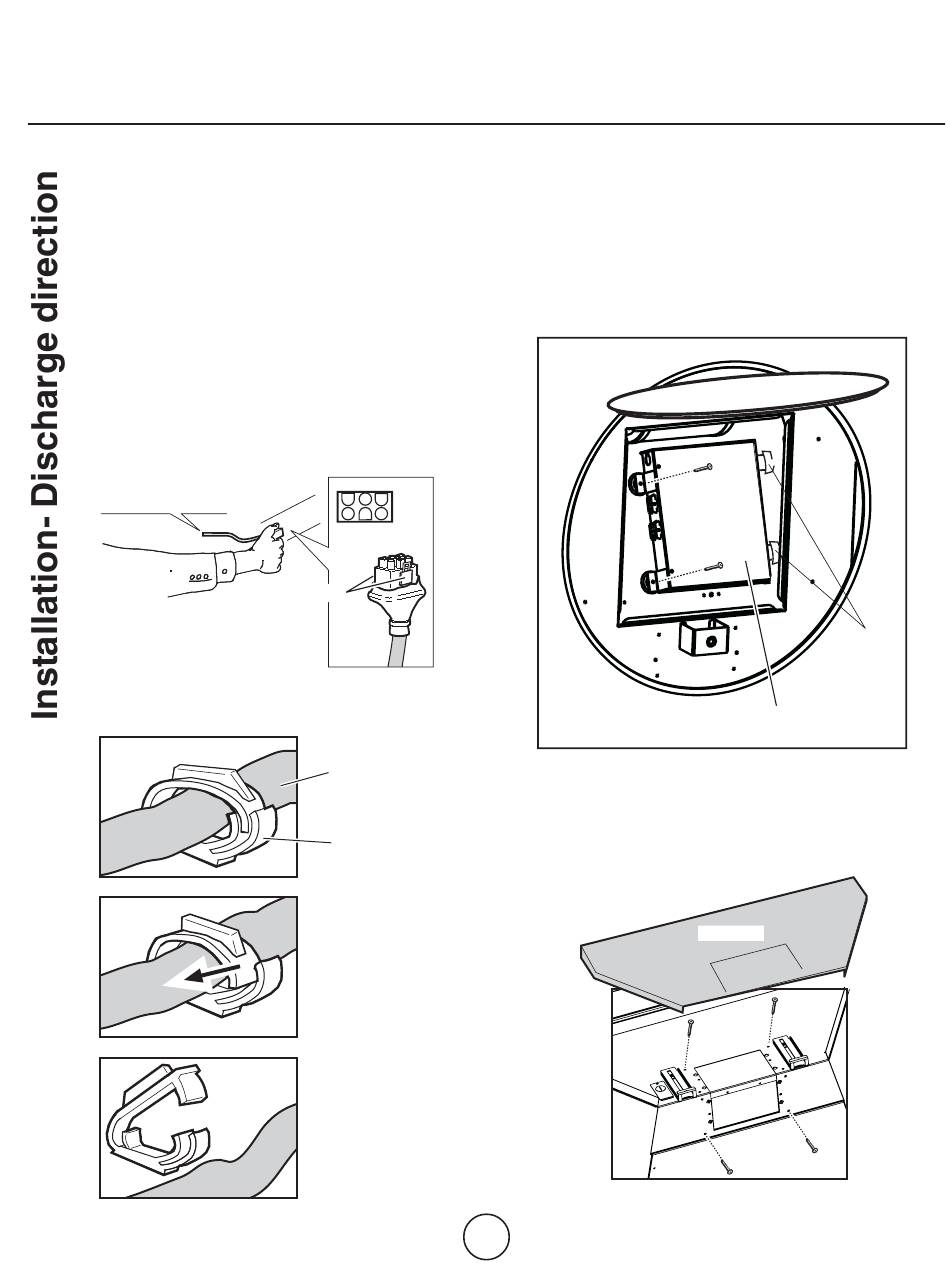

This hood is shipped ready for Horizontal
discharge. To change to Vertical discharge proceed
as follows:
Note1: when proceeding keep all screws and
memorize the way all components are fixed.
Note2 - For Vertical discharge ONLY: The
installation of the Low or High Duct Cover kit is
recommended.
a. open the front door and remove the metal filter
(see paragraph "Maintenance - Front Door" and
"Maintenance - Grease filter").
b. disconnect the blower molex plug from
electronic box - press on both side locks to
release, and remove wiring from blocks located
on top side of the electronic box.
from Blower unit
Side locks
Blower
wiring
Wiring
block
Slide from
a side
Release the
wiring
10
c. Remove the screws that fix the electronic box to
the back of the hood and release the box
towards the bottom of the motor housing, so to
leave anough clearance to handle the blower.
Warning! When repositioning check that
electronic box is fixed with screws and side
hooks.
d. from the outside of the hood remove the top
cover and 4 screws that fix the blower support
bracket to rear/top side of the range hood.
Top cover
Side
hooks
Electronic
Box
REAR VIEW
