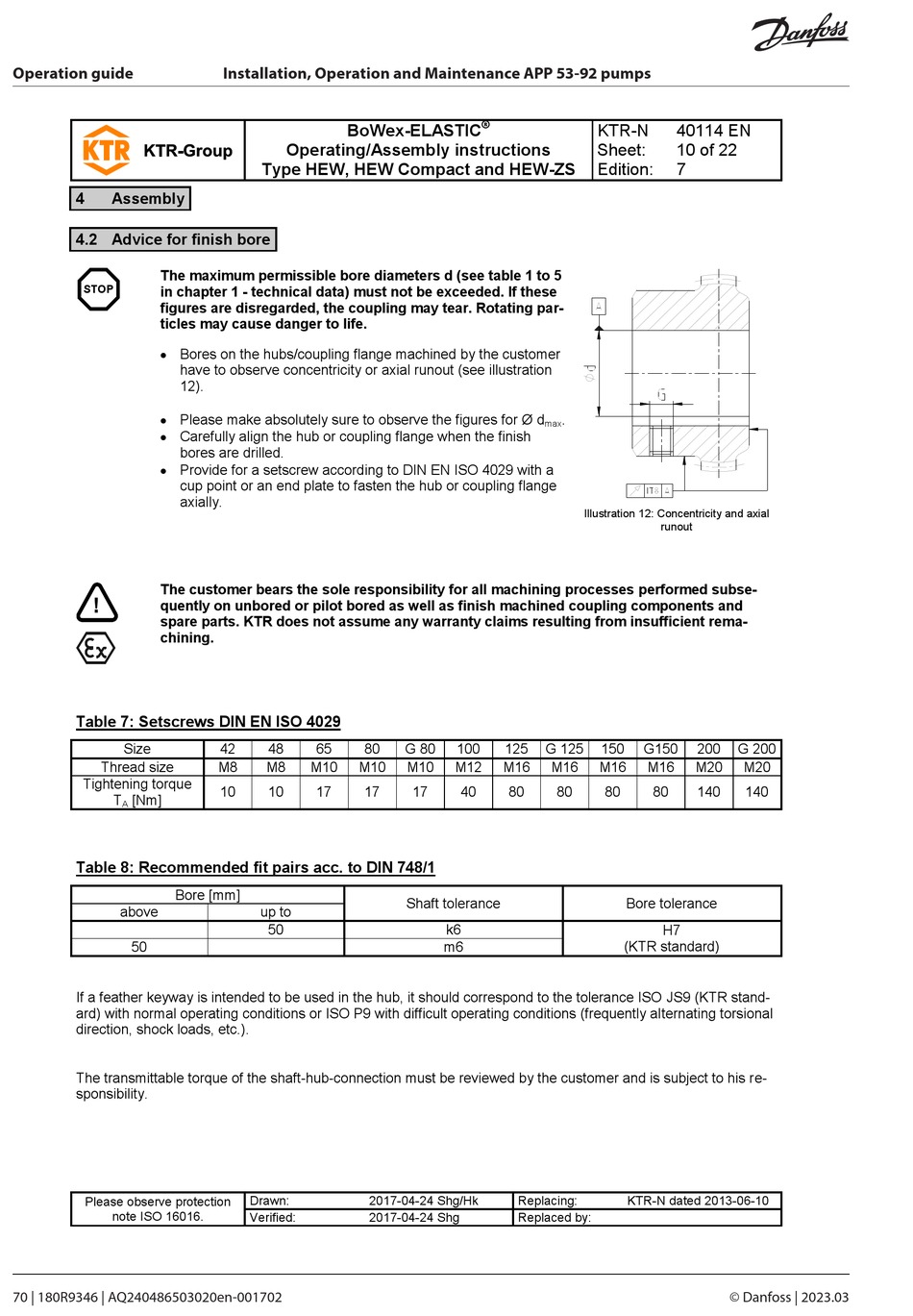

Operation guide
4 Assembly
4.2 Advice for finish bore
The maximum permissible bore diameters d (see table 1 to 5
STOP in chapter 1 - technical data) must not be exceeded. If these
figures are disregarded, the coupling may tear. Rotating par-
ticles may cause danger to life.
 Bores on the hubs/coupling flange machined by the customer
have to observe concentricity or axial runout (see illustration
12).
 Please make absolutely sure to observe the figures for Ø d
 Carefully align the hub or coupling flange when the finish
bores are drilled.
 Provide for a setscrew according to DIN EN ISO 4029 with a
cup point or an end plate to fasten the hub or coupling flange
axially.
The customer bears the sole responsibility for all machining processes performed subse-
!
quently on unbored or pilot bored as well as finish machined coupling components and
spare parts. KTR does not assume any warranty claims resulting from insufficient rema-
chining.
Table 7: Setscrews DIN EN ISO 4029
Size
Thread size
Tightening torque
T [Nm]
A
Table 8: Recommended fit pairs acc. to DIN 748/1
Bore [mm]
above
50
If a feather keyway is intended to be used in the hub, it should correspond to the tolerance ISO JS9 (KTR stand-
ard) with normal operating conditions or ISO P9 with difficult operating conditions (frequently alternating torsional
direction, shock loads, etc.).
The transmittable torque of the shaft-hub-connection must be reviewed by the customer and is subject to his re-
sponsibility.
Please observe protection
note ISO 16016.
70 | 180R9346 | AQ240486503020en-001702
Installation, Operation and Maintenance APP 53-92 pumps
BoWex-ELASTIC
Operating/Assembly instructions
Type HEW, HEW Compact and HEW-ZS
42 48 65 80
M8 M8 M10 M10
10 10 17 17
up to
50
Drawn: 2017-04-24 Shg/Hk
Verified: 2017-04-24 Shg
®
.
max
G 80 100 125 G 125
M10 M12 M16 M16
17 40 80 80
Shaft tolerance
k6
m6
Replacing:
Replaced by:
KTR-N 40114 EN
Sheet: 10 of 22
Edition: 7
Illustration 12: Concentricity and axial
runout
150 G150 200 G 200
M16 M16 M20 M20
80 80 140 140
Bore tolerance
H7
(KTR standard)
KTR-N dated 2013-06-10
