Operation guide

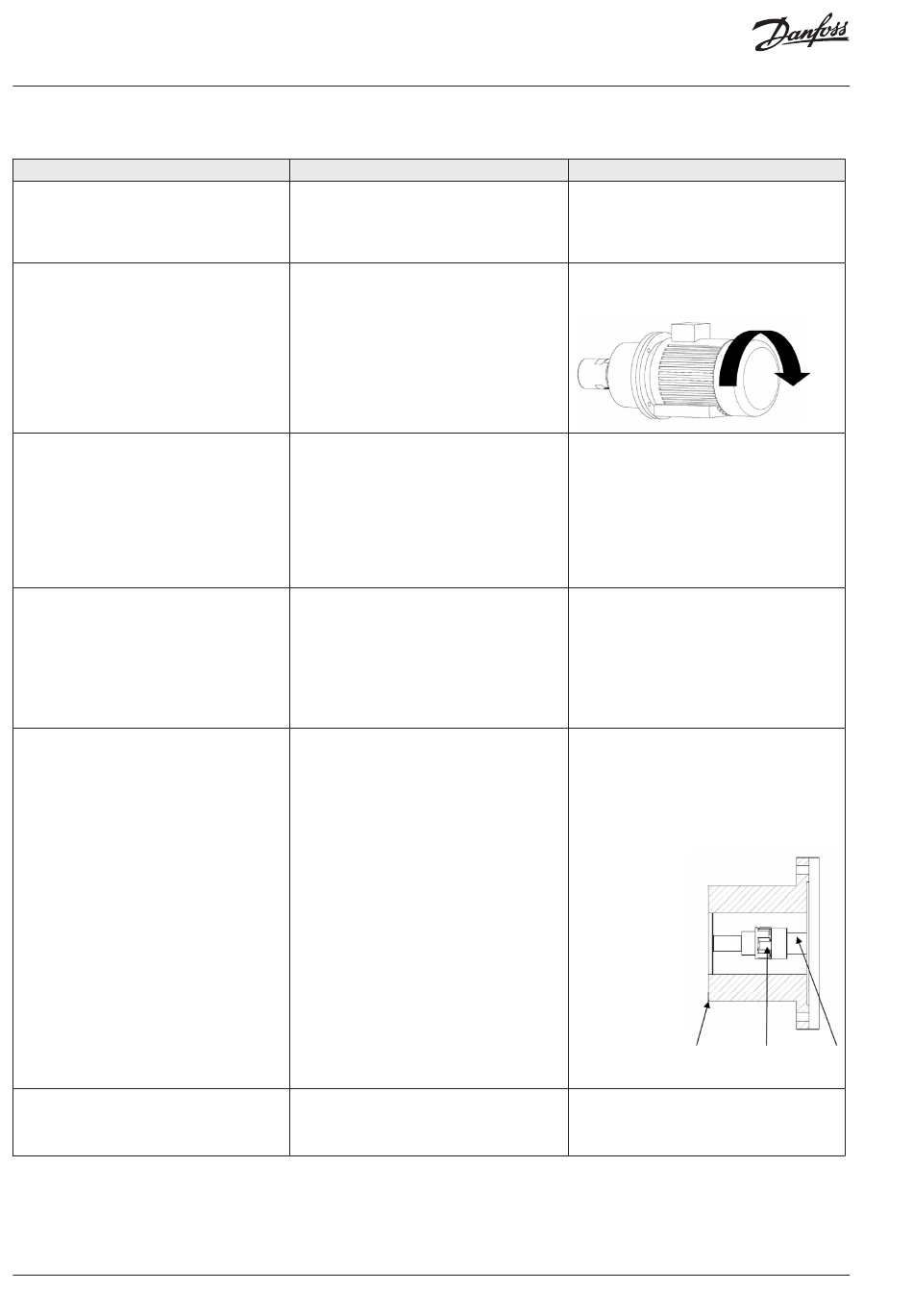

1.

No flow/no pressure

Cause
1.1 Dry running
(no water supply to the pump)
1.2 Pump reversing
(electric motor is running the wrong direction,
i.e. counter-clockwise)
1.3 No rotation of electric motor
1.4 No rotation of pump
1.5 Axial load on pump shaft
(may cause high internal leakage)
Only applying to
APP 0.6 to APP 3.5 and
APP 21 to APP 26 only.
Also applying to APP S and APP S 674 pumps.
1.6 Pump damage
(the internal parts may be damaged)
104 | 180R9346 | AQ240486503020en-001702
Installation, Operation and Maintenance APP 53-92 pumps
Remedy
If no water comes out of the pump:
1.1.1 Check that inlet valve is open.
1.1.2 Check that booster pump is running.
1.2.1 Change the phase on the electric motor to
make it run clockwise.
WARNING:
- The pump must not run without water for
more than a few seconds.
- If the pump takes in water from the high-
pressure outlet line, it builds up pressure in
pump housing and will eventually break
down.
1.3.1 Check that main switch is switched on.
1.3.2 Check the electricity at the facility.
1.3.3 Ensure that motor relay is switched on.
1.3.4 Ensure that fuse is not blown.
1.3.5 Ensure that booster pump is started.
1.3.6 Check that the monitor switches are
working correctly.
1.3.7 Disconnect pump from electric motor and
check that the motor is capable of running
with no load.
1.4.1 Ensure that coupling between electric
motor and pump is connected.
1.4.2 Check if coupling is damaged.
1.4.3 Check that electric motor is sized correctly.
1.4.4 Check that the electrical installation is
correctly sized.
1.4.5 Contact Danfoss Sales office for guidelines
in how to troubleshoot internal pump
parts.
1.5.1 Ensure that the air gap between the two
coupling parts is min 5 mm. It should
always be possible to move the plastic part
on the coupling at least 3 mm.
1.6.1 Contact Danfoss sales office for guidelines
in how to troubleshoot internal pump
parts.
Comments
Mount a low pressure switch in front of the
pump and check its set point/ function. The low
pressure switch ensures that the pump does
not start until the inlet pressure has reached-
minimum inlet pressure (see User manual).
Rotation direction for the APP, APP S or APP S 674
pump is shown by an arrow on the label on the
pump.
If motor-type relay or the electrical fuse is
blown, check that electric motor is sized
correctly.
To ensure easy mounting of the flexible
coupling without using tools, the tolerances
must be dimensioned accordingly.
WARNING:
Any axial and/or radial loads on the shaft
must be avoided. Any axial or radial load will
cause breakdown.
A - Bell housing
B - Flexible coupling
C - Motor shaft
A
Instructions on internal elements
are available on hpp.danfoss.com.
© Danfoss | 2023.03
B C
