Operation guide
2 Advice
2.6 Reference to EC Machinery Directive 2006/42/EC
The couplings supplied by KTR should be considered as components, not machines or partly completed ma-
chines according to EC Machinery Directive 2006/42/EC. Consequently KTR does not have to issue a declaration
of incorporation. For details about safe assembly, start-up and safe operation please refer to the present operat-
ing/assembly instructions considering the warnings.
3 Storage, transport and packaging
3.1 Storage
The coupling hubs are supplied in preserved condition and can be stored at a dry and roofed place for 6 - 9
months.
With favourable storage conditions the properties of the elastomer part remain unchanged up to 5 years.
The storage rooms must not include any ozone-generating devices like e. g. fluorescent
!
light sources, mercury-vapour lamps or electrical high-voltage appliances.
Humid storage rooms are not suitable.
Please make sure that condensation is not generated. The best relative air humidity is less
than 65 %.
3.2 Transport and packaging
In order to avoid any injuries and any kind of damage please always make use of proper
!
transport and lifting equipment.
The couplings are packed differently each depending on size, number and kind of transport. Unless otherwise
contractually agreed, packaging will follow the in-house packaging specifications of KTR.
4 Assembly
The coupling is generally supplied in individual parts. Before assembly the coupling has to be inspected for com-
pleteness.
4.1 Components of the couplings
Components of BoWex-ELASTIC
Compo-
Quantity
nent
1 1
2 1
4 1
5 see table 1
7 2
1)
With size 150 nuts as per DIN EN ISO 4014 are required additionally.

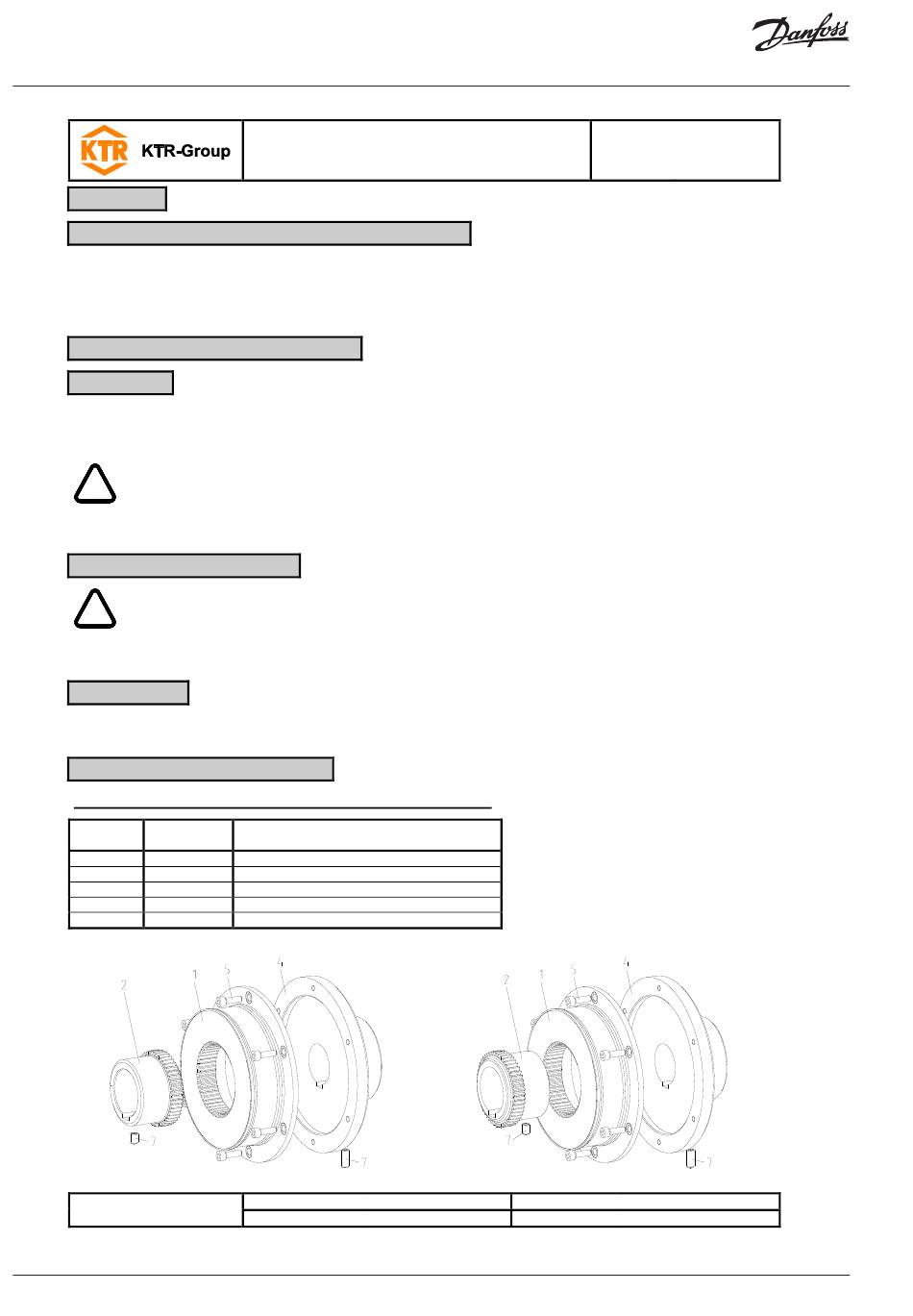

Illustration 7: BoWex-ELASTIC
Please observe protection
note ISO 16016.
68 | 180R9346 | AQ240486503020en-001702
Installation, Operation and Maintenance APP 53-92 pumps
BoWex-ELASTIC
Operating/Assembly instructions
Type HEW, HEW Compact and HEW-ZS
®
, type HEW1 and HEW2
Description
Elastomer part
Hub
Coupling flange
1)
Cap screws DIN EN ISO 4762
Setscrews DIN EN ISO 4029
®
type HEW1
Drawn: 2017-04-24 Shg/Hk
Verified: 2017-04-24 Shg
®
1)
Illustration 8: BoWex-ELASTIC
Replacing:
Replaced by:
KTR-N 40114 EN
Sheet: 8 of 22
Edition: 7
®
type HEW2
KTR-N dated 2013-06-10
