Operation guide
Standard configuration
Non-standard configuration, turned 90 degrees left.
© Danfoss | 2023.03
Installation, Operation and Maintenance APP 53-92 pumps
The APP 53-92 connections (inlet and outlet) can be adjusted in intervals of 45 degrees.

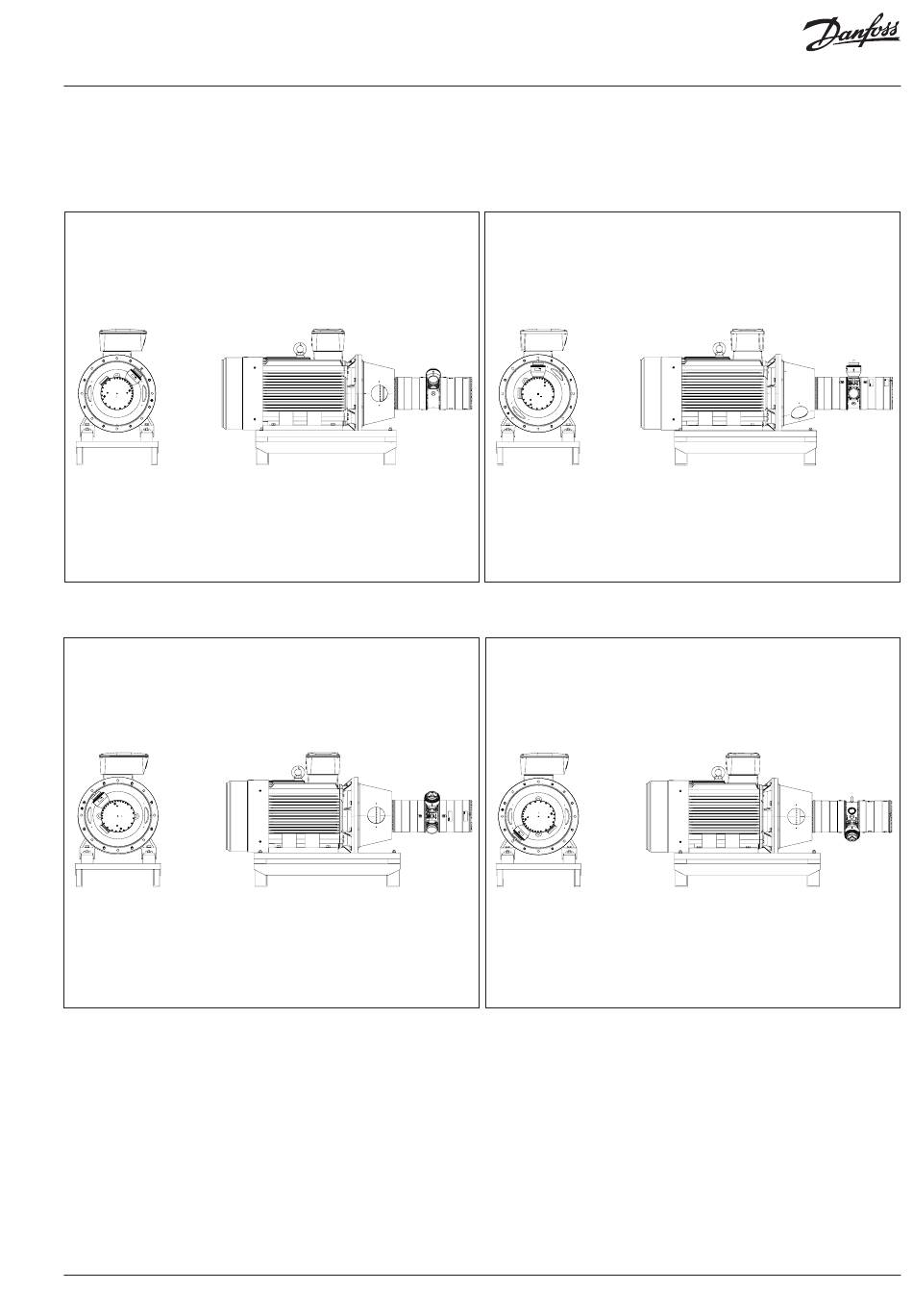

Please see typical installations with check valve VCM 92 mounted in the outlet port in the drawing
below. Non-standard configurations are available on request. For adjustment on site, please see
Installation, Operation and Maintenance Manual or contact Danfoss.
Non-standard configuration, turned 45 degrees left.
Non-standard configuration, turned 180 degrees .
180R9346 | AQ240486503020en-001702 | 35
