Wall Mount - Multitek MB-12 User Manual

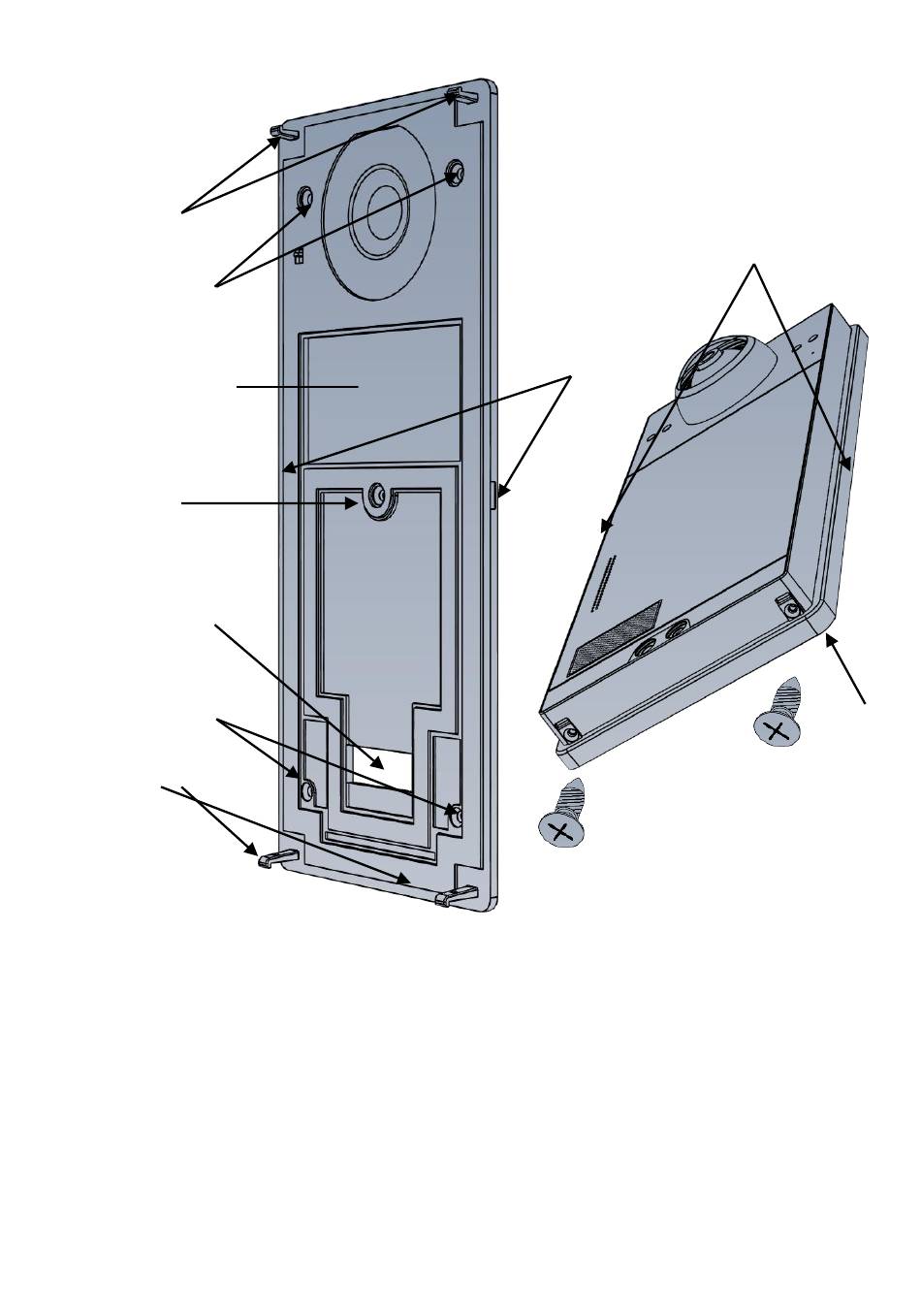

3. WALL MOUNT

HOLDER TABS
BLIND CASE WALL
MOUNTING HOLES
WALL MOUNTING
APPARATUS
BLIND CASE WALL
MOUNTING HOLES
CABLE OUTPUT
BLIND CASE WALL
MOUNTING HOLES
HOLDER TABS

Mount the blind case on the wall with 5 screws.

Make the cable connections according to the connection diagram on page 9.

Place the MB-12 panel, the rests at the back of MB-12 upper and lower
corners are placed in the blind case with the holder on the holder plastic tabs
in the Wall Mounting Apparatus. First place the top tabs and then the bottom
tabs.

Press the panel at the side edges and snap the HOLDER SIDE TABS.

Main body and the blind case are fixed each other as in Image 2, using the
2 x 2.9mm X 13mm screws out of product package.
HOLDER SİDE
TABS
6
HOLDER SIDE TABS
BLIND CASE
IMAGE 2
