Install Protection Cover
Install Protection Cover
Use this task to install the transparent plastic protection cover to enclose the faceplate of the line card, after
the fibers are connected on the faceplate of the line card.
Procedure
Step 1
Align the guide pin available at the back side of the cover with the hole in the line card.

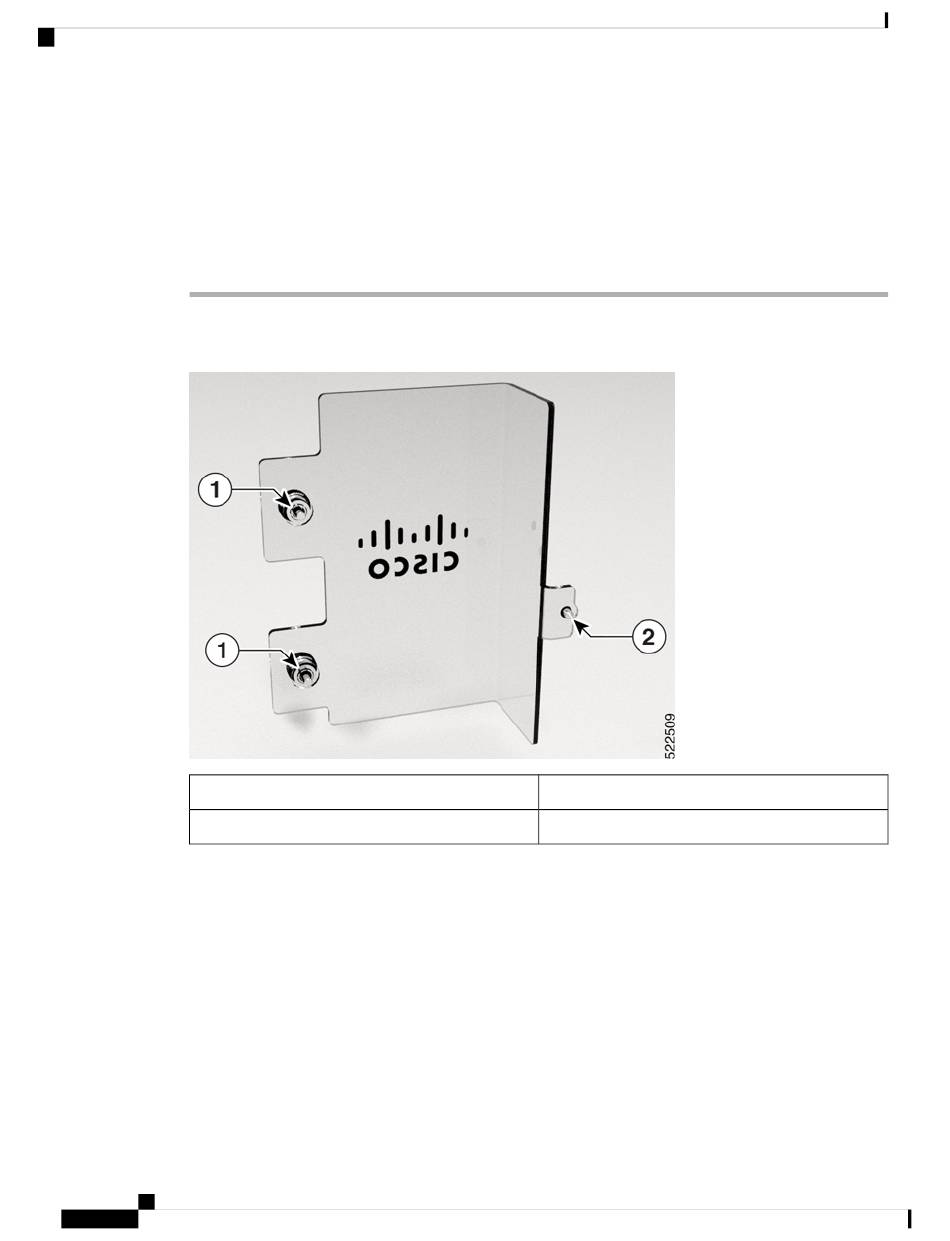

Figure 13: Rear View of the Protection Cover
1
2
Step 2 Align the standoffs with the holes available in the chassis mounting brackets, and fasten the standoffs into
the holes.
Install Cisco NCS 1010 Modules
12
Install Cisco NCS 1010 Modules
Captive screws
Guide pin
