Install Cisco NCS 1010 Modules

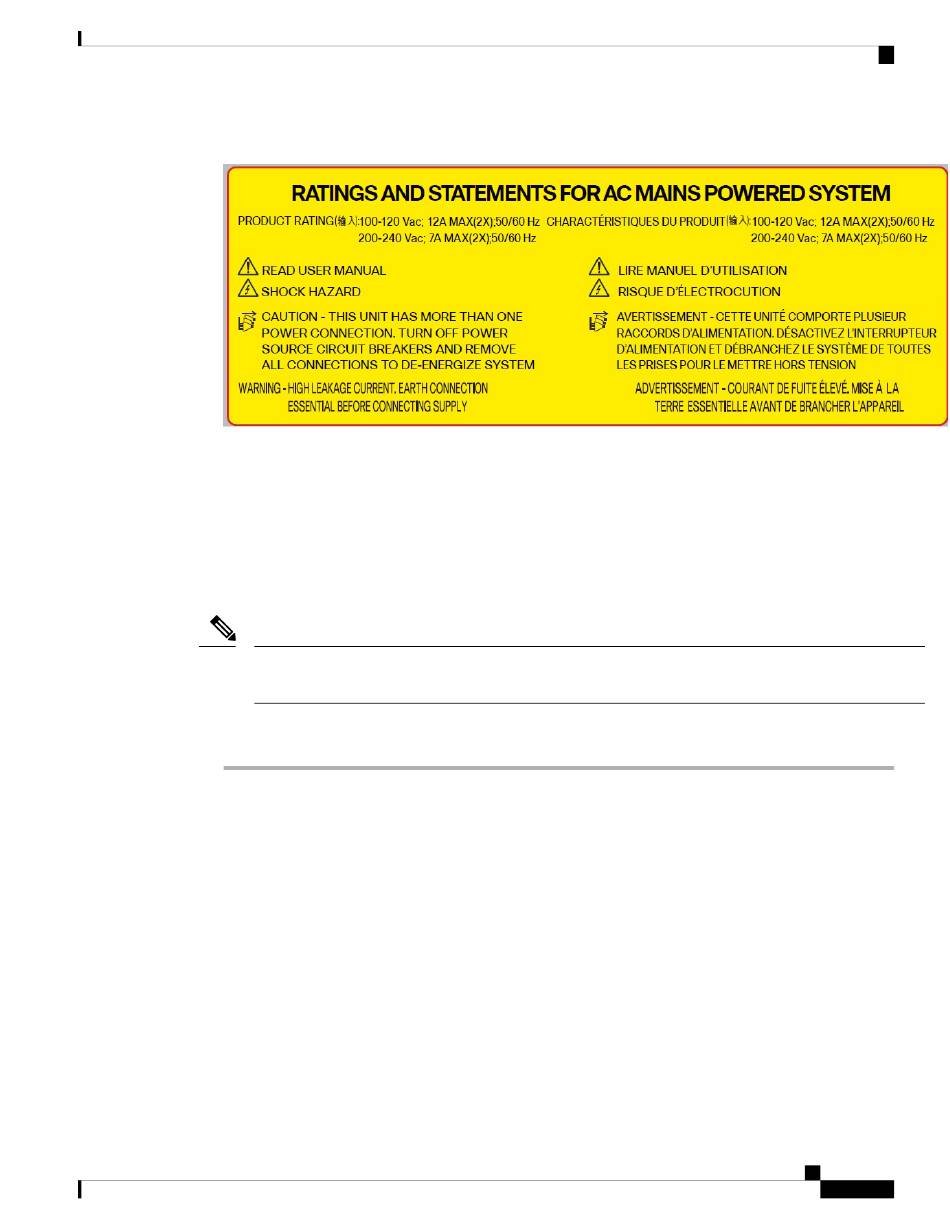

Figure 2: Rating Label for AC Power
AC power ratings: The voltage rating value for AC power ranges either 200–240 or 100–127 V depending
on the standards in various countries.
• Input: 100-120Vac, 12A, 50-60HzDC
Outputs: +12V, 67A Max. +12Vsb, 3A Max. Total output power 800W.
• Input: 200-240Vac, 7A, 50-60HzDC
Outputs: +12V, 87.5A Max. +12Vsb, 3A Max. Total output power 1050W.
Note A dual pole breaker is needed for the installation. The rating of the dual pole breaker for each feed is 16A for
input voltage 200–240 Vac, and 20A for input voltage 100–127 Vac.
Procedure
Step 1
Verify that the AC cable is installed in the correct AC source panel. Ensure that either the fuse is removed or
the circuit breaker is in the off position and locked out.
Step 2 Attach the AC power cable to the cable connector in the AC power module. See
for the supported AC power cables.
Connect AC Power to Cisco NCS 1010
