Application Guidelines

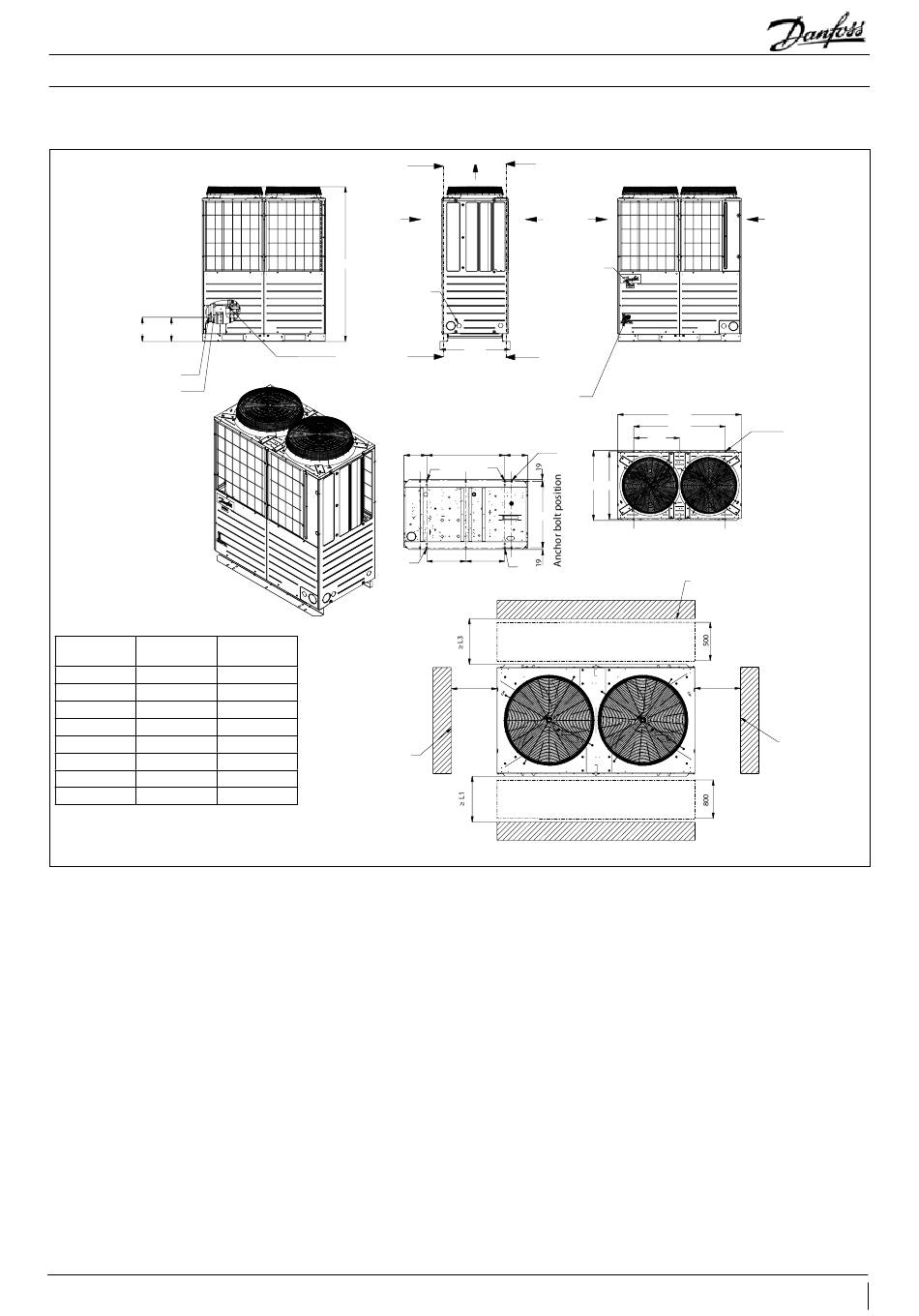

2.5 Dimensions
264.4
261.6
BACK VIEW
SECTION X-X
Suction pipe
Liquid pipe
Installation
I
Example
L1
800
L2
10
L3
800
L4
100(*)
H1
1500
H2
Not limited
H3
1000
H4
Not limited
* Be sure to keep more than 100mm spaces when
the unit contacts with a wall. If the unit installed in
succession, 10mm spaces is enough.
© Danfoss | Climate Solutions | 2023.02
2. Product description
AIR IN
1691.5
Power cable
inlet
Sight glass
ISO VIEW
II
800
10
800
500
1500
Wall height ≤ H2
Not limited
1000
Not limited
AIR OUT
Z
X
AIR IN
Check port for
7-Segment display
764
Z
X
RIGHT VIEW
Power cable connection
terminal block
28 X 14
250
850
250
10 Places
F
F
726
425
425
F
F
*4 places M10 x 4*
Service space
≥ L2
Service space
FRONT VIEW
SECTION Z-Z
1350
1000
28 X 14
500
6 Places
764
740
TOP VIEW
Wall height ≤ H3
≥ L4
1. All dimensions are in mm
2. Dimensions are not to scale
