4  DIMENSIONS, CLEARANCES

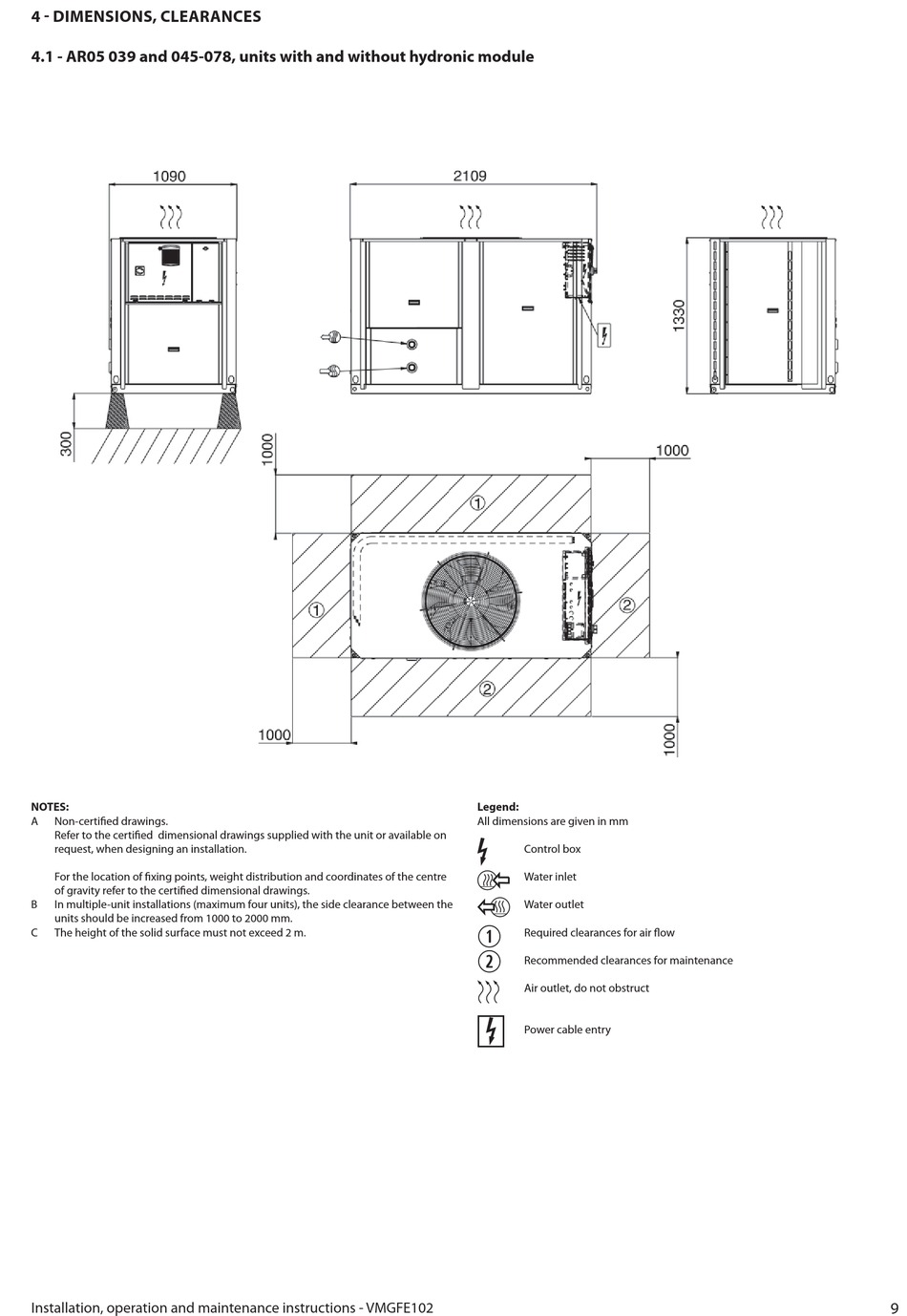

4.1 - AR05 039 and 045-078, units with and without hydronic module

NOTES:
A Non-certifi ed drawings.
Refer to the certifi ed dimensional drawings supplied with the unit or available on
request, when designing an installation.
For the location of fi xing points, weight distribution and coordinates of the centre
of gravity refer to the certifi ed dimensional drawings.
B In multiple-unit installations (maximum four units), the side clearance between the
units should be increased from 1000 to 2000 mm.
C The height of the solid surface must not exceed 2 m.
Installation, operation and maintenance instructions - VMGFE102
Legend:
All dimensions are given in mm
Control box
Water inlet
Water outlet

Required clearances for air fl ow

Recommended clearances for maintenance
Air outlet, do not obstruct
Power cable entry
