Installation Guide
4
The heat pump
4.1
Dimensions and connections

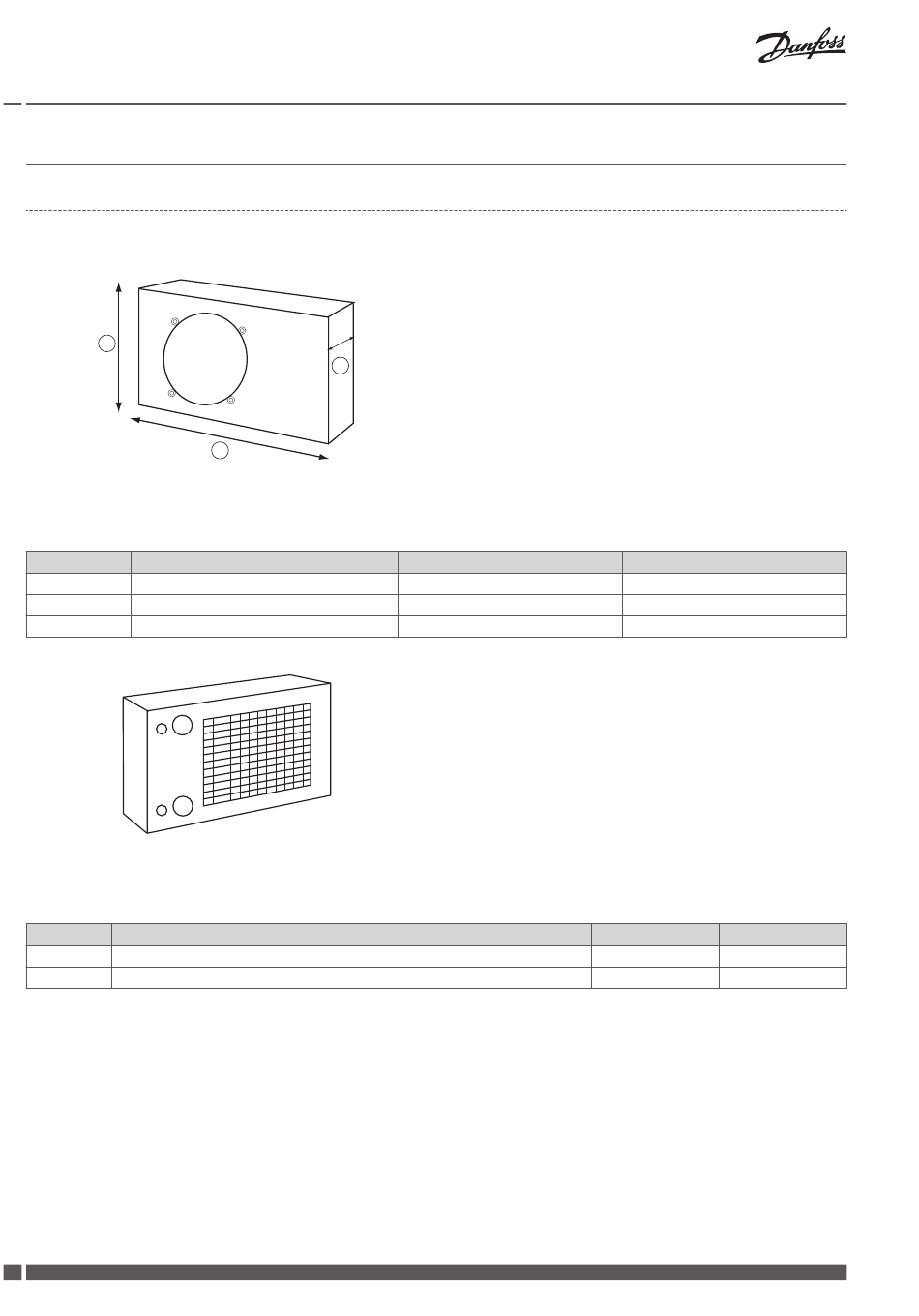

The dimensions and connections of the heat pump is described in the pictures and tables below.
1
Fig. 3: Dimensions
Pos
Description
1
Height
2
Length
3
Width
1
2
Fig. 4: Piping connections (rear side)
Pos
Description
1
Supply line pipe (red label)
2
Return line pipe (blue label)
10
DHP-AT
3
2
VMGFI302
6kW
660 mm
1028 mm
460 mm
8kW
760 mm
1028 mm
460 mm
6kW
8kW
DN 20
DN 25
DN 20
DN 25
Danfoss Heating Solutions
