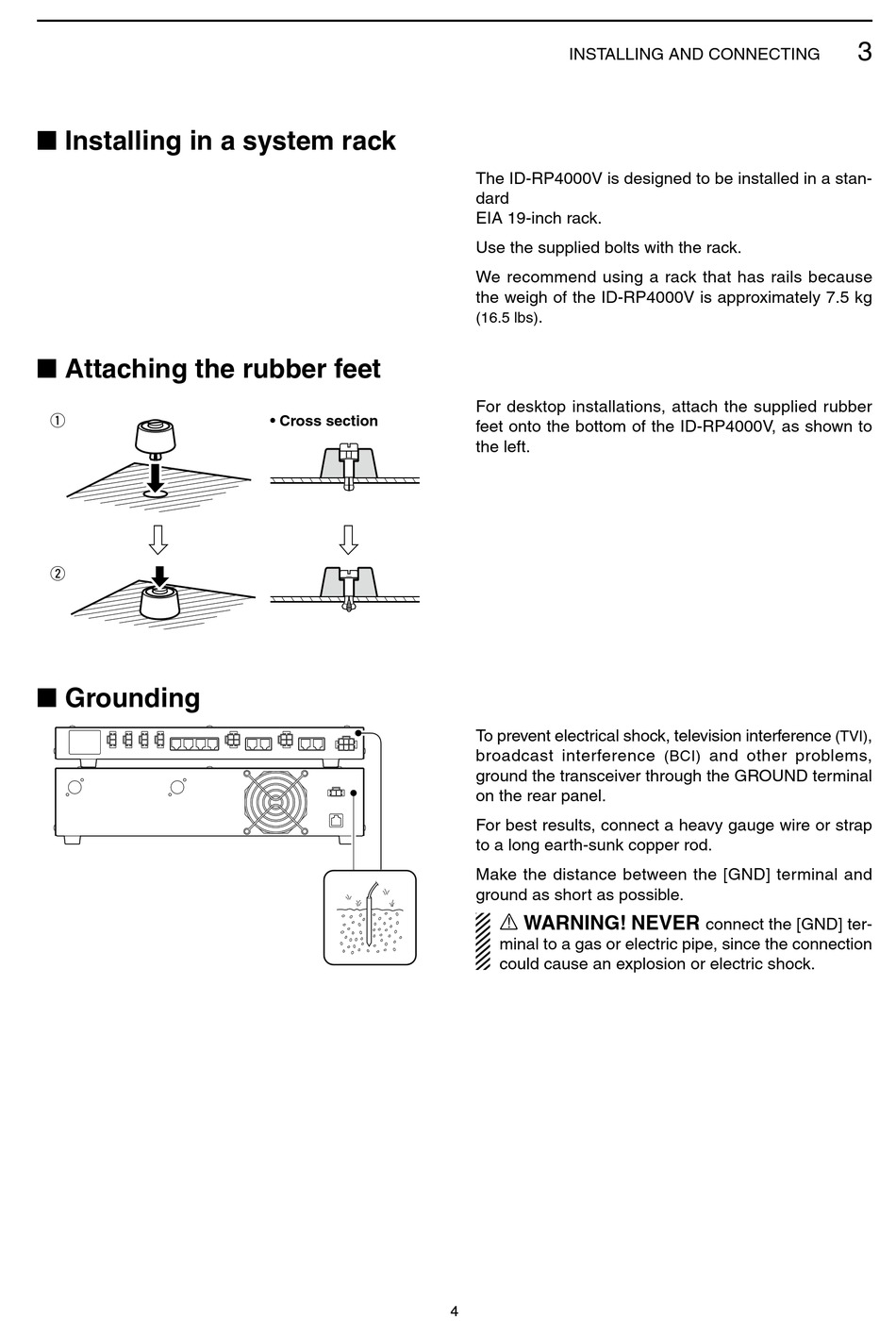

Installing in a system rack

■

Attaching the rubber feet

■
q
w

Grounding

■
• Cross section
INSTALLING AND CONNECTING
The ID-RP4000V is designed to be installed in a stan-
dard
EIA 19-inch rack.
Use the supplied bolts with the rack.
We recommend using a rack that has rails because
the weigh of the ID-RP4000V is approximately 7.5 kg
.
(16.5 lbs)
For desktop installations, attach the supplied rubber
feet onto the bottom of the ID-RP4000V, as shown to
the left.
To prevent electrical shock, television interference
broadcast interference
ground the transceiver through the GROUND terminal
on the rear panel.
For best results, connect a heavy gauge wire or strap
to a long earth-sunk copper rod.
Make the distance between the [GND] terminal and
ground as short as possible.
R WARNING! NEVER
minal to a gas or electric pipe, since the connection
could cause an explosion or electric shock.
4 4
and other problems,
(BCI)
connect the [GND] ter-
3
,
(TVI)
