Wiring Diagrams; Installation Instructions - SIGNIFY GARDCO OptiForm OPF-S Installation Instructions Manual

OPF-S/OPF-M/OPS-L

Installation Instructions

442296100981 rev:c

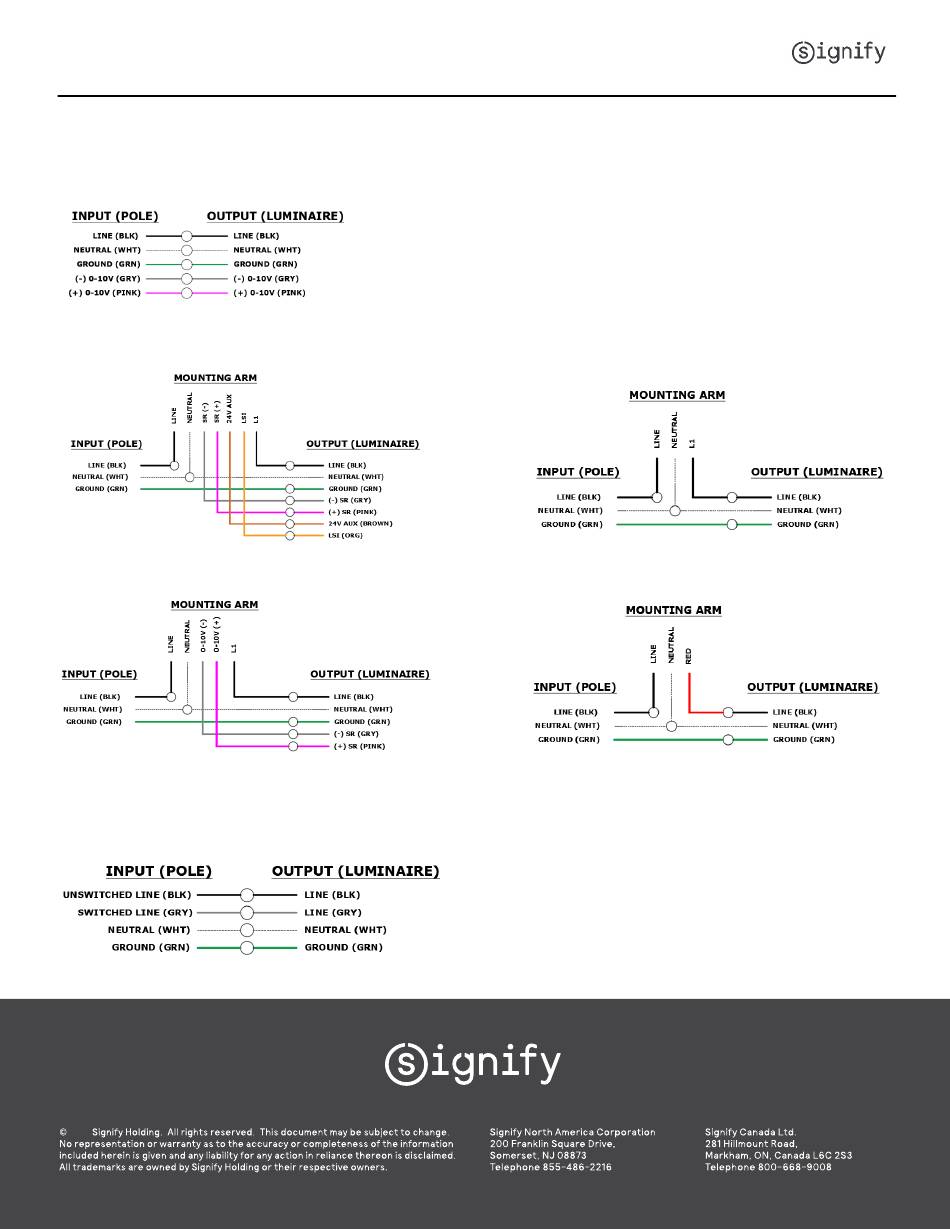

Wiring Diagrams

0-10V/DLEA
TR7
(Receptacle: 7 pins)
TLP
(Receptacle: 3 pins)
TR5 PCB
(Receptacle: 5 pins) (Photo control button)
EM:
Emergency (Only available with OPF-S-P01, P02, P03)
