SIGNIFY GARDCO OptiForm OPF-S Installation Instructions Manual page 4

OPF-S/OPF-M/OPS-L

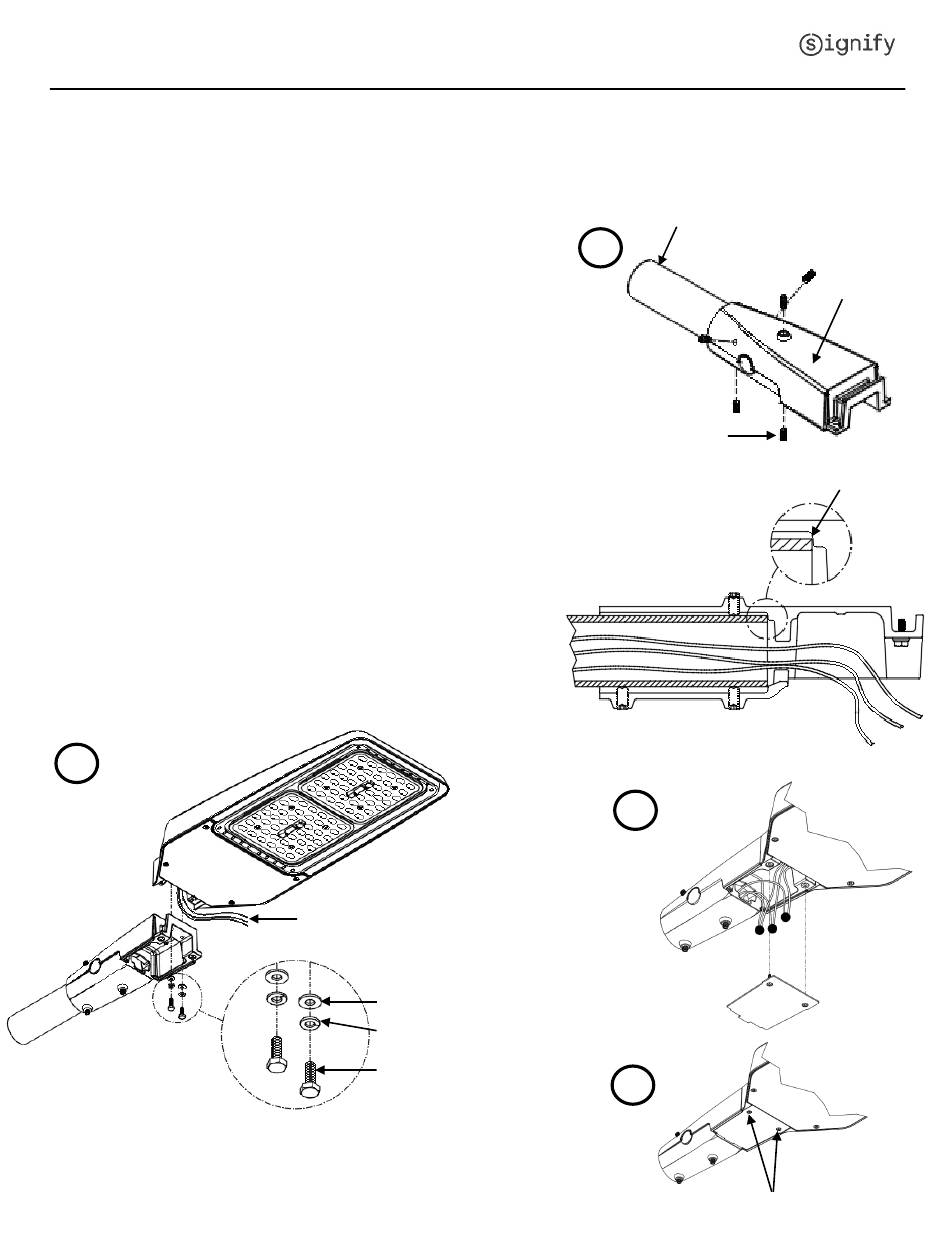

Installation with Mast Arm: MAR
1. Slip the Mast Arm (MAR) over the 2-3/8'' tenon.
Make sure to not pinch any wires.
Secure the Mast Arm over the tenon using the
(5x) 3/8-16 x 3/4" set screws. Torque: 30ft-lbs
Note:
Ensure that the tenon contact the Mast Arm inner wall.
2. To avoid pinching or crushing
Slide the fixture on the mounting arm.
Tighten the mounting bolt (2x)1/4''-20 x 3/4'', split washer
and flat washer. Torque:
3. Once luminaire is installed and hardware is properly torqued, make supply
wiring connections according to the appropriate wiring diagram.
Note:
* 0-10V AND OVERRIDE WIRES OPTIONAL
* WIRE NUTS SUPPLIED BY OTHERS
4. Install the Arm cover using the #10-24 screws. Torque: 18in-lbs
2
page
www.gardcolighting.com
Installation Instructions
fold fixture wires towards the
130in-lbs
Wires
Flat washer
Split washer
1/4-20 x 3/4'' bolt
1
front.
(5x) 3/8-16
set screw
3
4
442296100981 rev:c
2-3/8'' tenon
Mast Arm
Mast Arm
Inner wall
10-24 screw
