SIGNIFY GARDCO OptiForm OPF-S Installation Instructions Manual page 5

OPF-S/OPF-M/OPS-L
Installation with Wall Arm: WAL

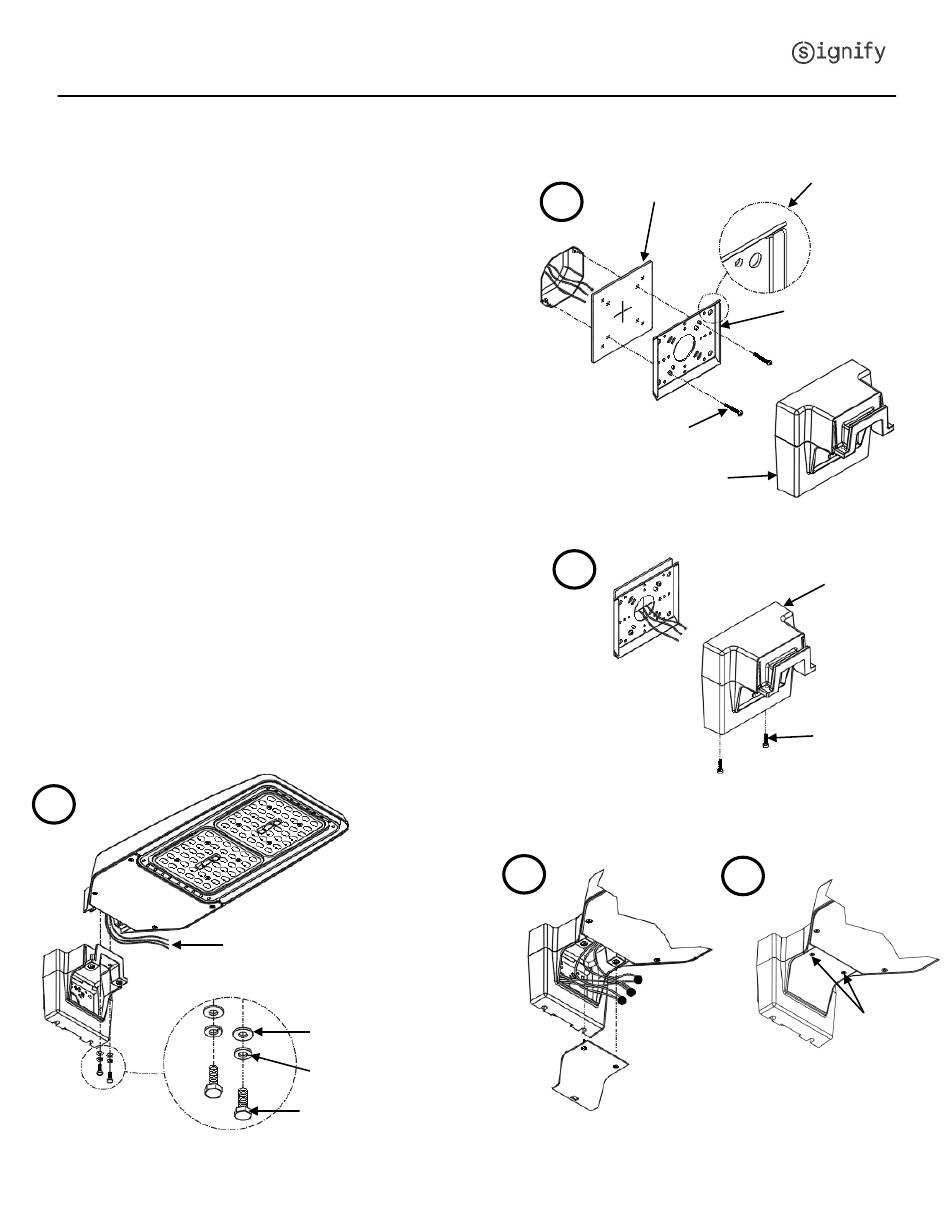

1. On the outlet box install the gasket foam. Install the wall plate over
the foam gasket using the outlet mounting screws (not included).
Route the wires through the center of both foam gasket and wall
plate.
Note: Do not mount the OPF-M and OPF-L directly on the outlet box.
Use the mounting plate corner holes to fix directly unto the building
structure.
2. Install the Wall arm casting on the wall plate using the (2x) 10-24
allen screws. Use a 5/32" allen key (not included).
3. Fold fixture wires towards the front. Slide the fixture on the
mounting arm. Tighten the mounting bolt (2x)1/4''-20 x 3/4'', split
washer and flat washer. Torque:
4. Once luminaire is installed and hardware is properly torqued, make
supply wiring connections according to the appropriate wiring
diagram.
Note:
* 0-10V AND OVERRIDE WIRES OPTIONAL
* WIRE NUTS SUPPLIED BY OTHERS
5. Install the Arm cover using the #10-24 screw. Torque: 18in-lbs
3
page
www.gardcolighting.com
Installation Instructions
130in-lbs
Wires
Flat washer
Split washer
1/4-20 x 3/4'' bolt
Foam gasket
1
Outlet screw
Wall arm
2
4
442296100981 rev:c
Use these
mounting holes for
OPF-M and OPF-L
Wall plate
Wall arm
10-24 allen screw
5
10-24 screw
