IT-ES3012G-IU Series
Full Gigabit Industrial Ethernet
Switch
User Manual
_______________________________________________
【Summarize】

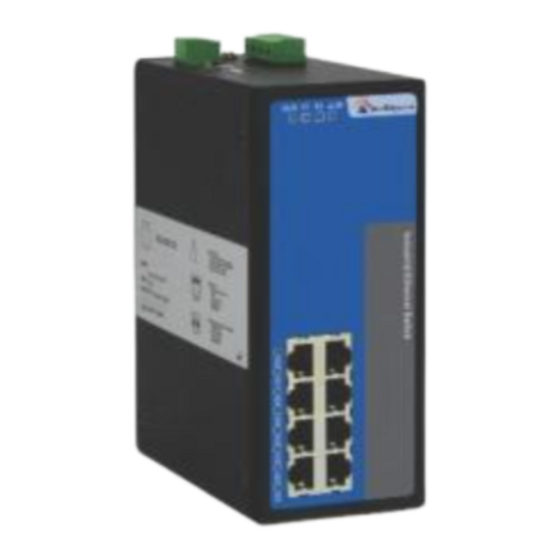

The IT-ES3012G-IU series switches are high-performance,
cost-effective,
industrial-grade
unmanaged
switches designed for the power industry. These switches
support 8 10/100/1000Base-T(X) Ethernet ports and 4
1000Base-SFP slots (optional). All RJ45 Ethernet ports of
switches support automatic flow control, full/half duplex
mode and MDI / MDI-X adaptation.
Products with fanless, low power design, work performance
more stable. Products meet the FCC, CE standards, -40 ~
75 ℃ operating temperature range to adapt to the harsh
working environment, all components are selected industrial
grade, to achieve a high reliability, for the power industry
users Ethernet device connection Provide a reliable,
economical solution.
【Packing list】
The industrial Ethernet switch is shipped with the following
items. If any of these items are missing or damaged, please
contact your customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
User manual ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
Certificate of quality ⅹ 1
【Feature】
Supports 8 10/100/1000Base-T(X) RJ45 Ethernet ports
and 4 1000Base-SFP fiber ports (optional)
Supports MAC address auto-learning, auto-aging
Supports 8K MAC address
Supports 24Gbps backboard bandwidth
Supports redundancy DC power supply(12～48VDC)
Supports 1 channel relay alarm output
Industrial grade 4 design, -40-75℃ working temperature
IP40 protection grade, DIN-Rail mounting

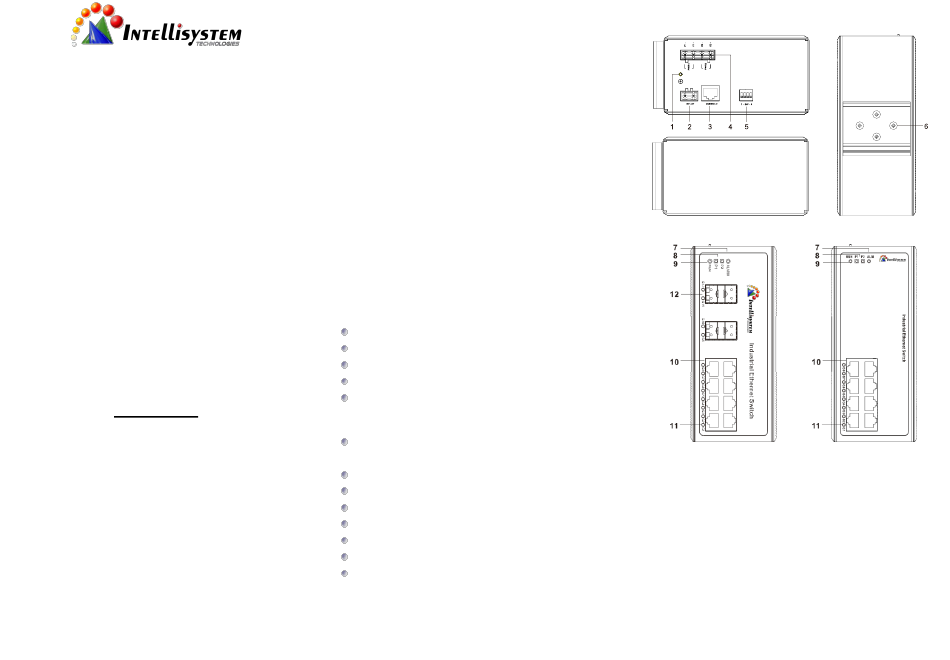

【Panel layout】
Vertical view and bottom view
Ethernet
Front view
IT-ES3012G-IU-4GS
1.
Ground screw
2.
Terminal block for relay output
3.
Console port
4.
Terminal block for power input
5.
6.
DIN-Rail mounting kit
7.
Relay alarm indicator
8.
Power indicator
9.
System running indicator
10. Gigabit RJ45 port
11. Gigabit Ethernet port Link/ACT indicator
12. Gigabit SFP port
Rear view
IT-ES3012G-IU-8GT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intellisystem IT-ES3012G-IU Series
Summary of Contents for Intellisystem IT-ES3012G-IU Series
- Page 1 【Summarize】 【Panel layout】 The IT-ES3012G-IU series switches are high-performance, Vertical view and bottom view Rear view cost-effective, industrial-grade unmanaged Ethernet switches designed for the power industry. These switches support 8 10/100/1000Base-T(X) Ethernet ports and 4 1000Base-SFP slots (optional). All RJ45 Ethernet ports of switches support automatic flow control, full/half duplex mode and MDI / MDI-X adaptation.
- Page 2 【Power supply input】 【Relay connection】 10/100Base-T(X) MDI (straight-through cable) Relay access terminals in the top panel of the device. Between the two terminal relay, as an open circuit state in normal no alarm state, when there is any alarm information The switch top panel provides a 4-pin power supply input to the closed state.
- Page 3 【Installation】 1000Base SFP fiber port (mini-GBIC) Wiring Requirements 1000Base-SFP fiber port adopts Gigabit mini-GBIC Cable laying needs to meet the following requirements: Before installation, confirm that the work environment meets transmission, can choose different SFP module according to 1. It is needed to check whether the type, quantity and the installation requirements, including the power needs and different transfer distance.
- Page 4 Alarm indicator: ALARM Power supply Input Voltage: 12～48VDC Type of input: 4-pin 7.62 mm spacing terminal block DC support reverse connection DC support redundant power supply Consumption Intellisystem Technology IT-ES3012G-IU-4GS No-load consumption: 4.85W@24VDC Full-load consumption: 10.32W@24VDC IT-ES3012G-IU-8GT No-load consumption: 4.35W@24VDC...
