- Page 1 IT-ES7120-IM-4GS Series Managed Industrial Ethernet Switch User Manual...
-
Page 2: Packing List

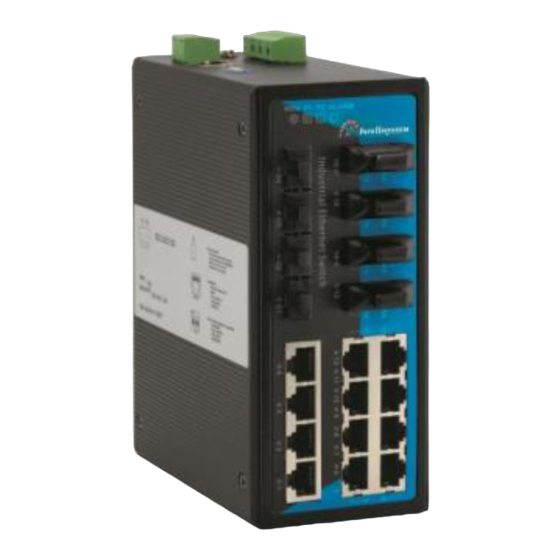

【Summarize】 IT-ES7120-IM-4GS series is an industrial grade, managed and redundancy Ethernet switch. The IT-ES7120-IM-4GS-P (12-48VDC) industrial Ethernet switches consists of 16 Ethernet ports and 4 gigabit ports. The IT-ES7120-IM-4GS-2F-P (12-48VDC) consists of 14 Ethernet ports, 2 Fiber ports and 4 gigabit ports. The IT-ES7120-IM-4GS-4F-P (12-48VDC) consists of 12 Ethernet ports, 4 Fiber ports and 4 gigabit ports that provide an economical solution for your industrial Ethernet connection. -
Page 3: Panel Layout
Reliable Industrial grade design Industrial grade 4 design, -40-75℃ work temperature No fan deign IP40 protection grade DIN rail and wall mount 【Panel layout】 IT-ES7120-IM-4GS series Rear view view Top view below IT-ES7120-IM-4GS-P (12-48VDC) Systems running LED The power LED... -
Page 4: Power Supply Input
【Power supply input】 IT-ES7120-IM-4GS series front panel provided 4 bit power supply input terminal block, support DC input. DC power supply input supported redundancy function, provided PWR1 and PWR2 power input, can use for single, and can connect 2 sepa rately power supply system, use 1 pair terminal block connect the device at the same time. -
Page 5: Appearance And Dimensions
Front view Top view Important notice: 1. Power ON operation: first of all, insert power cable’s terminal block into device’s power port, then insert power supply plug into power source 2. Power OFF operation: First off all, unpin power plug, then strike the terminal block, please take care of operation sequence. 【Appearance and dimensions】... -
Page 6: Console Port
【Console port】 This series product provided 1pcs procedure test port based in serial port. It adopts RJ45 interface, located in top panel, can configure related command through RJ45 to DB9 female cable. 【DIP switch】 Top panel provided 4 bits DIP switch to do function configure (OFF is default factory). 1 is a configuration file to download. 2 is recovery default factory. - Page 7 MDI (straight-through cable) MDI-X (Cross-over cable) MDI/MDI-X auto connection makes switch easy to use for customers without considering the type of network cable. 100Base-FX Fiber port 100Base-FX full-duplex SM or MM port, SC/ST/FC type .The fiber port must be used in pair, TX (transmit) port connect remote switch’s RX (receive) port;...
-
Page 8: Led Indicators
【LED Indicators】 LED indictor light on the front panel of product, the function of each LED is described in the table as below. System Indication LED State Description Power is being supplied to power input PWR input (P1, P2) Power is not being supplied to power input PWR input ON/OFF System is not running well... -
Page 9: Specifications
5. Environment：working temperature -40～75℃ Storage Temperature: -40～85℃ Relative humidity 5%～95% Wiring Requirements Cable laying need to meet the following requirements, 1. It is needed to check whether the type, quantity and specification of cable match the requirement before cable laying; 2. - Page 10 Interfaces Electric port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect 100M optic fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi-mode (2Km), wavelength: 1310nm, 1550nm 1000M fiber port: 1000Base-FX（LC interface） Console port: debug serial port carry out CLI command Alarm port: 2 bit terminal block 1 channel relay alarm output Transfer distance:...
- Page 11 Full load consumption: 14.35W@24VDC Working environment: Working temperature: -40～75℃ Storage temperature:-40～85℃ Relative Humidity: 5%~95% (no condensation) Mechanical Structure: Shell: IP40 protect grade, metal shell Installation: DIN rail and wall mount Size（W×H×D）: 160mm×70mm×130mm Industry Standards: EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4...
