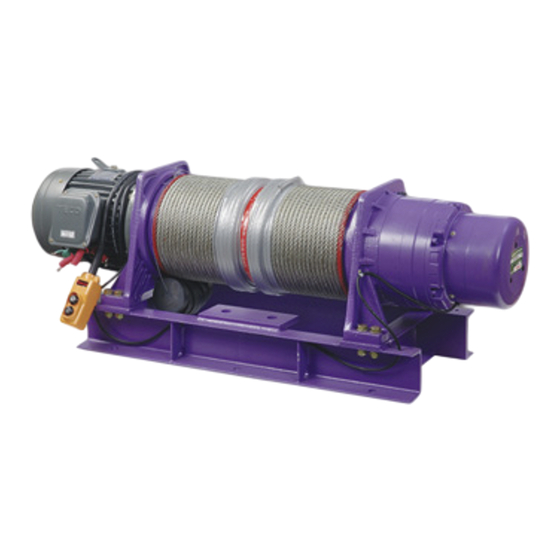

Comeup CEP-3001-9MD Manual

Model: CEP-3001-9/11/14MD
 Feature
Lifting Capacity 3,000 kg, double fall load
Power Source 3 phase 50 Hz 380V
Motor 7.5 hp x 4 p
Drum Grooved
12 mm x 22 m for PN:275950
Wire Rope
12 mm x 28 m for PN:277339
12 mm x 34 m for PN:270105
8 m for PN:275950，11 m for PN:277339，14 m for PN:270105
Lifting Height
Lifting Speed 7 m/min, double fall load
Brake Electromagnetic spring-applied failsafe brake
Control
Pendant switch w/cord 3.5 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage
Warning
．The winch is not intended to be used in any manner for the movement or
lifting of personnel.
．The lifting capacity shown is based on single fall rope on the drum.
．The rope winding on the drum shall remain 3 wraps from the drum.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
Electric Grooved Winch
P/N: 275950-8MD 277339-11MD 270105-14MD 380V50Hz
2
x 5C x 3 m
Maintenance and Inspection
Classification of checks
Periodical
Checking Item
Daily One Three One
month month year
Label and the
Marking
◎
Winding-in
direction of
◎
Installation
Loosing and
centre run-out
◎
◎
Condition of
clamping of
◎
Wearing of
◎
Control contact point
Outer damage
Switch
◎
condition of
◎ ◎
Condition of
◎
◎
of insulation
Motor
◎
Braking gap
◎
Wearing of
◎
Brake
Performance
◎ ◎
◎
Gear
Condition of
◎
grease feeding
Checking
Checking Reference
Method
Visual Existence of label
like
Visual , Fleet angle
measuring θ=within 3.0 degree
wire rope
Checking of
Existence of abnormality
installing bolts
foundation
Working Manual Reasonable actuation
Decomposition Confirming of accuracy
checking of fastening condition
wiring
To be free from
Decomposition
remarkable wearing and
checking
damage
To be free from exposure
Visual
of lead of conductive wire
Attaching Existence of
Visual abnormalities of
earth line connecting wires
Measure with
500v insulation- 1MΩ min
insulation
Resistance tester
Condition Measure with
1MΩ min
resistance tester
Staining Decomposition Existence of
damage check abnormalities
Measuring Within 0.35 mm
To be free from
Decomposition
remarkable wear and
disc check
damage
Distance to be not more
than 1.5% of rope length
Visual
to be wound-in during 1
minute
To be free from
Damage , Decomposition
remarkable wear and
wearing check
damage
Existence of suitability of
amount and deterioration
Measuring with grease Mobilux
EP2.Shell Unedo 2 or
Esso Beacon EP2
