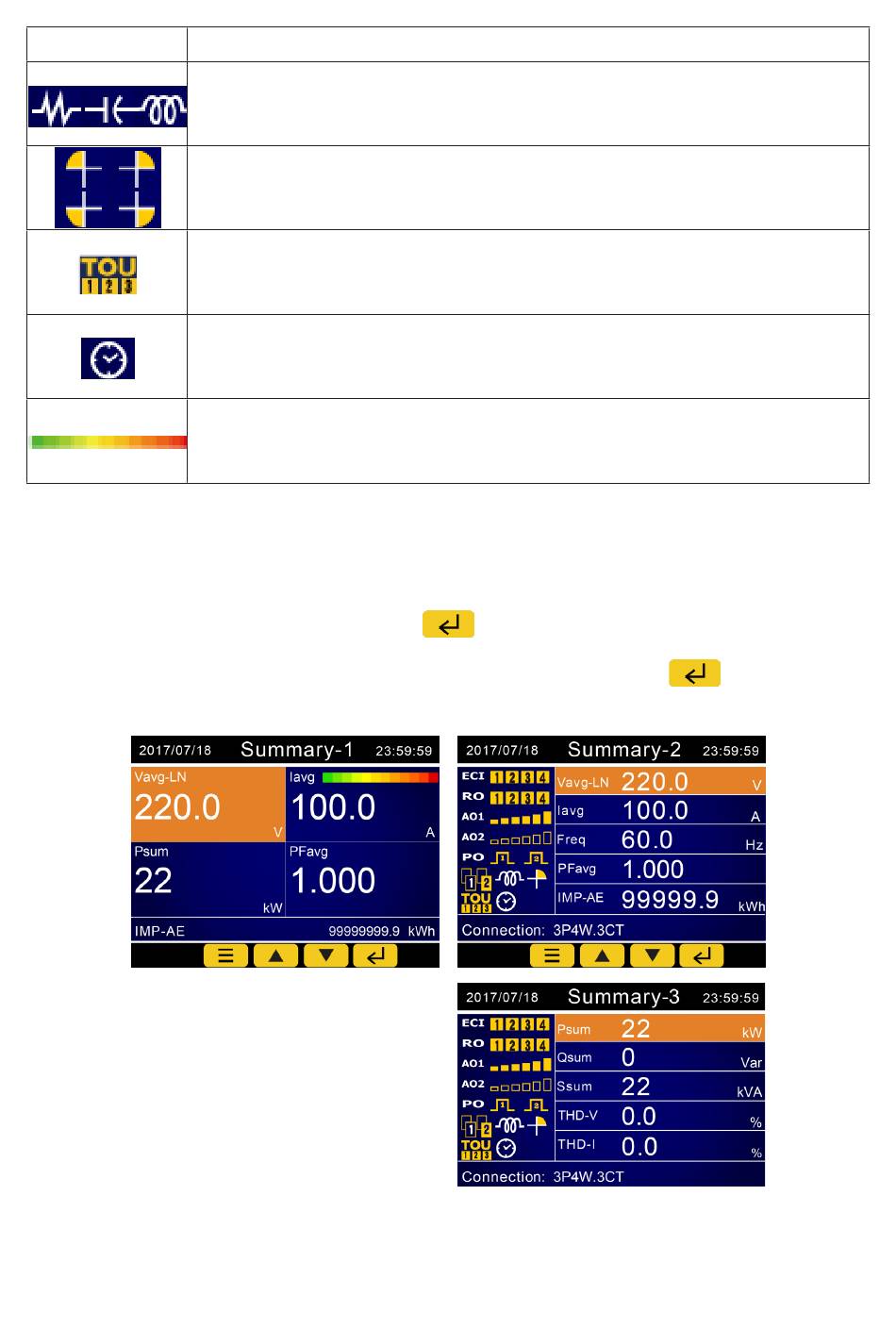

Load type indication, resistive / capacitive / inductive type.
System power 1 ~ 4 quadrant indication.
TOU execute indication, the numbers below are represented by left to
right respectively:
Season / Time table / Segment number
Data logging execute indication.
Current load indication, each cell represents a 10% load percentage.
3.3 Measurement data display and key operation
The main screen of the meter has three kinds of summary display page can be set,
also can get these pages scrolling. Press
see the screen appears yellow cursor, press the up and down keys to move the yellow
cursor to the measurement parameters you want to query and press
get details of the parameters.
Description
in any of the summary display pages, will
10
again, then can
