Buttons
Use the sensor buttons (SELECT)(TEACH), (+)(DISP), and (-)(MODE) to program the sensor.
(SELECT)(TEACH)
• Press to select menu items in Setup mode
• Press and hold for longer than 2 seconds to start the
currently selected TEACH mode (the default is two-point
TEACH)
(-)(MODE)
• Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to
decrease numeric values
• Press and hold for longer than 2 seconds to enter Setup
mode

Laser Description and Safety Information

CAUTION:
• Return defective units to the manufacturer.
• Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
• Do not attempt to disassemble this sensor for repair. A defective unit must be returned to the
manufacturer.
≤ 510 mm Models - IEC 60825-1:2007 Class 1 Laser
Class 1 lasers are lasers that are safe under reasonably foreseeable conditions of operation, including the use of optical
instruments for intrabeam viewing.
Laser wavelength: 655 nm
> 510 mm Models - IEC 60825-1:2014 Class 1 Laser
Class 1 lasers are lasers that are safe under reasonably foreseeable conditions of operation, including the use of optical
instruments for intrabeam viewing.
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXCEPT FOR CONFORMANCE WITH
IEC 60825-1:2014, AS DESCRIBED IN
LASER NOTICE No. 56, DATED MAY 8, 2019.
BANNER ENGINEERING CORP.
9714 10TH AVENUE NORTH
MINNEAPOLIS, MN 55441
Laser wavelength: 655 nm
2

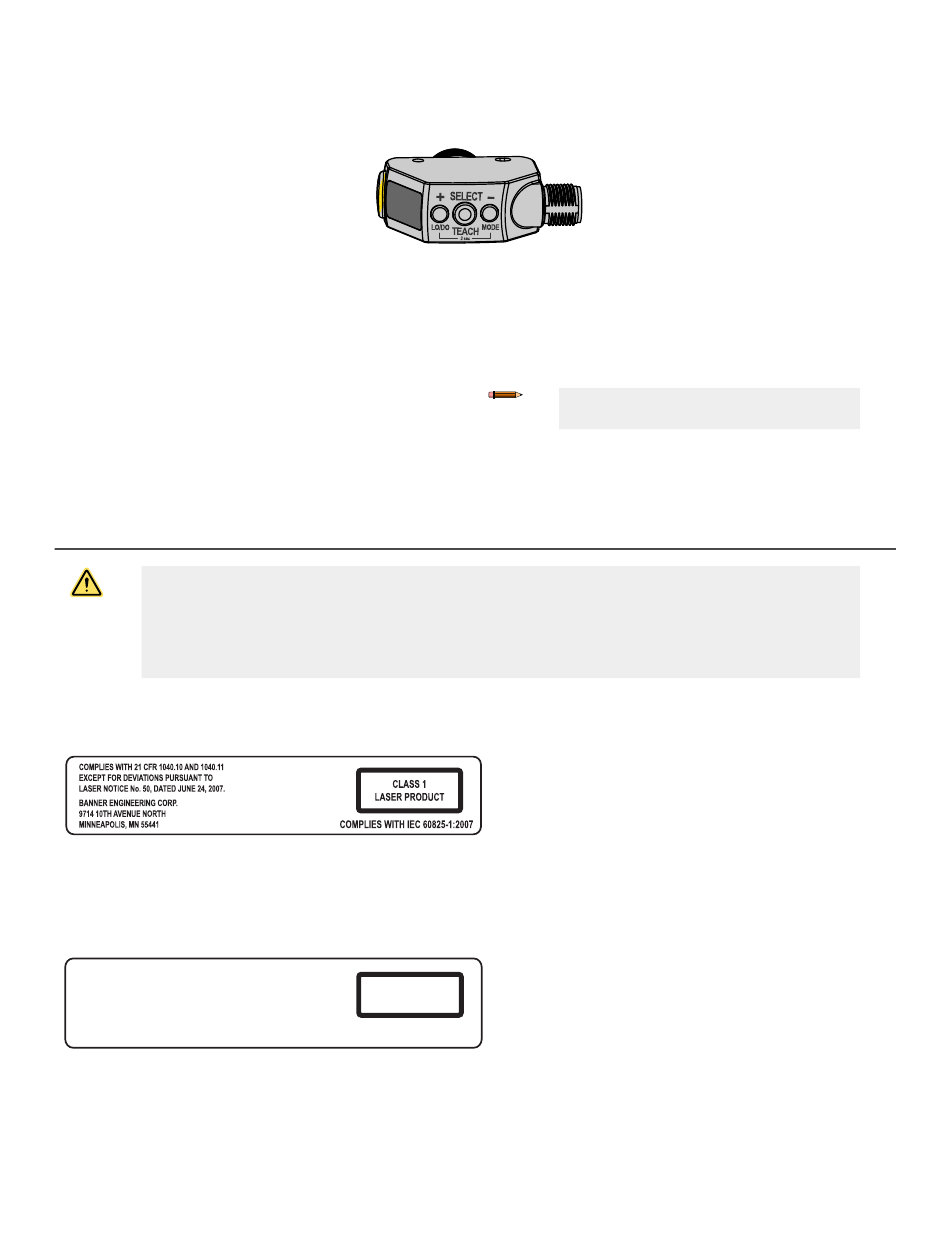

Figure 4. Buttons
(+)(DISP)
•
•
•
Output: < 0.20 mW
CLASS 1
LASER PRODUCT
COMPLIES WITH IEC 60825-1:2014
Output: < 0.39 mW
www.bannerengineering.com - Tel: + 1 888 373 6767
Press to navigate the sensor menu in Setup mode
Press to change setting values; press and hold to
increase numeric values
Press and hold for longer than 2 seconds to switch
between light operate (LO) and dark operate (DO)
Note: When navigating the menu, the menu
items loop.
Pulse Duration: 7 µs to 2 ms
Pulse Duration: 7 µs to 2 ms
Q4X Stainless Steel Laser Sensor
P/N 181484 Rev. N
