Q4X Stainless Steel Laser Sensor with Dual
Discrete Outputs and IO-Link
Quick Start Guide
Class 1 laser CMOS sensor with dual outputs and IO-Link. Patent pending.
This guide is designed to help you set up and install the Q4X sensor with dual discrete outputs and IO-Link. For complete
information on programming, performance, troubleshooting, dimensions, and accessories, please refer to the Instruction
Manual at www.bannerengineering.com. Search for p/n 190074 to view the Instruction Manual. Use of this document
assumes familiarity with pertinent industry standards and practices.
For illustration purposes, the threaded barrel model Q4X images are used throughout this document.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to
serious injury or death. This device does not include the self-checking redundant circuitry necessary
to allow its use in personnel safety applications. A sensor failure or malfunction can cause either an
energized or de-energized sensor output condition.
Features
1

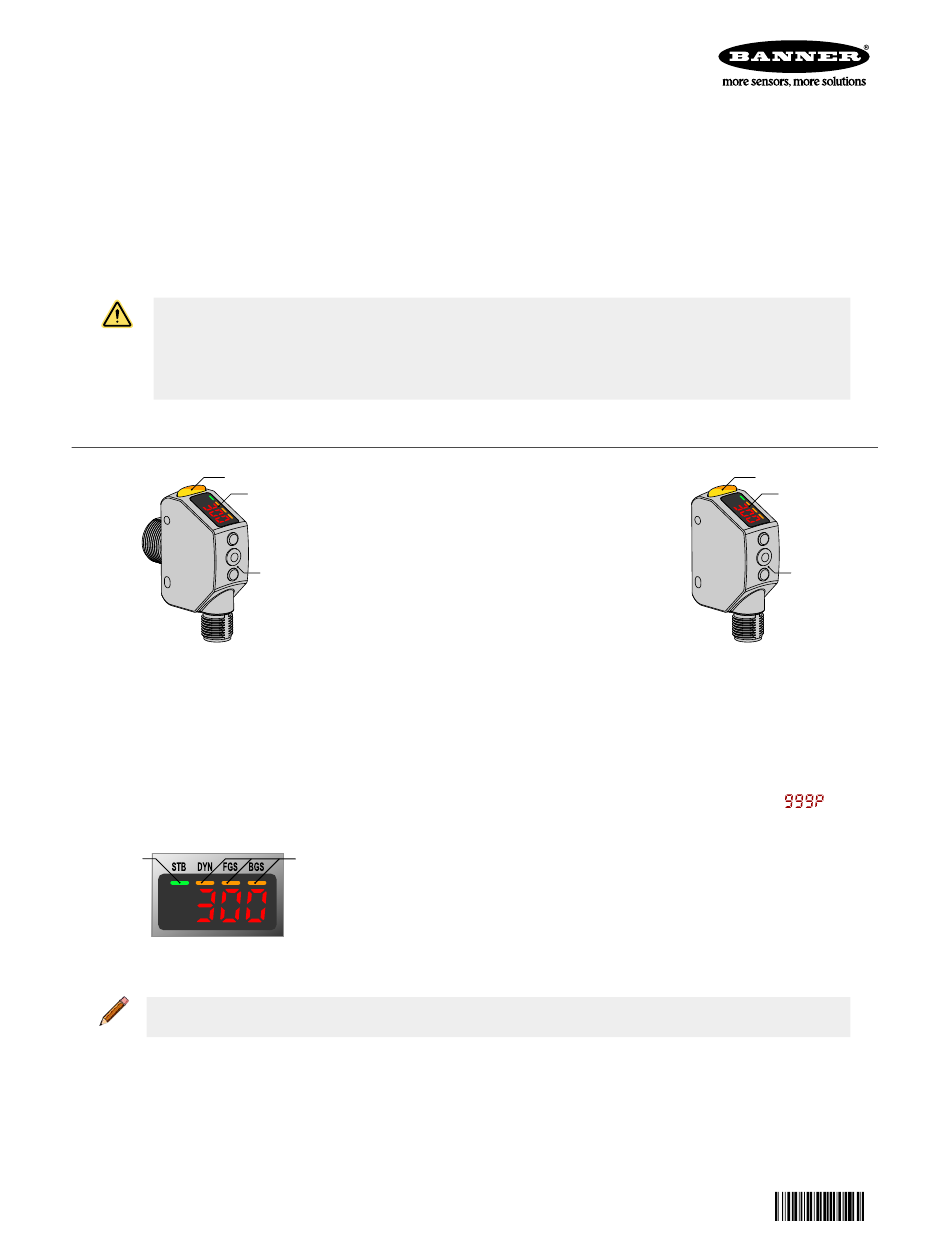

Figure 1. Sensor Features—Threaded Barrel
Models
Display and Indicators
The display is a 4-digit, 7-segment LED. The main screen is the Run mode screen.
For 2-pt, BGS, FGS, and DYN TEACH modes, the display shows the current distance to the target in millimeters. For dual
TEACH mode, the display shows the percentage matched to the taught reference surface. A display value of
indicates the sensor has not been taught.
1
Figure 3. Display in Run Mode
Note: The indicators represent the currently selected channel. However, if Output 2 is set to something
other than LO, DO, or Complementary, then the indicators represent the Channel 1 status.
Original Document
190073 Rev. E
2
1. Output Indicator (Amber)
3
2. Display
3. Buttons
2
1. Stability Indicator (STB—Green)
2. Active TEACH Indicators
DYN—Dynamic (Amber)
FGS—Foreground Suppression (Amber)
BGS—Background Suppression (Amber)
17 January 2017
1
2
3
Figure 2. Sensor Features—Flush Mount
Models
190073
