Banner Q4XTBLAF500-Q8 Quick Start Manual

Q4X Stainless Steel Laser Sensor
Quick Start Guide
Class 1 laser CMOS sensor with a discrete (PNP or NPN) output. Patent pending.
This guide is designed to help you set up and install the Q4X Sensor. For complete information on programming, performance,
troubleshooting, dimensions, and accessories, please refer to the Instruction Manual at www.bannerengineering.com. Search for p/n
181483 to view the Instruction Manual. Use of this document assumes familiarity with pertinent industry standards and practices.
For illustration purposes, the threaded barrel model Q4X images are used throughout this document.
WARNING:
• Do not use this device for personnel protection
• Using this device for personnel protection could result in serious injury or death.
• This device does not include the self-checking redundant circuitry necessary to allow its use in
personnel safety applications. A device failure or malfunction can cause either an energized (on) or de-
energized (off) output condition.
Features

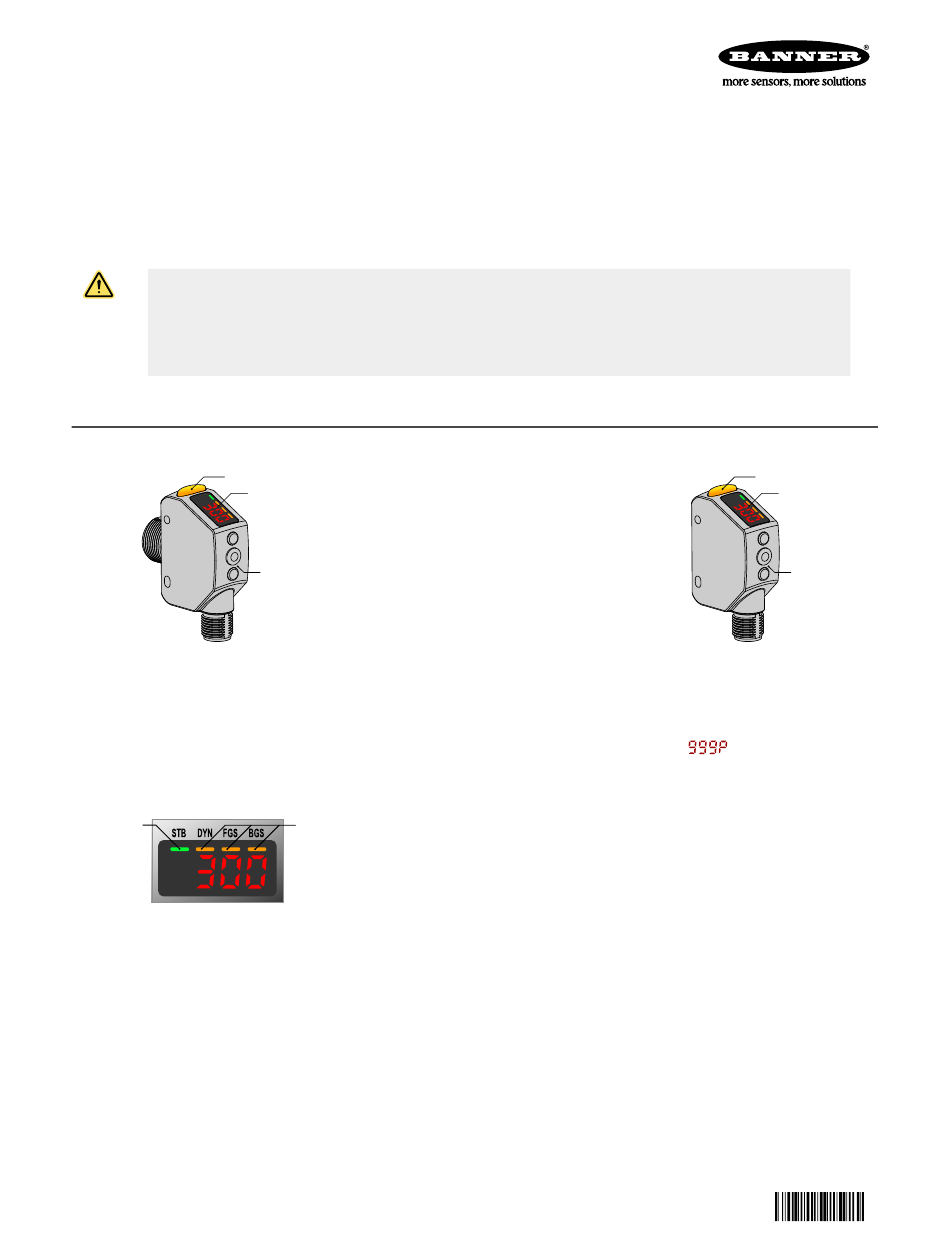

Figure 1. Sensor Features—Threaded Barrel Models
1
Display and Indicators
The display is a 4-digit, 7-segment LED. The main screen is the Run mode screen.
For 2-pt, BGS, FGS, and DYN TEACH modes, the display shows the current distance to the target in millimeters. For dual TEACH
mode, the display shows the percentage matched to the taught reference surface. A display value of
has not been taught.
Figure 3. Display in Run Mode
1
Output Indicator
• On—Outputs conducting (closed)
• Off—Outputs not conducting (open)
Stability Indicator (STB)
• On—Stable signal within the specified sensing range
• Flashing—Marginal signal, the target is outside the limits
of the specified sensing range, or a multiple peak
condition exists
• Off—No target detected within the specified sensing
range
Buttons
Use the sensor buttons (SELECT)(TEACH), (+)(DISP), and (-)(MODE) to program the sensor.
Original Document
181484 Rev. M
2
1. Output Indicator (Amber)
2. Display
3. Buttons
3
1. Stability Indicator (STB—Green)
2
2. Active TEACH Indicators
• DYN—Dynamic (Amber)
• FGS—Foreground Suppression (Amber)
• BGS—Background Suppression (Amber)
Active TEACH Indicators (DYN, FGS, and BGS)
• DYN, FGS, and BGS all off—Two-point TEACH mode
selected (default)
• DYN on—Dynamic TEACH mode selected
• FGS on—Foreground suppression TEACH mode
selected
• BGS on—Background suppression TEACH mode
selected
• DYN, FGS, and BGS all on—Dual TEACH mode
selected
22 June 2022
Figure 2. Sensor Features—Flush Mount Models
1
2
3
indicates the sensor
181484
