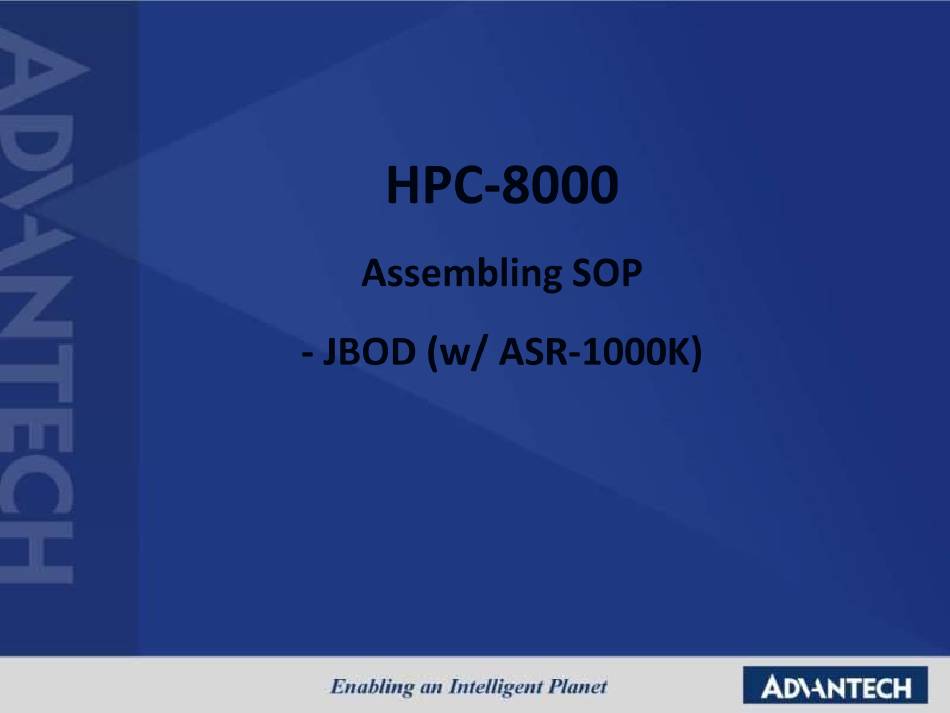

HPC-8000
Assembling SOP
- JBOD (w/ ASR-1000K)
ISG HPC
Gallante Wan
July 2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPC-8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech HPC-8000

Summary of Contents for Advantech HPC-8000

  • Page 1 HPC-8000 Assembling SOP - JBOD (w/ ASR-1000K) ISG HPC Gallante Wan July 2016...
  • Page 2 Assembling SOP for Storage Server  Install RPSU  Install SAS cable  Install Sponges (HPC-8212/8224/8424)  Install ASR-1000K  Install FAN cable  JBOD Setting  ADD SYSTEM LEVEL TEST  Install FLB/USB Mylar  Add New Rear Cover (HPC-8316/8424) ...
  • Page 3 Install RPSU...
  • Page 4 Install PSU: RPSU  Default chassis PN: Chassis + PSU RSPU HPC-8212SA-R5A1E HPC-8224SA-R5A1E Etasis 550W HPC-8316SA-R5A1E HPC-8424SA-R5A1E Recommend using “SA” SKU only ...
  • Page 5 Install SAS cable...
  • Page 6 System Block Diagram – with JBOD Kit …. …. HPC-8212 SAS/SATA Drives Backplane Internal Mini-SAS HD cable x2...
  • Page 7 Install SAS Cable (for JBOD)  Two mSAS HD cables are included in ASR-1000K. no need to additionally order SAS cables  Both of mSAS HD cables need to be connected between BP & ASR-1000K Please note that “cabling method” since one cable ...
  • Page 8 Install SAS Cable (HPC-8212) CN 1(SAS_in) CN2(SAS_out) CN5(IN) CN6(OUT) Internal SAS cable x2...
  • Page 9 Install SAS Cable (HPC-8224) SAS_in1 SAS_in2 CN5(IN) CN6(OUT) Internal SAS cable x2...
  • Page 10 Install SAS Cable (HPC-8316) CN5(IN) CN6(OUT) Internal SAS cable x2...
  • Page 11 Install SAS Cable (HPC-8424) SAS-IN SAS_OUT CN5(IN) CN6(OUT) Internal SAS cable x2...
  • Page 12 Install Sponges (only HPC-8212/8224/8424)
  • Page 13 Sponges in 2U HPC-8212/8224 Sponges are placed on the accessory box...
  • Page 14 Sponges in 4U HPC-8424 Sponges are placed on the accessory box...
  • Page 15 Install ASR-1000K...
  • Page 16 ASR-1000K Installation (1/2) LAN1&2 HDD LED PWR LED Reset SW From FLB From FLB From FLB From FLB Power SW Mute connector From FLB from RPSU-550W PWM connectors to 4pcs FANs 24P connector from RPSU-550W TTL connector No USB cable No System information cable from RPSU-550W...
  • Page 17 ASR-1000K Installation (2/2) Power Reset Power LAN 1/2...
  • Page 18 Cabling in ASR-1000K HPC-8316 HPC-8212/8224/8424 (color may change)
  • Page 19 Cable Definition Power LED Power LED Version HDD + HDD - Current Blue Black Brown HPC-8316 Future Brown Black Blue HPC-8212 Current Black Black HPC-8224 HPC-8424 2 PIN 3 PIN connector connector...
  • Page 20 ASR-1000K Real Assembling (8212)
  • Page 21 Install FAN Cables...
  • Page 22 FAN cables for ASR-1000K  All of 4pcs PWM-connector cables must be directly installed in ASR-1000K CAN’T => use Y-type FAN cable...
  • Page 23 JBOD Setting...
  • Page 24 ASR-1000K DIP Switch SAS Driver Setup JBOD Configuration...
  • Page 25 Pin3 OFF Pin4 ON Pin4 ON Pin5 OFF Pin5 OFF Pin6 OFF Pin6 OFF SW6: BZ_SEL1: Pin1 OFF (2-3)Pin Pin2 OFF Pin3 ON JCASE1: Pin4 ON (1-2)Pin Pin5 OFF Pin6 OFF Advantech Confidential & Internal Use Only - 25 -...
  • Page 26 Check SW5/SW6/SW7 Setting  Default Setting is the best combination...
  • Page 27 JBOD Configuration HPC-8212 HPC-8316 Default All are off HPC-8224 HPC-8424...
  • Page 28 Install FLB/USB Mylar...
  • Page 29 FLB/USB Mylar  Remove original mylar by new JBOD mylar  JBOD mylars are placed on ASR-1000K box  HPC-8212/8224/8424  HPC-8316...
  • Page 30 Add New Rear Cover (only for HPC-8316/8424)
  • Page 31 Remove the Rear HDD Module Remove Rear 2.5”x2 HDD cage & 2pcs HDD Tray ...
  • Page 32 Add New Rear Cover Remove Rear 2.5”x2 HDD cage & 2pcs HDD Tray   After assembling...
  • Page 33 Install handles (only HPC-8316)
  • Page 34 Attach the Ears & Handles Ears & handles are placed on the accessory box...
  • Page 35 Install Slide Rail...
  • Page 36 Slide Rail on HPC-8000 Short Depth  Slide rails are default included in the package Model Slide Rail PN Remark HPC-8212 HPC-8212SA 22” 9680017208 HPC-8224 HPC-8224SA HPC-8316 26” 9680016858 HPC-8316SA HPC-8424 26” 9680017375 HPC-8424SA...
  • Page 37 Test Program...
  • Page 38 Test Environment Adaptec 7085H DT/Server mSAS HD to mSAS HD (PN: 1700025067-01)
  • Page 39 Front LED Check Green: RPSU OK Red: One fan failed Blinking: One PSU failed Red: Overheating Red: problem happened...
  • Page 40 Highlight  To make sure the quality of system-level assembling  Using Chiplink  HDDs loaded are required...
  • Page 41 跑burn-in時,按照上圖步驟,連接至expander IC PM8054 © 2013 Advantech Corporation. Page 41 2013/7/18 All rights reserved.
  • Page 42 按照上圖步驟,並請確認黃色框內的12~35的Device Present & 6Gb/s是否為綠 燈.(SATA device看6Gb/s欄位,SAS device看 12Gb/s欄位) © 2013 Advantech Corporation. Page 42 2013/7/18 All rights reserved.
  • Page 43 按照上圖步驟,並請確認12~35黃框內的的數值,不可以超過10.(30秒內) © 2013 Advantech Corporation. Page 43 2013/7/18 All rights reserved.
  • Page 44 Thank You...
