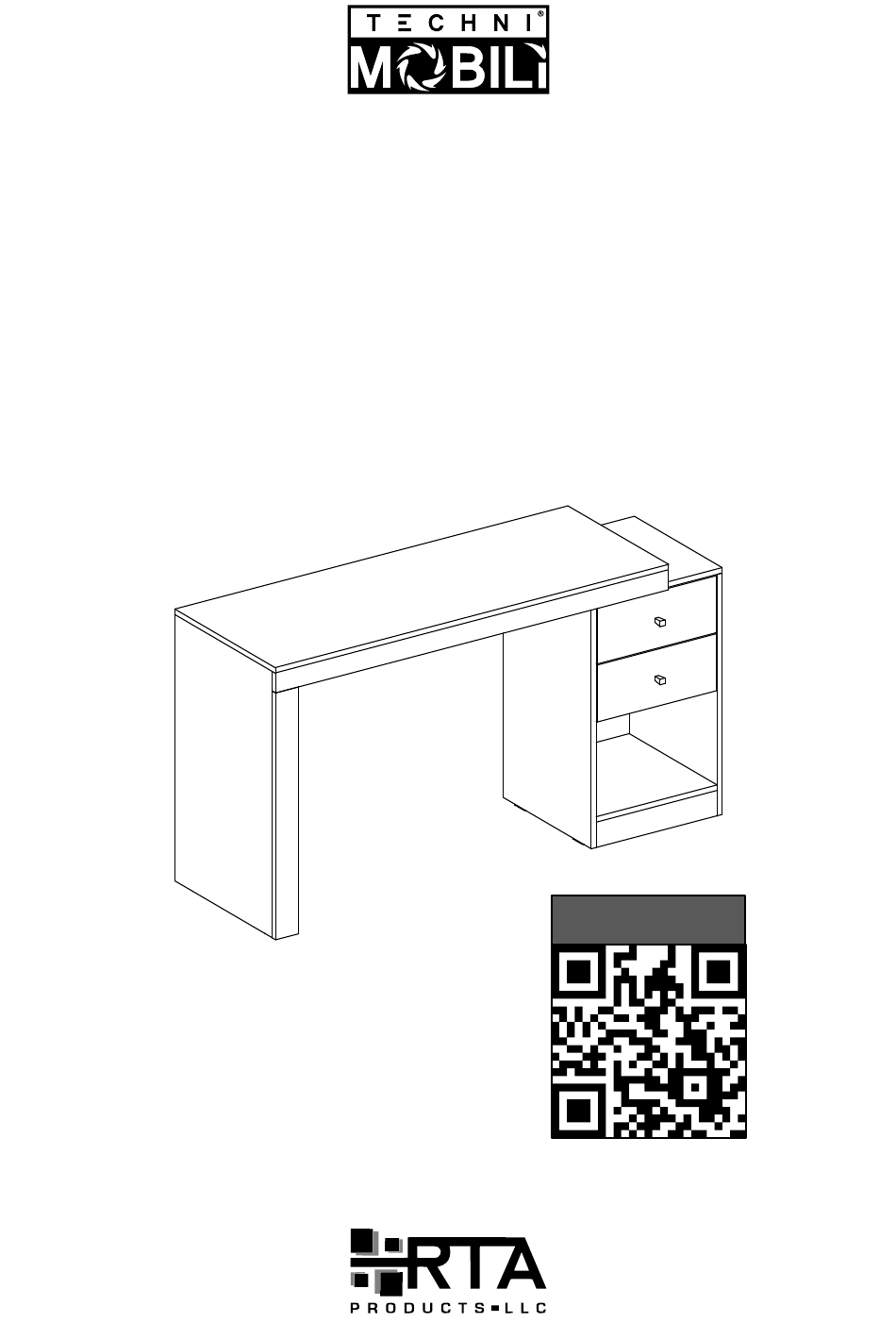

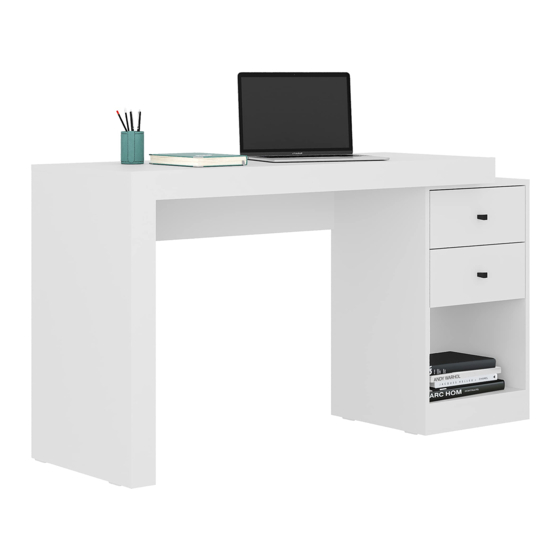

- Page 1 EXPANDABLE HOME OFFICE DESK MODEL RTA-988D ASSEMBLY INSTRUCTIONS Thank you for purchasing our product Scan QR to view full assembly video REV.CAR-7114-0223...
- Page 2 RTA-988D • The product assembles ONLY as shown in the front page, with the drawers on the LEFT and the storage door on the RIGHT. The sections are not interchangeable. • Do not discard this manual or any of the packaging material until the unit has been completely assembled.
-
Page 3: Main Parts List
RTA-988D The replacement parts service is limited to Do a quick inventory Missing, damaged and defective the 48 contiguous United States. parts can be replaced at no cost of all the parts and If you reside in AK, HI, PR, U.S. territories to you. - Page 4 RTA-988D MAIN PARTS LAYOUT (FOR REFERENCE)
-
Page 5: Hardware List
RTA-988D HARDWARE LIST SIZE ITEM SIZE ITEM PART PART Plastic M3.5x14 glide foot M5x30 M3.5x25 Bolt M8/M6x28mm 15x11 Plastic dowel Cam lock Large 2x22 metal bracket Nail Small Hole cover metal bracket sticker Flat Plastic handle metal bracket M6x30 Wooden dowel M3.5x40 "FLAT": 2 pcs per set, go inside the cabinet... - Page 6 RTA-988D THE ASSEMBLY STEPS START ON PAGE 7 CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.
- Page 7 RTA-988D BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • If during assembly you find an issue or need clarification, please contact our Customer Service for assistance.
-
Page 8: Assembly Steps
RTA-988D ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 Install the wooden dowels G into the indicated holes on panels: Hardware 2, 3, 4, 5, 6, 7, 8, 10, 11 and 13. M6x30 Wooden dowel... - Page 9 RTA-988D STEP 2 Install the bolts K into the indicated holes on panels 1, 2, 7, 8 and 9. Hardware Make sure the bolts enter as Make sure the bolts enter all the M5x30 straight as possible way through its threading Tools (NOT included)
- Page 10 RTA-988D STEP 3 Grab both sets of sliders P (total 8 pieces) and separate them into 2 groups Hardware according to their shape: 2 "flat" pieces The "flat" ones will be used on the next step. per set The "L" shaped won't be used until step 9, set them aside. 2 "L shape"...
- Page 11 RTA-988D P.10 P.10 STEP 5 Join the cabinet’s bottom panel 10 and back panel 13 to the right side panel 7, Hardware making sure the big holes for the cam locks go facing towards the inside and the bottom respectively. Insert the cam locks L into 10 and 13, and turn them to lock the pieces together Cam lock as shown and as explained in page 5.
- Page 12 RTA-988D P.11 P.11 STEP 7 Join the cabinet’s top panel 9 to the side panels 7 and 8. Hardware Insert the cam locks L into 7 and 8, and turn them to lock the pieces together as explained in page 5. M3.5x14 Attach the bottom plastic glides J to the bottom of panels 7 and 8 with screws A as shown.
- Page 13 RTA-988D P.12 P.12 STEP 9 For each of the drawers: Hardware Flip them upside-down (the groove on the front panel 12 will face up) and place on it the drawer bottom board 15, inserting one end into the groove of the front M3.5x14 panel.
- Page 14 RTA-988D P.13 P.13 STEP 10 Insert the drawers into the cabinet, starting with the bottom one, and with the front facing down at an angle. If the drawers don't seem to fit, review the assembly done in steps 4 and 9. The wheels from the drawer must slide in the middle of the...
- Page 15 RTA-988D P.14 P.14 STEP 12 Please note Message IMPORTANT: This step ■ Please note that neither panel 6 or panel 1 have predrilled holes or any other requires of markings for this step; that is the way ithey are manufactured. 2 persons ■...
- Page 16 RTA-988D P.15 P.15 STEP 14 Attach the side panel 5 to the tabletop 1. Hardware Secure panel 5 to panel 1 with the large bracket D and screws A. Secure the panel 5 to panels 3 and 6 with small brackets E and screws A. M3.5x14 Secure panels 3 and 4 with the flat bracket F and screws A.
- Page 17 RTA-988D P.16 P.16 ALL DONE! Give yourself a nice pat on the back, you did a great job! ENJOY YOUR NEW UNIT! Please take your time to read all warnings and warranty information in the following pages.
-
Page 18: Weight Limits
RTA-988D P.17 P.17 WEIGHT LIMITS 22 Lbs (10 Kg) 44 Lbs 13 Lbs (20 Kg) (6 Kg) 22 Lbs (10 Kg) WARNINGS Do not exceed the indicated weight limits. Do not expose the surfaces to direct sunlight or to extreme environmental conditions. Do not use solvents or abrasive materials to clean the unit. - Page 19 RTA Products LLC will replace any defective part, at its discretion, and without charge to the original purchaser other than the freight from the end consumer to RTA Products.
- Page 20 Your satisfaction is very important to us. Our Support agents can help you with any issues you may have, please feel free to contact us with any questions you have about our products, or to request replacement parts. FOR ADDITIONAL INFORMATION PLUS HELP OPTIONS VISIT: WWW.TECHNIMOBILI.COM CLICK ON SUPPORT TAB...
