Summary of Contents for RTA Products Techni Mobili RTA-9500TV

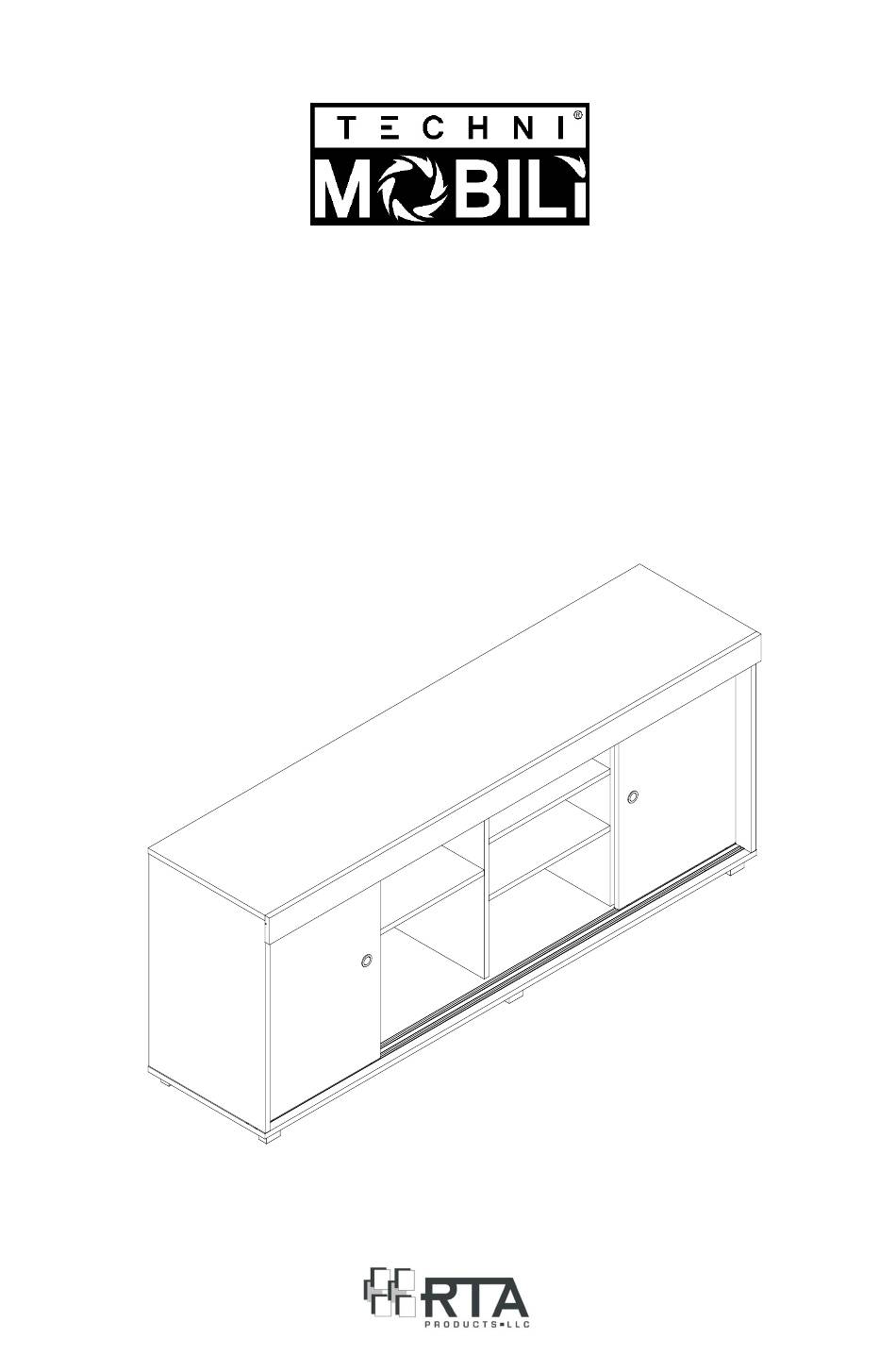

- Page 1 MODEL RTA-9500TV ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.082021-0...
- Page 2 RTA-9500TV • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-9500TV MAIN PARTS LIST Bottom panel Top panel Left panel Middle-Left panel Right panel Middle-Right panel Middle panel Shelves Sliding door Top front panel Back panel... - Page 4 RTA-9500TV MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M8x30 Bracket Dowels Plastic pin Bolts Covers Cam locks Feet ST3.5x14 Sliding ST4x50 tracks Grommet ST3.5x25 (Handle) Touch-up Nails chalk NOTE: You will need for the assembly a Phillips screwdriver and mallet/hammer (not included).
- Page 5 RTA-9500TV ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step;...
- Page 6 RTA-9500TV BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until hardware listed in the all pieces are assembly instructions.
-
Page 7: Assembly Steps
RTA-9500TV ASSEMBLY STEPS (Note: the unit will start assembling with its front facing down) STEP 1 Install brackets H into the groove of panel 10 with screws D. If there • are no pre-drilled holes or markings, just calculate a good distance Hardware: between them, but you must leave at least 1”... - Page 8 RTA-9500TV STEP 3 Install the wooden dowels A into the indicated holes on the profiles of panels 3, 4, 5, 6, 7 and 8. Hardware: M6x20 (NOT INCLUDED) STEP 4 • Join the panels 6 and 7 to two of the panels 8, then install the cam locks C and turn them to locks the pieces as explained in page 4.
- Page 9 RTA-9500TV STEP 5 • Join the panels 5 and 7 to the third panel 8, then install the cam locks C and turn them to locks the pieces as explained in page 4. Hardware: • Note: The panel 8 must have its smooth face towards the TOP. Cam lock (NOT INCLUDED) STEP 6...
- Page 10 RTA-9500TV STEP 7 Join panels 3 and 4 to panel 2, then install the cam locks C and turn them to lock the pieces as explained in page 4. Hardware: Cam lock Cam locks alignment (NOT INCLUDED) STEP 8 Install the plastic pins I and the grommets M into the doors 9. Please Hardware: note the orientation of the pins, as they will enter and glide into the grooves of panel 2 in the next step.
- Page 11 P.10 RTA-9500TV P.10 STEP 9 Join the doors 9 to panel 2 making sure that their plastic pins enter in the grooves, and that each door will go in its own groove. Each door must glide on its own groove. STEP 10 With the help of another person, assemble the bottom panel 1 to panels 3, 4, 5, 6 and 7 with screws E, but make sure that the plastic pins from...
- Page 12 P.11 RTA-9500TV P.11 STEP 11 Install the feet K to the bottom panel 1 with screws F. Hardware: ST3.5x25 (NOT INCLUDED) STEP 12 With the help of another person, place the back panels 11 over the unit, calculating that they go as aligned and centered as possible, and secure Hardware: them with nails G.
- Page 13 P.12 RTA-9500TV P.12 STEP 13 • With the help of another person, bring the unit upright. • With the help of another person, assemble the top front panel 10 to Hardware: the top panel 2 by securing the brackets underneath with screws D. ST3.5x14 (NOT INCLUDED) STEP 14...
- Page 14 P.13 RTA-9500TV P.13 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS = 21 KG - 46.29LB = 5 KG - 11.02LB = 4 KG - 8.81LB • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions. •...
- Page 15 RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 16 P.15 RTA-9500TV P.15 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
