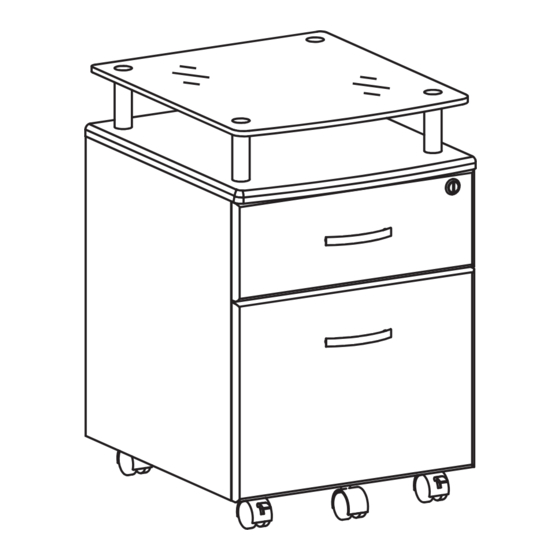

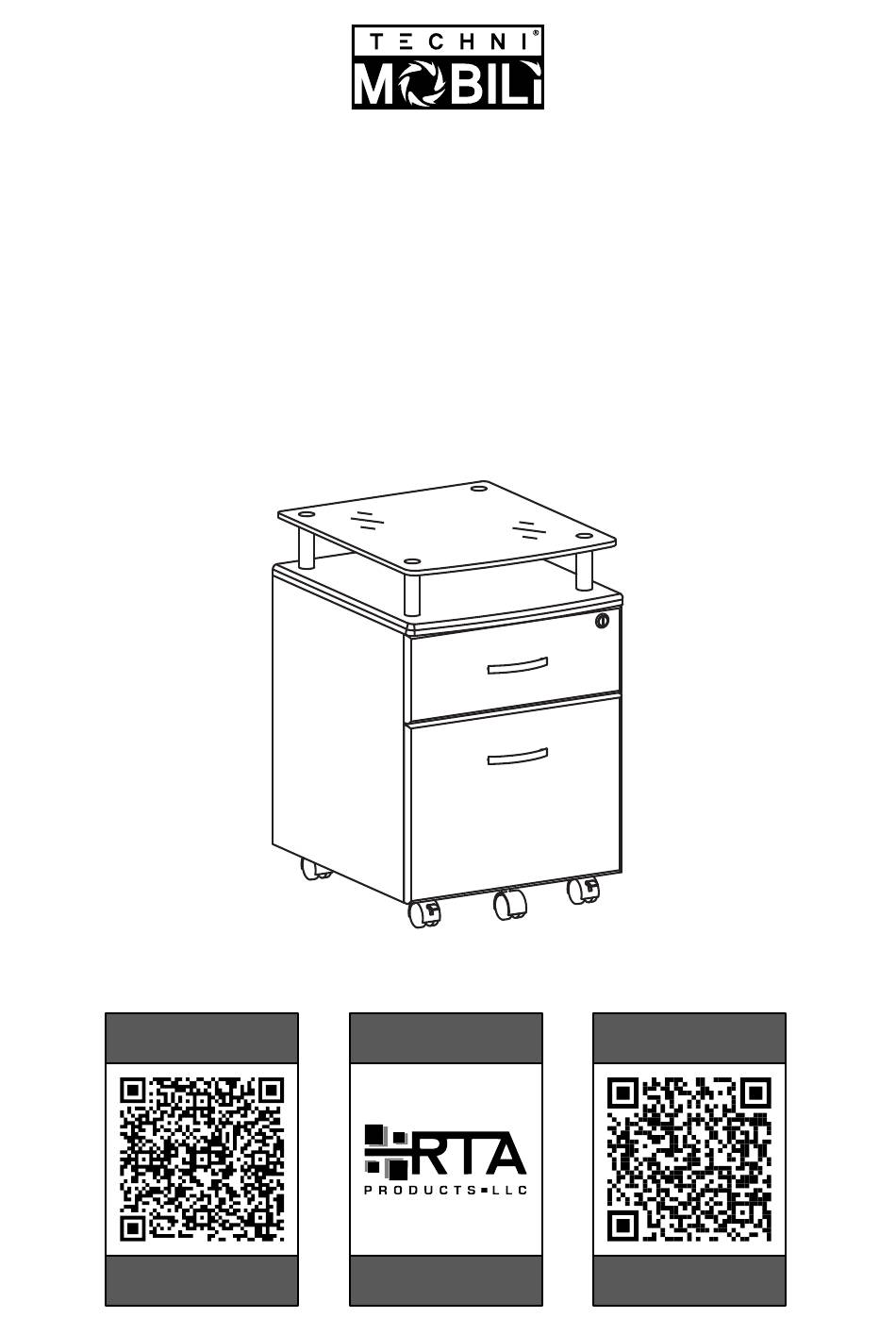

- Page 1 ROLLING FILE CABINET WITH GLASS TOP MODEL RTA-S06 ASSEMBLY INSTRUCTIONS REV.OL-7284-0423 Thank you for purchasing our product FRENCH ARABIC Scan QR to view the Scan QR to view the manual in French manual in Arabic...
- Page 2 & Replacement Parts within the hardware listed below. 48 Contiguous United States: RTA Products will replace the part free of charge, while the customer is responsible Please email us at: for shipping costs plus any International local taxes or duties.
- Page 3 RTA-S06 Right panel Left panel Bottom panel Back panel Top wood panel Bottom drawer L bracket Support tube Top glass panel and Nut front wheel Metal fitting A, Metal fitting B, Metal fitting C, Lock and keys, set of 2 pcs set of 2 pcs set of 2 pcs matching set...
- Page 4 RTA-S06 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Please read the assembly instructions throughly and follow step by step. 30mm • Make sure you understand which hardware will be used on each step. Using the wrong size of screw, bolt or pin might M6x30 strip the threads or cause damage to the...
- Page 5 RTA-S06 THE ASSEMBLY STEPS START ON NEXT PAGE CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.
-
Page 6: Assembly Steps
RTA-S06 ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 Attach the casters 3 to the bottom surface of panel 16 with screws E as Hardware: indicated: • The locking casters 3L go at the FRONT of the panel. •... - Page 7 RTA-S07 STEP 3 Assemble the locking system to the right panel 15 by attaching the fittings 23A with screws C as shown. Hardware: M3x15 (23E goes with rods at top) STEP 4 Grab all the 3 sets of sliders 12 (total 4 pieces) and separate them into 2 groups according to their shape: The "flat"...
- Page 8 RTA-S06 STEP 5 Assemble the “Flat” sliders 12 to the side panels 14 and 15 with screws C. Please note: Hardware: • The wheel is at the front, and faces down with 2 holes above it. • The sliders attach at the front on the 2nd hole. M3x15 •...
- Page 9 RTA-S06 STEP 7 Slide in the back panel 17 through the grooves of panels 14 and 15 and into the groove of panel 16. STEP 8 • Attach bolts A to the bottom surface of the top wood panel 18. •...
- Page 10 RTA-S06 STEP 10 Assemble the support tubes 21 to the top wood panel 18 with screws H Hardware: from underneath. M6x35 STEP 11 Attach the metal fitting 23B to the drawers right panels 2 and 8 respectively with screws C. Hardware: NOTE: The “U”...
- Page 11 RTA-S06 P.10 P.10 STEP 13 STEP 12 For the top drawer, Hardware: assemble side panels 1 Slide one of the bottom panels 5 through and 2 to the front panel 4 the grooves of the side panels and into the with bolts A.
- Page 12 RTA-S06 P.11 P.11 STEP 17 Flip the drawer upside-down and assemble the “L” sliders 12 with screws C, making sure the wheel goes towards the back, and that they don’t Hardware: protrude, otherwise, the drawer raises 1” and won’t fit in the cabinet. M3x15 When finished, the sliders look like this:...
- Page 13 RTA-S06 P.12 P.12 STEP 20 STEP 21 Assemble the back panel Slide the bottom panel 5 10 to the side panels 7 through the grooves of the side panels and Hardware: and 8 with screws B. into the front panel as shown. M4x35 STEP 22 Insert the file tubes 11...
- Page 14 RTA-S06 P.13 P.13 STEP 25 • Insert the drawers into the cabinet, starting with the bottom then the top. Insert at an angle with their fronts facing down, making sure the wheels from the drawer slide in the middle of the sliders inside the cabinet. If the top drawer does not enter, review the assembly done in steps 5, 17 and 24.
-
Page 15: Weight Limits
RTA-S06 P.14 P.14 WEIGHT LIMITS 22 Lbs (10 Kg) 22 Lbs (10 Kg) 22 Lbs (10 Kg) WARNINGS • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions. •... - Page 16 RTA Products LLC will replace any defective part, at its discretion, and without charge to the original purchaser other than the freight from the end consumer to RTA Products.
