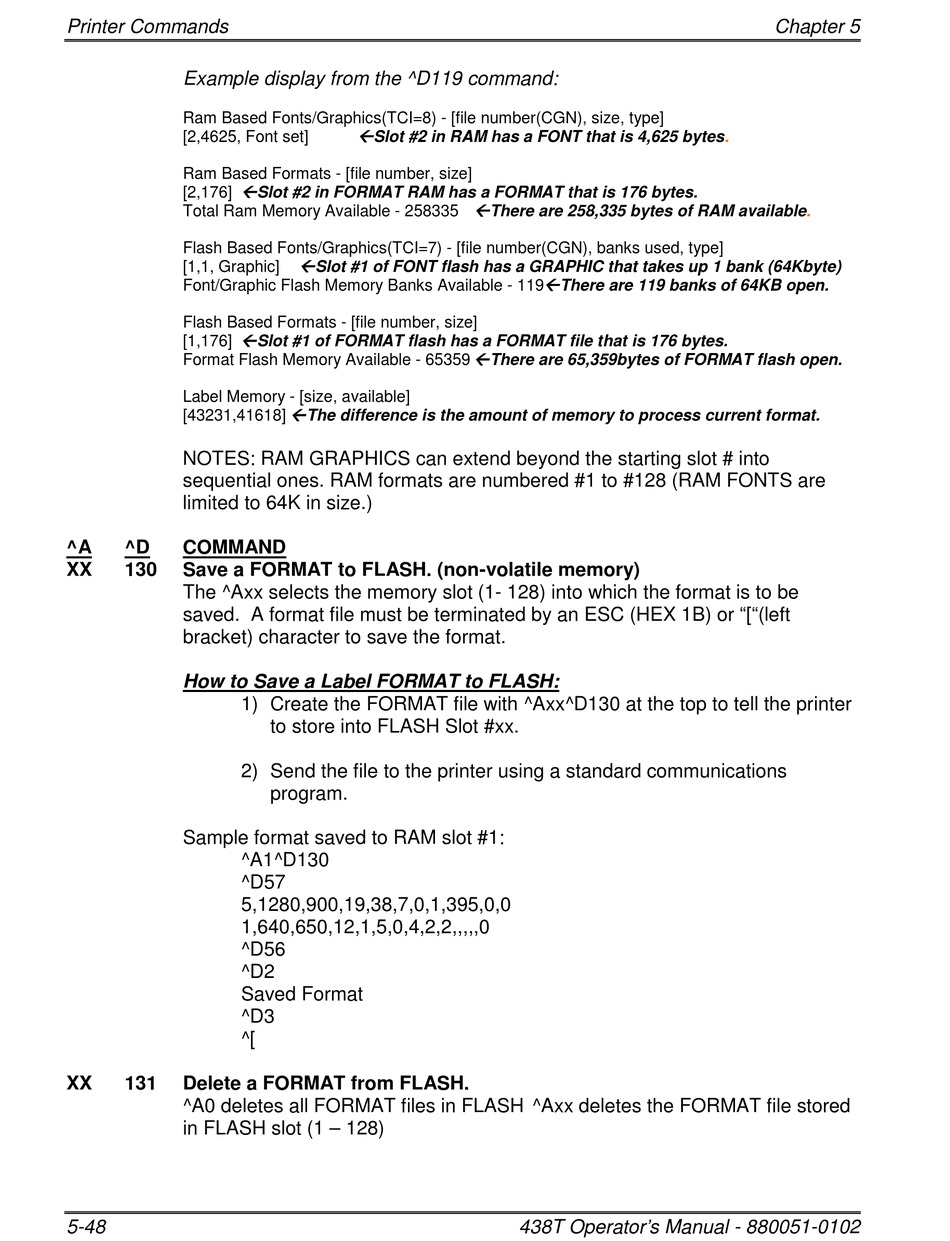

Microcom 438T Operator's Manual page 118

Printer Commands
Example display from the ^D119 command:
Ram Based Fonts/Graphics(TCI=8) - [file number(CGN), size, type]
[2,4625, Font set]
Ram Based Formats - [file number, size]
[2,176] ß Slot #2 in FORMAT RAM has a FORMAT that is 176 bytes.
Total Ram Memory Available - 258335 ß There are 258,335 bytes of RAM
Flash Based Fonts/Graphics(TCI=7) - [file number(CGN), banks used, type]
[1,1, Graphic]
Font/Graphic Flash Memory Banks Available - 119 ß There are 119 banks of 64KB open.
Flash Based Formats - [file number, size]
[1,176] ß Slot #1 of FORMAT flash has a FORMAT file that is 176 bytes.
Format Flash Memory Available - 65359 ß There are 65,359bytes of FORMAT flash open.
Label Memory - [size, available]
[43231,41618] ß The difference is the amount of memory to process current format.
NOTES: RAM GRAPHICS can extend beyond the starting slot # into
sequential ones. RAM formats are numbered #1 to #128 (RAM FONTS are
limited to 64K in size.)
^A ^D COMMAND
XX 130 Save a FORMAT to FLASH. (non-volatile memory)
The ^Axx selects the memory slot (1- 128) into which the format is to be
saved. A format file must be terminated by an ESC (HEX 1B) or "["(left
bracket) character to save the format.
How to Save a Label FORMAT to FLASH:
1) Create the FORMAT file with ^Axx^D130 at the top to tell the printer
2) Send the file to the printer using a standard communications
Sample format saved to RAM slot #1:
^A1^D130
^D57
5,1280,900,19,38,7,0,1,395,0,0
1,640,650,12,1,5,0,4,2,2,,,,,0
^D56
^D2
Saved Format
^D3
^[
XX 131 Delete a FORMAT from FLASH.
^A0 deletes all FORMAT files in FLASH ^Axx deletes the FORMAT file stored
in FLASH slot (1 – 128)
5-48
ß Slot #2 in RAM has a FONT that is 4,625
ß Slot #1 of FONT flash has a GRAPHIC that takes up 1 bank (64Kbyte)
to store into FLASH Slot #xx.
program.
bytes.
438T Operator's Manual - 880051-0102
Chapter 5
available.
