NITROBALL2

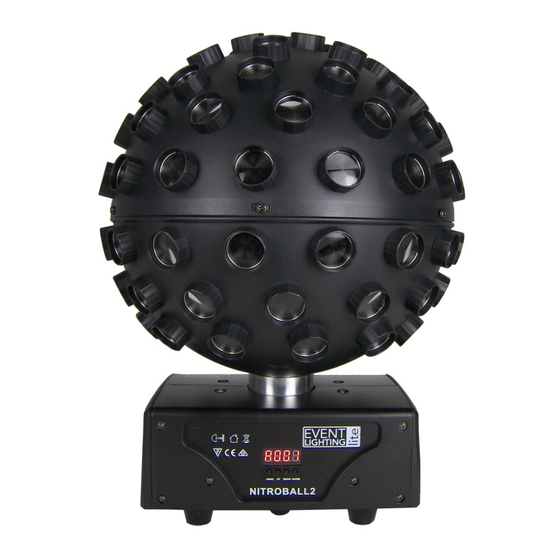

LED Rotating Ball with 5 x 15w HEX (6-in-1) LEDs.
USER MANUAL
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
V1.02
Advertisement
Table of Contents
Related Manuals for Event Lighting NITROBALL2
Summary of Contents for Event Lighting NITROBALL2
- Page 1 NITROBALL2 LED Rotating Ball with 5 x 15w HEX (6-in-1) LEDs. USER MANUAL This manual contains important information about the safe installation and use of this product Please read this instruction manual carefully before installing or operating Please keep these instructions in a safe place for future reference...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 2. Installation 3. Features 4. Product Overview 5. Menu Operation 6. DMX Table 7. DMX Address Setting 8. Error Messages 9. Rigging 10. Cleaning and Maintenance 11. Technical Data 12. Warranty... -
Page 3: Safety Instructions
Introduction Thank you for the purchase of your NITROBALL2 rotating LED Ball by Event Lighting Lite. Please read these instructions carefully to ensure the product is well look after and used correctly to avoid any potential problems. Please note that as part of our ongoing commitment to continuous improvement and product development, the specifications in this manual are subject to change without notice. -
Page 4: Installation
- Never carry the fixture directly from the cord. Carry by holding the base of the unit, and only move when unit is upright. - Avoid direct eye exposure to the light source while it is on. 2. Installation: Caution: For safe mounting of this product, please read the following carefully. - Use the included rapid lock clamp to attach to lighting stand, trussing or bar, together with safety chain. -
Page 5: Product Overview
4. Product Overview 1. LED Display 2. MODE/ESC button 3. UP button (UP） 4. DOWN button (DOWN） 5. Enter button (ENTER） 1. Signal input 2. Signal output 3. ON/OFF switch 4. Fuse 2A 5. Power In 6. Power Out... -
Page 6: Menu Operation
5. Menu operation A001 001-512 DMX mode AuTo Au0F AUTO mode OFF AuTo AUTO mode ON SOND SOUND mode rdoF rdoF Sound sensitivity ASTE Mast Master unit Alon Slave unit rdoF rdoF DISPLAY REVERSE OFF rdon DISPLAY REVERSE ON DEFAULT OFF dFoF dFoF dFon... - Page 7 0-255 Pan speed invalid during endless rotation, 226-235. Light OFF when （ scanning 236-255 max speed ， ： ） 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 0-255 Yellow dimming 0-255 UV dimming 0-255 0-15 No function 16-95 Synchronous strobe –...
-
Page 8: Dmx Address Setting
7. DMX Address Setting When being used in conjunction with a DMX controller, each fixture must be set a specific starting address. When receiving signal, fixture will receive channel control signals of this address from the DMX controller. For simplicity, the user can use the same address for multiple fixtures but this will result in each fixture providing exactly the same output and fixtures with the same DMX address cannot be individually controlled. -
Page 9: Error Messages
DMX-512 connection with DMX terminator A DMX terminator helps to reduce ‘noise’ on the DMX chain, and makes the light respond to control more accurately. It should be plugged in to the last fixture in any chain. For Terminator connections please see below: 8. -
Page 10: Cleaning And Maintenance
11. Technical Data Input Voltage: AC100-240V 50/60Hz LED: TX-BGRWIY10B120-001, 15W/LED Power Consumption: 55w SPFC power factor correction power supply, PF>0.99, efficiency > 90% Net Weight: 3.65Kg 12. Warranty Please refer to your local dealer or contact Event Lighting...
