DARKSTAR
20 x 3W RGBW LED fat beams + 12 x 1W LED strobe effect light with IR remote & DMX
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting DARKSTAR
Summary of Contents for Event Lighting DARKSTAR
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 www.event-lighting.com.au CONTENTS Introduction, safety instructions, product Installation Page 2 Overview, dimensions, control board operation Page 3 Menu Map, IR remote operation Page 4 DMX chart Page 5 - 8 Technical specifications, warranty Page 8...
-
Page 3: Safety Instructions

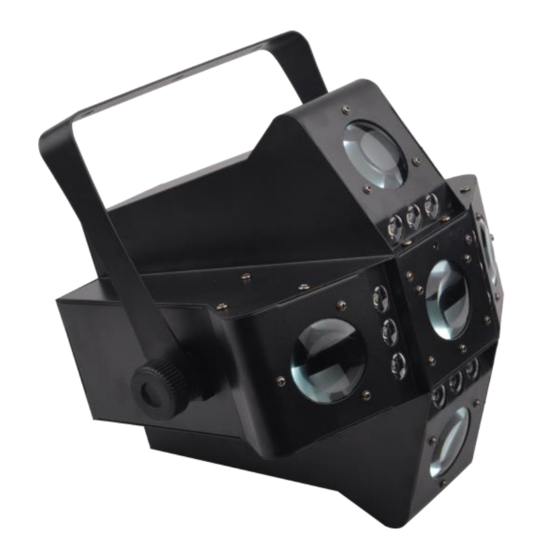

The DARKSTAR will blow you away with the versatile output available from this awesome new effect. With fat multi-coloured beams firing out of 5 lenses and a blinding white strobe effect, the DARKSTAR brings a dynamic and exciting atmosphere to any party or special event. The power on offer is incredible with a massive selection of 34 auto and sound active shows, or run via DMX. -
Page 4: Control Panel Operation
www.event-lighting.com.au Overview Dimensions Control Panel Operation MENU button: select an operation mode or return to previous screen UP button: move up the menu or select higher value DOWN button: move down the menu or select lower value ENTER button: change or activate menu options DMX signal LED indicator: This LED will flash when the DMX is connected. -
Page 5: Ir Remote Control Operation
www.event-lighting.com.au Menu Map Press the MENU button to select an operation mode or return to previous menu. Use UP and DOWN button to navigate the menu. Press the ENTER button to change or activate menu options. Select DMX address Select DMX channel mode (2 / 4 / 8) Select auto run program (18 auto run programs) Select auto run program speed Select sound active program (16 sound active programs) -
Page 6: Dmx Chart
www.event-lighting.com.au DMX Chart 2 Channels Mode Value Function Value Function 000-010 No function Sound active mode 0 (The fixture will cycle through programs 1-16, running 011-015 each program through 1 cycle then moving to the next program.) 016-022 Sound active mode 1 023-029 Sound active mode 2 030-036... - Page 7 www.event-lighting.com.au 4 Channels Mode Chanel Function Value Detail Function Ch 1 Master dimmer 000 - 255 Master dimmer for all LED from 0% to 100% 000 - 010 Black out Ch 2 Strobe selection effect 011 - 249 Strobe ( slow to fast 1 - 20Hz ) 250 - 255 Strobe off 000 - 015...
- Page 8 www.event-lighting.com.au 000 - 015 No function 016 - 031 032 - 047 Green 048 - 063 Blue 064 - 079 White beam selection Ch 4 080 - 095 Red / Green colour effect setting 096 - 111 Red / Blue 112 - 127 Red / White 128 - 142...
-
Page 9: Technical Specifications
-Operation modes: DMX, 18 sets of auto show, 16 sets of sound active show, master/slave mode, IR remote control -Fuse: `F2A 250V -Net weight: 4.6kg -Overall size: 295 x 312 x 313 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
